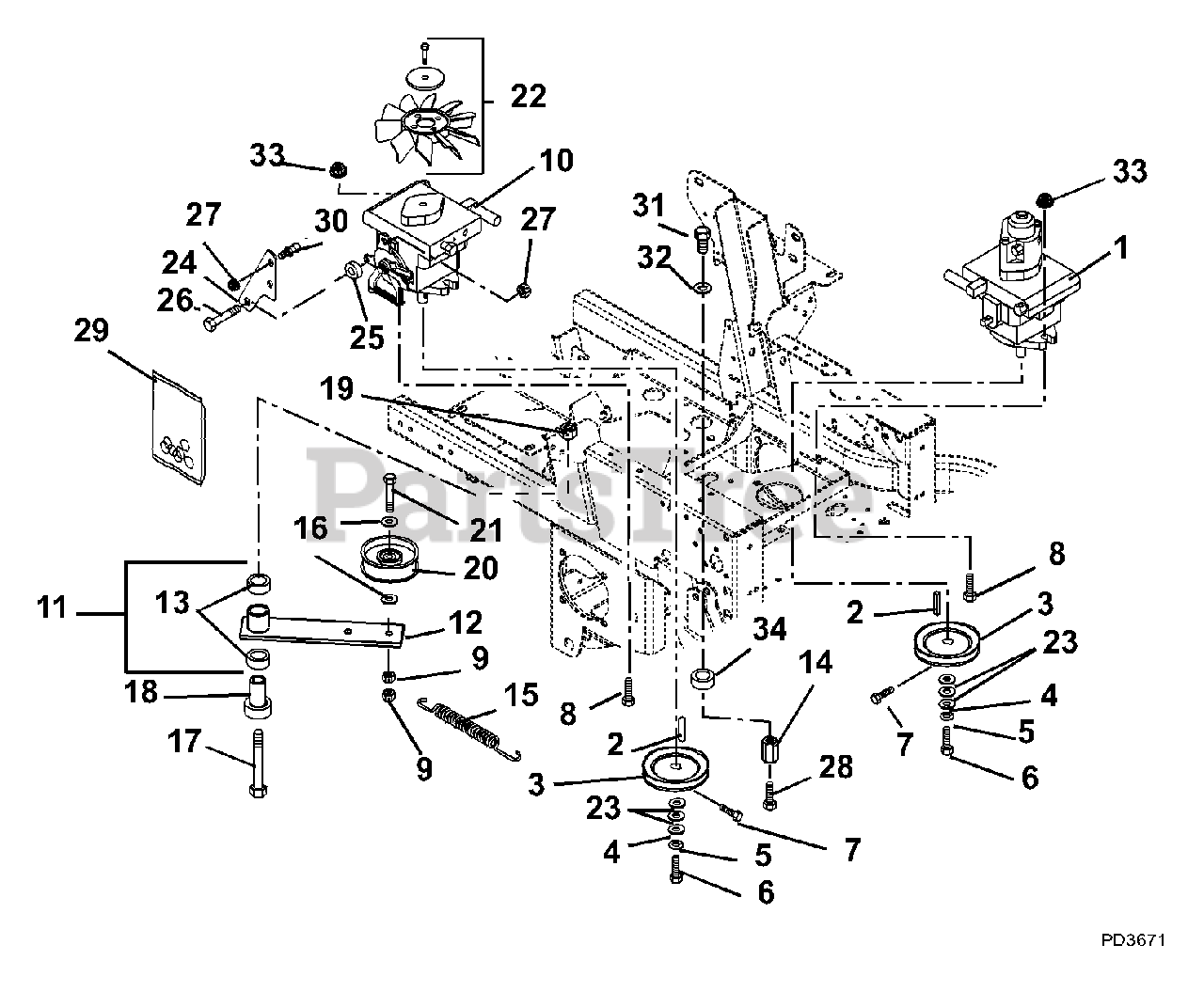

991010 (PM 148 XDZ) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Hydrostatic Pumps And Idlers Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Hydrostatic Pumps And Idlers Parts Diagram

  • Title

1

Gravely 00298600

PUMP,10CC DISP,W/AUX,W/REV RTN

Note: (991021)

$

$

Not available

Gravely 09297600

PUMP, HYD BDP-10A (LH)

Note: (991015, 016, 017, 018, 019, 020)

$982.99

$

Usually ships in 4-12 days

0

Gravely 00438600

PUMP, HYD PJ-SERIES 12CC (FAN)

Note: (991009, 010, 011, 013)

$989.99

$

Usually ships in 4-12 days

0

2

Gravely 050995

KEY-STR 5MMX25MMX5MM
(Superseded to 06607500)

$3.99

$

In Stock, Qty 12

0

3

Gravely 07300016

SHEAVE, PUMP .592 X 5.831

Note: (99109, 010, 011, 013)

$60.99

$

In Stock, only 2 left!

0

Gravely 051138

SHEAVE, PUMP .592 X 4.345
(Superseded to 07318900)

Note: (991015, 016, 017, 018, 019, 020, 021)

$52.99

$

In Stock, Qty 10

0

4

Gravely 416904

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$2.49

$

In Stock, Qty 10

0

7

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

8

Gravely 06224500

BLT-RDHDSQNK .44-14X1.50 G5YZ

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09285200

PUMP, BDP-10A-441 (THRU SHAFT)

Note: (991015, 016, 017, 018, 019, 020, 021)

$1068.99

$

Usually ships in 4-12 days

0

Gravely 00438500

PUMP, HYD PJ-SERIES 12CC (FAN)

Note: (991009, 010, 011, 013)

$989.99

$

Usually ships in 4-12 days

0

11

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 12 & 13)

$102.99

$

Usually ships in 4-12 days

0

12

Gravely 09217000

WMT, IDLER ARM GROUND DRIVE

$114.99

$

Usually ships in 4-12 days

0

13

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

14

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

15

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

16

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

17

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

18

Gravely 07000031

BEARING, PEDESTAL

$84.99

$

In Stock, Qty 10

0

19

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

21

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 09274900

FAN, COOLING

Note: (991015, 016, 017, 018, 019, 020, 021)

$52.99

$

In Stock, Qty 6

0

Gravely 09274900

FAN, COOLING

Note: (991009, 010, 011, 013)

$52.99

$

In Stock, Qty 6

0

23

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 09282900

BRACKET, RTN/DAMPER

$7.99

$

Usually ships in 4-12 days

0

25

Gravely 02513500

SPACER .344X1.000X.375

$

$

Not available

26

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

27

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

29

Gravely 59203600

KIT, PUMP SEAL

Note: (One kit required for each pump)

$79.99

$

Usually ships in 4-12 days

0

30

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

31

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$6.49

$

Usually ships in 4-12 days

0

34

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0
