991016 (PM 148M) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

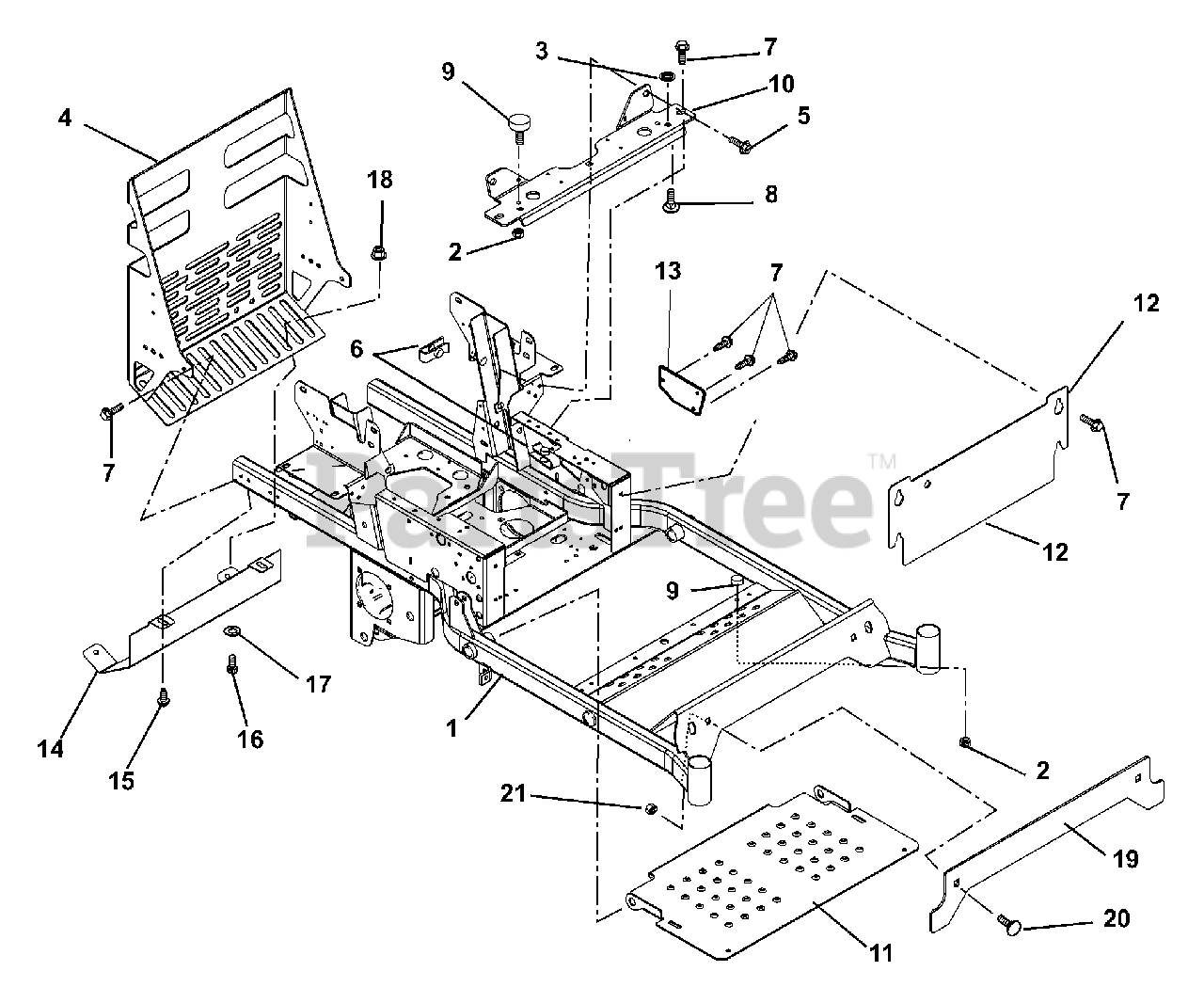

Frame Parts Diagram

  • Title

1

Gravely 00387451

WMT, 44",48",52" IZ FRAME

Note: (991015, 016, 017, 018, 019, 020, 021)

$

$

Not available

Gravely 00442751

WMT, 60" IZ FRAME

Note: (991013, 019, 020)

$

$

Not available

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06514900

NUT-PUSH .312

$1.49

$

In Stock, Qty 9

0

4

Gravely 00271751

WMT, BUMPER W/ HEAT SHIELD

$579.99

$

Usually ships in 4-12 days

0

5

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 07053300

NUT-RTNR .375-16X.37

$4.99

$

In Stock, only 2 left!

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (991021)

$2.49

$

In Stock, Qty 20+

0

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 3 left!

0

10

Gravely 00433251

SUPPORT, SEAT CROSS

$

$

Not available

11

Gravely 00385600

PANEL, INSPECTION

$

$

Not available

12

Gravely 09297253

PANEL, ACCESS

$59.99

$

Usually ships in 4-12 days

0

13

Gravely 09298551

COVER, VALVE

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$

$

Not available

14

Gravely 00462451

SHIELD - HEAT - IZ PROD

$

$

Not available

15

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 12

0

17

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 00462051

PLATE, COUNTERWEIGHT

Note: (991009, 010, 011, 015, 016, 017, 018, 021)

$

$

Not available

20

Gravely 06224800

BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

Note: (991009, 010, 011, 015, 016, 017, 018, 021)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

Note: (991009, 010, 011, 015, 016, 017, 018, 021)

$2.99

$

In Stock, Qty 20+

0
