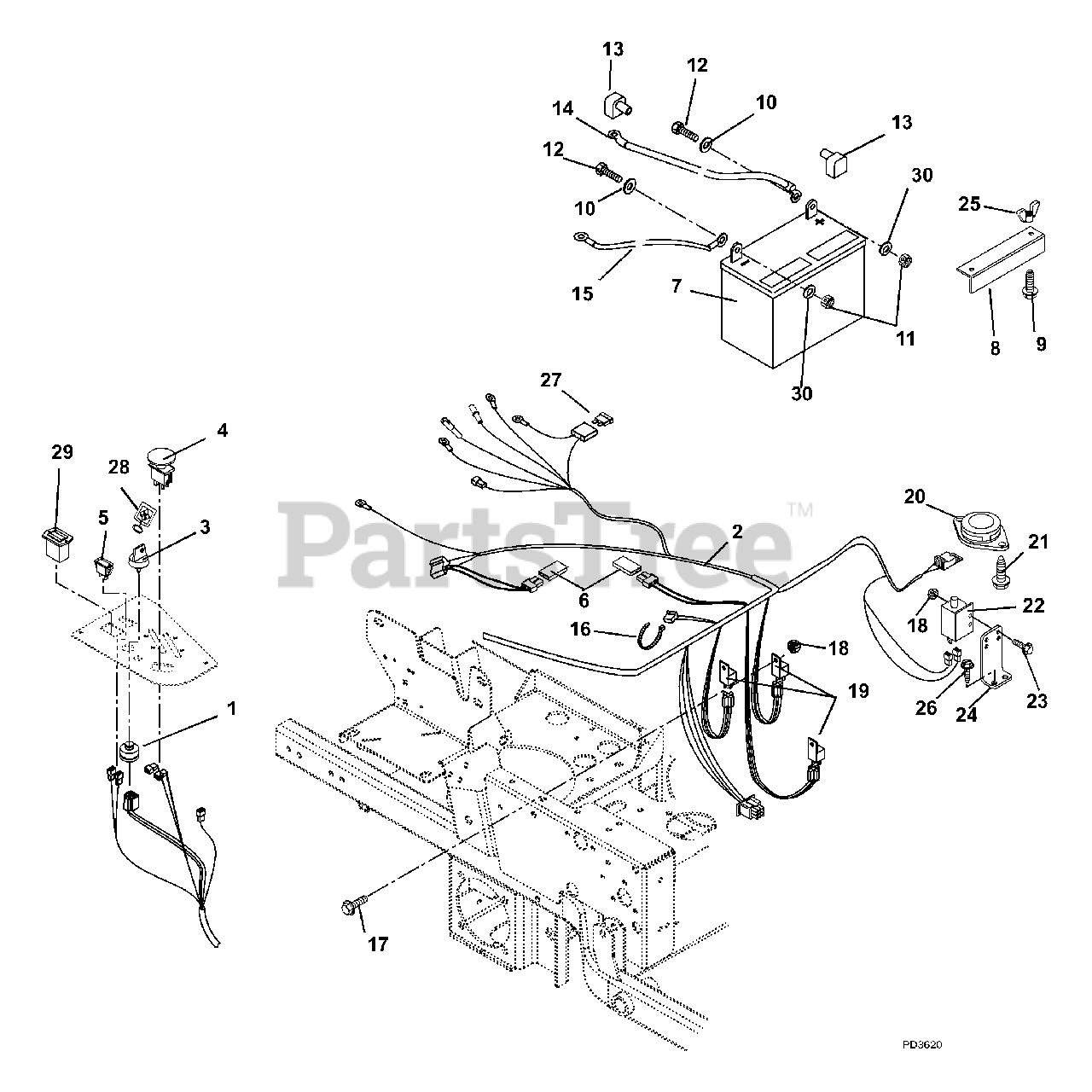

991017 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$50.99

$

In Stock, Qty 20+

0

2

Gravely 03286600

HARNESS - IZ VERTICAL A/C

$222.99

$

In Stock, only 1 left!

0

3

Gravely 09287000

KEY, W/ SHIELD

$10.99

$

In Stock, Qty 20+

0

4

Gravely 01545600

SWITCH, CLUTCH

$28.99

$

In Stock, Qty 20+

0

5

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$8.49

$

In Stock, Qty 7

0

6

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$14.99

$

In Stock, Qty 20+

0

7

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

8

Gravely 015258

HOLD DOWN
(Superseded to 03494051)

$12.99

$

In Stock, only 1 left!

0

9

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$7.49

$

In Stock, Qty 8

0

10

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

14

Gravely 03288400

CABLE-POSITIVE BATTERY 26.00"

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 042130

CABLE-NEGATIVE BATTERY 24.00"
(Superseded to 03288100)

$21.99

$

In Stock, only 2 left!

0

16

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$27.99

$

In Stock, Qty 20+

0

20

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

Note: (991009, 010, 011, 013)

$17.99

$

In Stock, only 2 left!

0

Gravely 03654200

SWITCH- SEAT

Note: (991015, 016, 017, 018, 019, 020, 021)

$15.99

$

In Stock, Qty 5

0

21

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

Note: (991009, 010, 011, 013)

$3.49

$

In Stock, only 3 left!

0

22

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$18.99

$

In Stock, Qty 20+

0

23

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, Qty 5

0

24

Gravely 00269351

BRAKE SWITCH MOUNT - BLACK

$

$

Not available

25

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$6.49

$

In Stock, Qty 20+

0

26

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 00457400

KEY CHAIN

$

$

Not available

29

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

30

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0
