991018 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Deck Lift Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

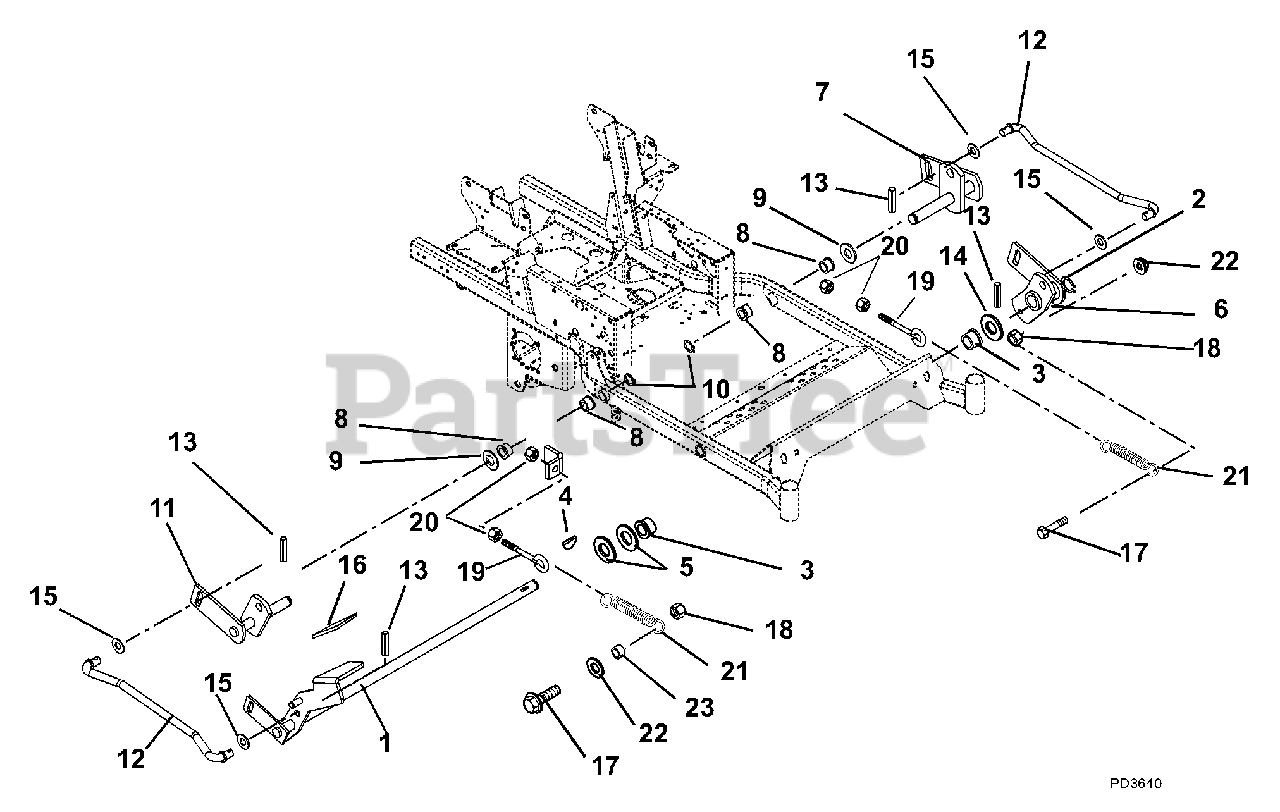

Deck Lift Parts Diagram

  • Title

1

Gravely 00456000

Weldment, Lift Arm

Note: (991021)

$268.99

$

Usually ships in 4-12 days

0

1

Gravely 00440900

Weldment, Lift Arm

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$

$

Not available

2

Gravely 050203

Ring, Retaining External 1.00 x .078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 15

0

3

Gravely 05500034

Bushing, Flange

$7.49

$

In Stock, Qty 7

0

4

Gravely 124553

Key, Woodruff .25 x 1.00
(Superseded to 06608900)

$3.99

$

In Stock, Qty 15

0

5

Gravely 06443000

Washer, Flat Steel 1.063 x 2.00 x .134
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 00441000

Lift Arm - Front

$101.99

$

Usually ships in 4-12 days

0

7

Gravely 00481600

Weldment, Left Hand Rear Lift Arm (100)

Note: (100)

$67.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

Bushing, Flange Nylon .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$5.49

$

In Stock, Qty 20+

0

9

Gravely 036407

Washer, Hardened Steel .758 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 026300

Ring, Retaining External .689 x .077
(Superseded to 05714600)

$2.99

$

In Stock, Qty 5

0

11

Gravely 00481500

Weldment, Right Hand Rear Lift Arm (100)

Note: (100)

$85.99

$

Usually ships in 4-12 days

0

12

Gravely 00164700

Rod, Lift Assist
(Superseded to 04063000)

$42.99

$

Usually ships in 4-12 days

0

13

Gravely 05800001

Pin, Roll .25 x 1.25 Stainless Steel

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$5.49

$

In Stock, Qty 11

0

15

Gravely 06445100

Washer-Flat-Steel .630 x 1.250 x .062

$2.99

$

In Stock, only 3 left!

0

16

Gravely 00270100

Grip, Pedal

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$3.99

$

In Stock, Qty 5

0

17

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06537200

Nut, Locking Jam Center .375-16
(Superseded to 06500914)

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07030000

Eye-Bolt, .375-16 x 2.50

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$8.49

$

In Stock, Qty 10

0

20

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 035913

Spring, Tension .162 x 1.25 x .25
(Superseded to 08319000)

Note: (991009, 010, 011, 013, 015, 016, 017, 018, 019, 020)

$34.99

$

In Stock, Qty 14

0

22

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 039145

Spacer .377 x .624 x .235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0
