991018 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Mounting Arms, Link Chains, & Deck Bumpers Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

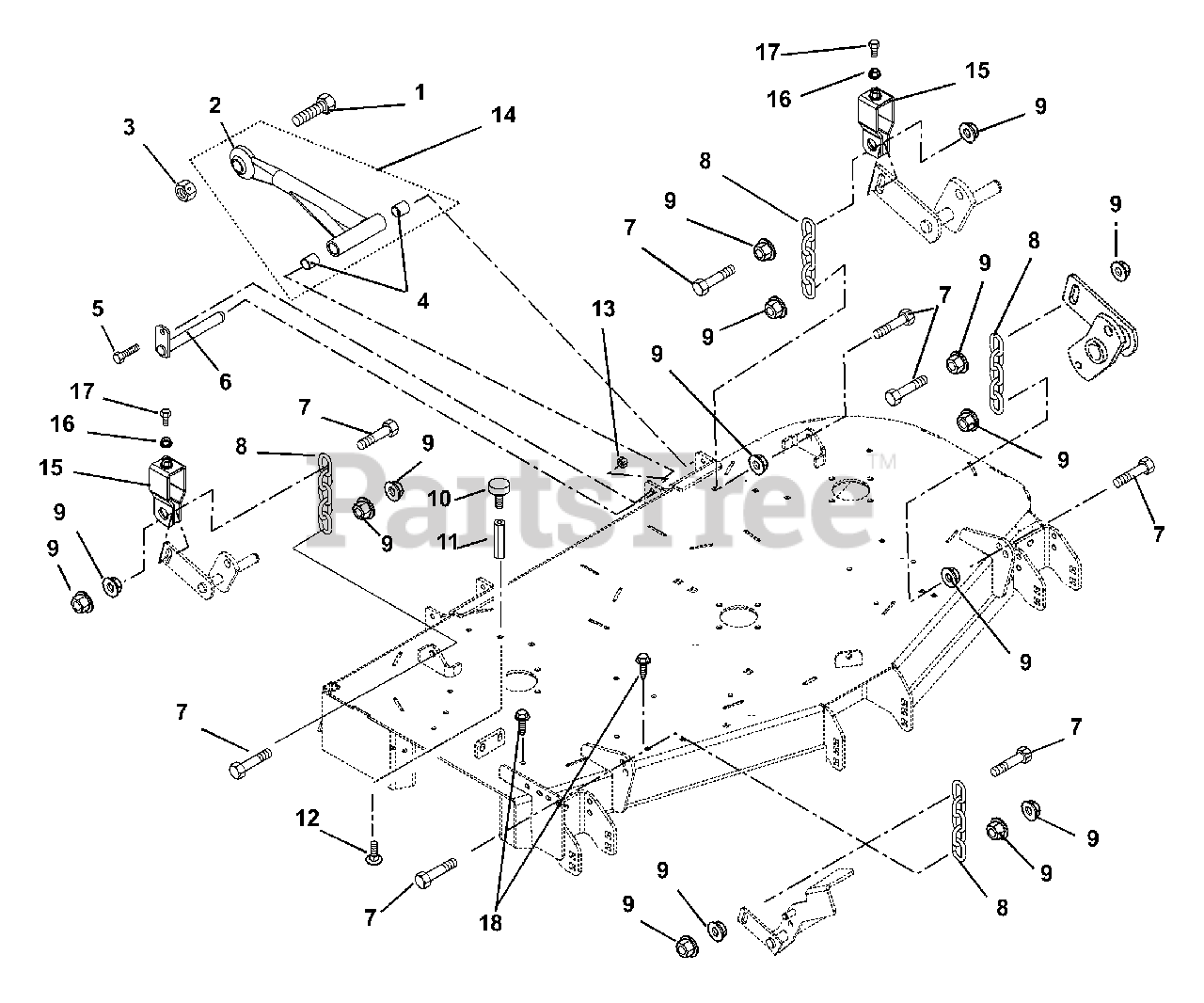

Mounting Arms, Link Chains, & Deck Bumpers Parts Diagram

  • Title

1

Gravely 05969500

Bolt, Hex .875-9 x 2.75 Grade 5

$8.49

$

In Stock, only 2 left!

0

2

Gravely 00439051

Mower Mounting Arm Weldment

$158.99

$

Usually ships in 4-12 days

0

3

Gravely 06539700

Nut, Locking-Center .875-9

$6.49

$

In Stock, Qty 9

0

4

Gravely 05435900

Bearing, .75 x .875 x 1.00

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

6

Gravely 09238900

Weldment, Mower Mounting Pin

$63.99

$

In Stock, Qty 6

0

7

Gravely 05900022

Bolt, Hex M12-1.75 x 50 Grade 5

$3.99

$

In Stock, only 1 left!

0

8

Gravely 09284700

Chain, Link

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 06500003

Nut, Spin Lock-Flange M12-1.75

$2.99

$

In Stock, only 1 left!

0

10

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

11

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$29.99

$

In Stock, Qty 12

0

12

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

Note: Loctite with Epoxy Patch

$4.99

$

In Stock, Qty 7

0

13

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 00439200

Assembly, Mower Mounting Arm

Note: (Includes item # 2 and item # 4)

$159.99

$

Usually ships in 4-12 days

0

15

Gravely 00442800

Bracket, Deck Leveling

$9.99

$

In Stock, only 2 left!

0

16

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05970900

Bolt, Hex .31-18 x 1.75 Full Thread

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread
(Superseded to 07400126)

Note: (991011, 013, 017, 018, 019, 020)

$1.99

$

In Stock, Qty 18

0

18

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head Thread
(Superseded to 07400126)

Note: (991009, 010, 015, 016, 021)

$1.99

$

In Stock, Qty 18

0
