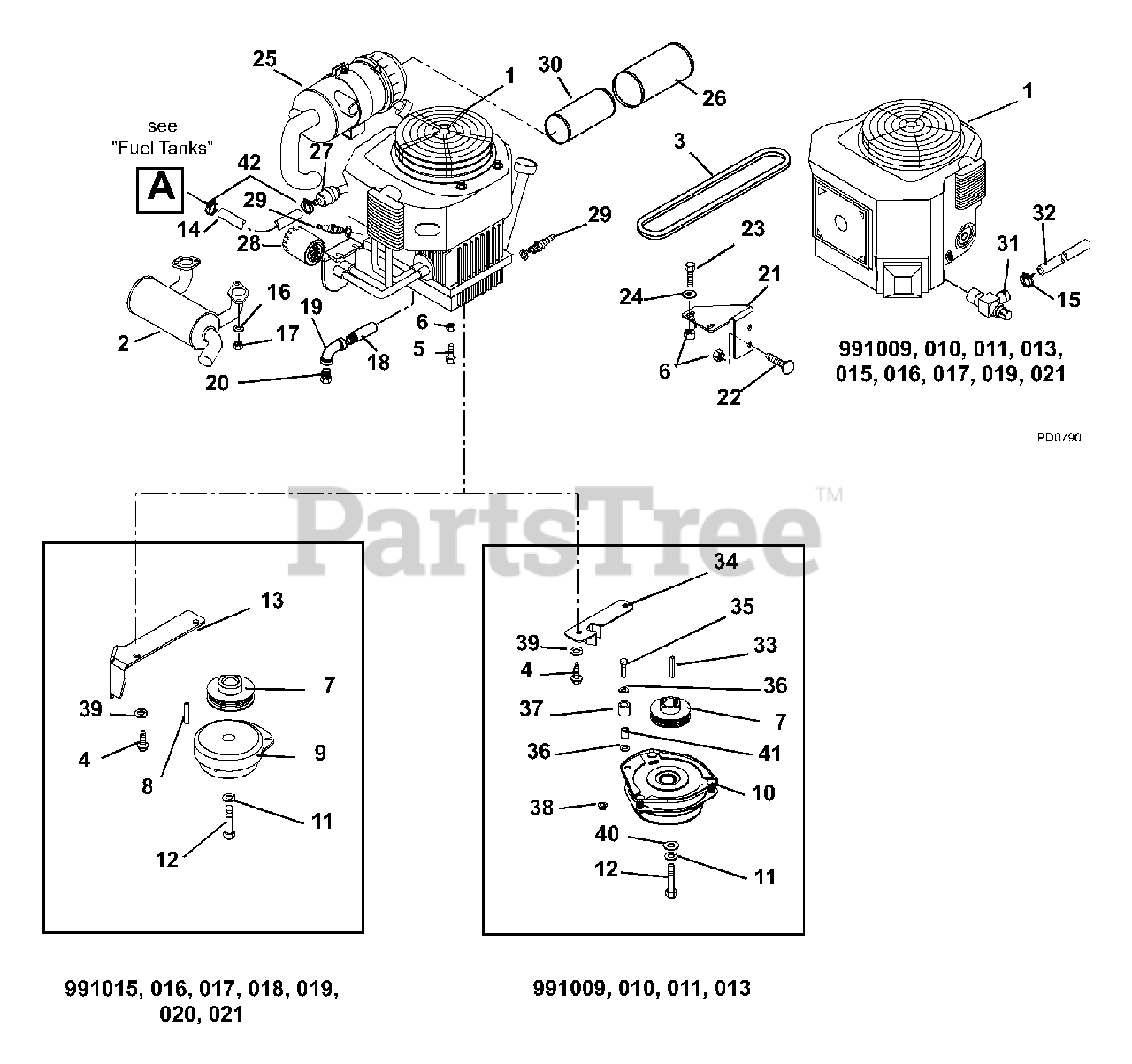

991020 (PM 160M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08270000

Engine, Kohler, 25hp

Note: (991018, 020)

$

$

Not available

1

Gravely 08268300

Engine, Kawasaki 25hp

Note: (991013)

$

$

Not available

1

Gravely 08268000

Engine, Kawasaki 21HP

Note: (991009, 010, 015, 016, 021)

$

$

Not available

1

Gravely 08268900

Engine, Kawasaki 23HP

Note: (991011, 017, 019)

$

$

Not available

2

Gravely 09294800

Muffler, Kohler
(Superseded to 00470400)

Note: (991018, 020)

$218.99

$

In Stock, only 3 left!

0

2

Gravely 09281600

Muffler, Kawasaki

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$298.99

$

Usually ships in 4-12 days

0

3

Gravely 07218000

V-Belt HA 52 x .535 G48667
(Superseded to 07200428)

Note: (991015, 016, 017, 018, 019, 020, 021)

$53.99

$

In Stock, Qty 16

0

3

Gravely 07243300

V-Belt HA 52 x .535 G48667
(Superseded to 07200610)

Note: (991009, 010, 011, 013)

$47.99

$

In Stock, Qty 8

0

4

Gravely 07000023

Bolt, 38-16X1 6-LOBE PH TRX YZ

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$3.99

$

In Stock, Qty 7

0

4

Gravely 07000023

Bolt, 38-16X1 6-LOBE PH TRX YZ

Note: (991018, 020)

$3.99

$

In Stock, Qty 7

0

5

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$1.99

$

In Stock, Qty 6

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (991018, 020)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07327700

Pulley-V 4.00 x 1.125 with Key 1.42 Height

Note: (991015, 016, 017, 018, 019, 020, 021)

$76.99

$

In Stock, Qty 7

0

7

Gravely 07300018

Sheave, Engine 4.581 x 1.127 with Key

Note: (991009, 010, 011, 013)

$

$

Not available

8

Gravely 039160

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035
(Superseded to 06602700)

$3.99

$

In Stock, Qty 10

0

9

Gravely 00462500

Clutch, Electric

Note: (991015, 016, 017, 018, 019, 020, 021)

$619.99

$

Usually ships in 4-12 days

0

10

Gravely 00447100

Clutch, Electric

Note: (991009, 010, 011, 013)

$730.99

$

In Stock, only 1 left!

0

11

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 05953100

Bolt, Hex .44-20 x 2.25 Grade 5

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00481851

Clutch Stop
(Superseded to 01056451)

Note: (015, 016, 017, 018, 019, 020, 021)

$70.99

$

In Stock, only 2 left!

0

14

Gravely 021134

Gas Line, Bulk .25 ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06923500

Hose, Clamp .88

$2.49

$

In Stock, Qty 6

0

16

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

Note: (Included with item 1)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06538600

Nut, Hex M8-1.25

Note: (Included with item 1)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 02749600

Nipple

Note: (991018, 020)

$9.99

$

Usually ships in 4-12 days

0

19

Gravely 07023500

Elbow .375-18

Note: (991018, 020)

$

$

Not available

20

Gravely 00113800

Pipe Plug

Note: (991018, 020)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09295751

Bracket, Oil Filter Mounting-Kohler

Note: (991018, 020)

$

$

Not available

22

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

Note: (991018, 020)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

Note: (991018, 020)

$1.99

$

In Stock, only 4 left!

0

24

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

Note: (991018, 020)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

26

Gravely 21537000

Filter, Outer Element

$28.99

$

In Stock, Qty 20+

0

27

Gravely 21539500

Fuel Filter, Kohler

Note: (991018, 020)

$12.99

$

In Stock, Qty 20+

0

27

Gravely 21410800

Fuel Filter, Kawasaki
(Superseded to 21541500)

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$8.99

$

In Stock, Qty 20+

0

28

Gravely 21397200

Oil Filter, Kohler
(Superseded to 20715100)

Note: (991018, 020)

$21.99

$

In Stock, Qty 20+

0

28

Gravely 21535800

Oil Filter, Kawasaki
(Superseded to 49065-0724)

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$18.99

$

In Stock, Qty 20+

0

29

Gravely 21525900

Spark Plug, Kohler
(Superseded to 21541700)

Note: (991018, 020)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 21536100

Spark Plug, Kawasaki

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 21536900

Filter, Inner Element

$29.99

$

In Stock, only 4 left!

0

31

Gravely 00429000

Drain, 1/2" Oil

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$40.99

$

Usually ships in 4-12 days

0

32

Gravely 01590900

Tube, Oil Drain

Note: (991009, 010, 011, 013, 015, 016, 017, 019, 021)

$6.49

$

Usually ships in 4-12 days

0

33

Gravely 06600003

Key-Square .25 x 3.50 x .25 SAE

Note: (991009,010,011,013)

$5.49

$

In Stock, only 3 left!

0

34

Gravely 00459351

Anchor Clutch
(Superseded to 01056251)

Note: (991009, 010, 011, 013)

$56.99

$

Usually ships in 4-12 days

0

35

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

Note: (991009, 010, 011, 013)

$1.99

$

In Stock, Qty 10

0

36

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (991009, 010, 011, 013)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07500007

Bumper,Rubber .62 x 1.0 x .88 LG

Note: (991009, 010, 011, 013)

$6.49

$

In Stock, Qty 9

0

38

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (991009, 010, 011, 013)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25
(Superseded to 06401111)

Note: (991009, 010, 011, 013)

$7.99

$

In Stock, Qty 20+

0

41

Gravely 08905500

Bushing, .407 x .625 x .813

Note: (991009, 010, 011, 013)

$14.99

$

In Stock, only 2 left!

0

42

Gravely 06939100

Clamp, Hose Wire .490/.510 x .116

$3.99

$

In Stock, Qty 7
