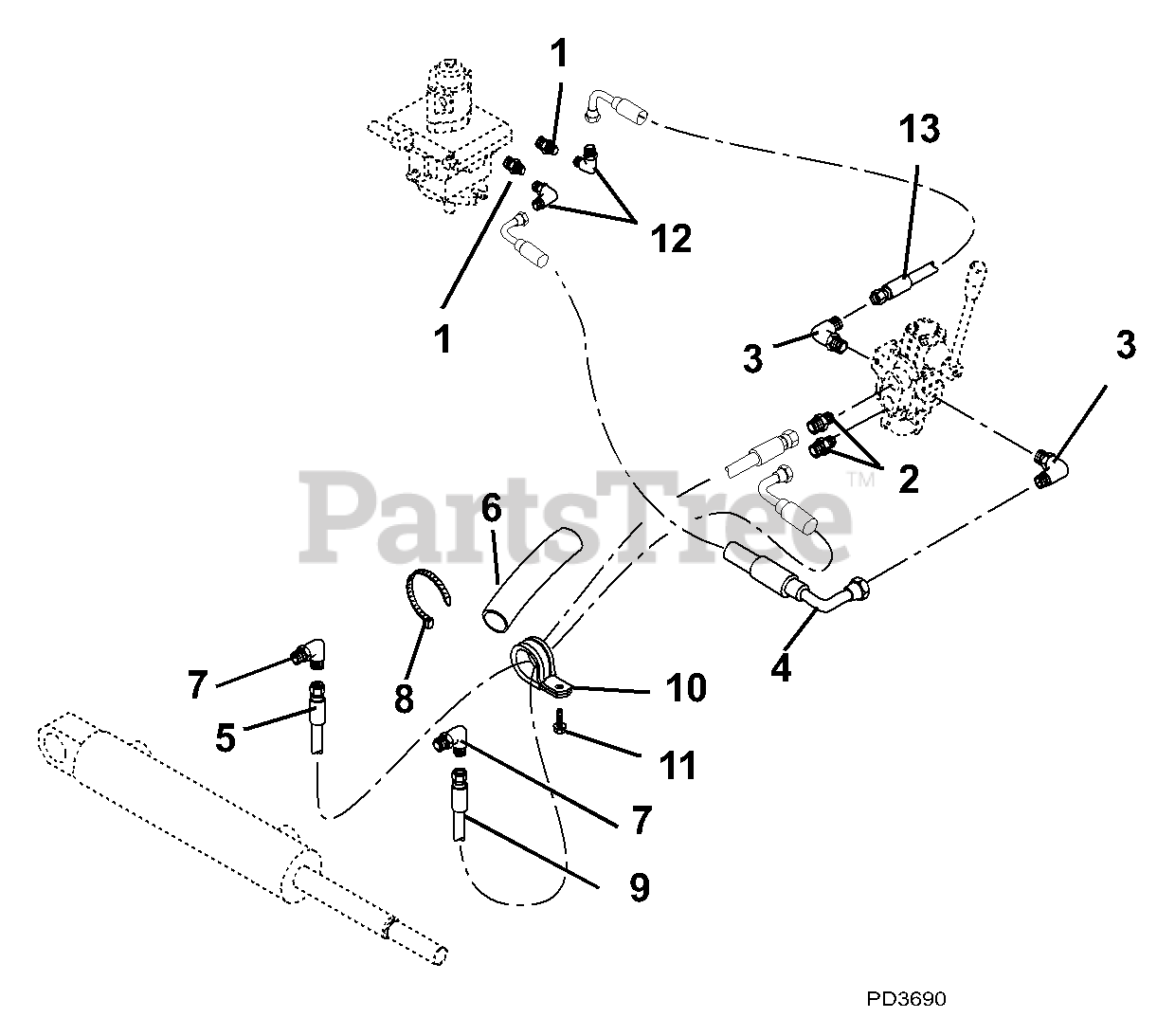

991021 (PM 148H) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Hose Routing For Hydraulic Cylinder Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Hose Routing For Hydraulic Cylinder Parts Diagram

  • Title

1

Gravely 07063700

FITTING, HYD (4 F5OLO)

$

$

Not available

2

Gravely 07063800

FITTING, HYD (4-6 F5OLO)

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 07067500

FTG, HYD ELBOW M4F-M8O

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 00297600

HOSE,HYD .25-19-2K F04F9-F04F9

$

$

Not available

5

Gravely 00275700

HOSE,HYD .25-47-2K FO4F0-FO4F0

$

$

Not available

6

Gravely 09249400

SLEEVE, PROTECTIVE

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 07063900

FITTING, HYD (4 C5OLO)

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 09275400

HOSE,HYD.25-42-2K F04F0-F04F4

$140.99

$

Usually ships in 4-12 days

0

10

Gravely 050395

CLAMP, COUSHIONED STEEL REV
(Superseded to 06917900)

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07000015

FTG, HYD ELBOW F4F-M4O

$

$

Not available

13

Gravely 00297700

HOSE,HYD .25-15-2K F04F9-F04F0

$

$

Not available
