991022 (PM 34M) - Gravely Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 003000 & Above) Hydraulic Tank, Filter, Motors And Pump to Tank Circuit Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

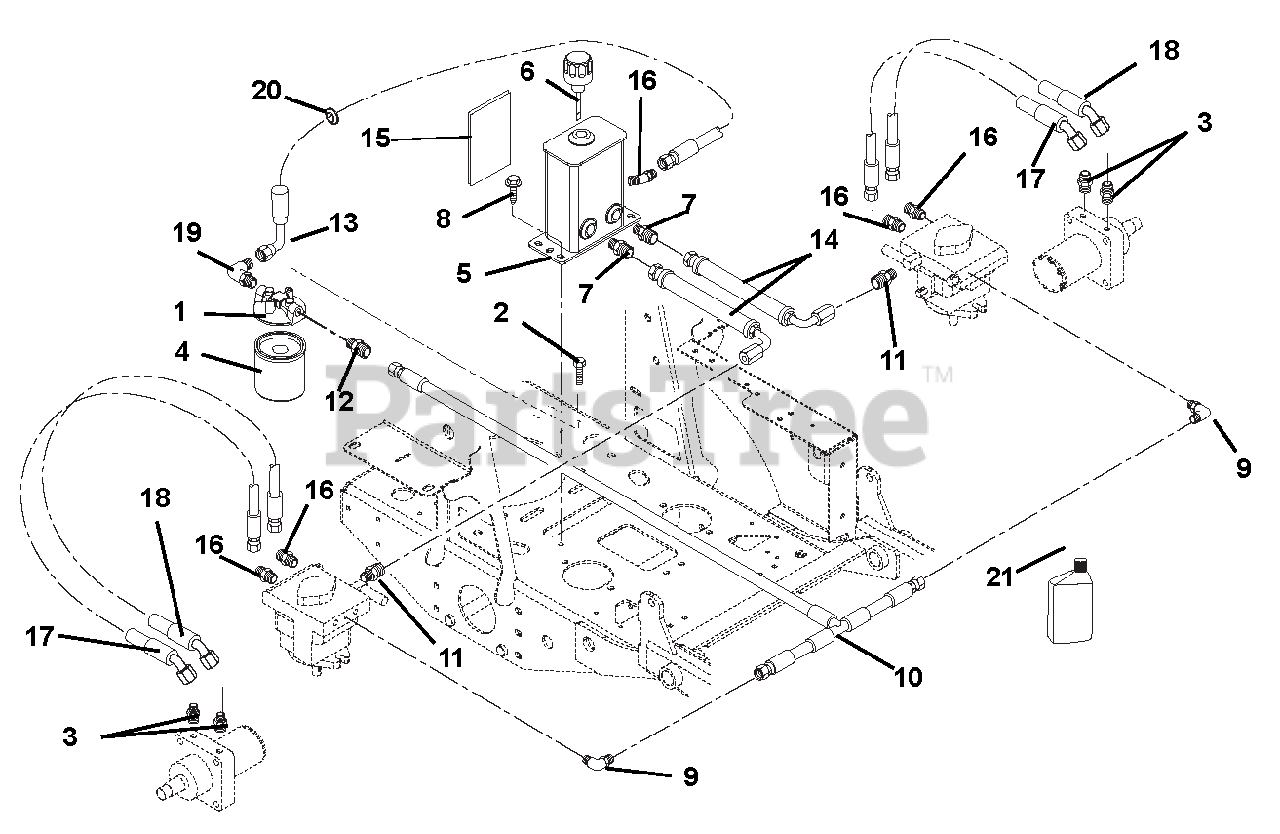

Hydraulic Tank, Filter, Motors And Pump to Tank Circuit Parts Diagram

  • Title

1

Gravely 00672000

HEAD, FILTER

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.99

$

In Stock, Qty 15

0

3

Gravely 07062100

FTG, HYD STR M10O-M8F

$15.99

$

In Stock, only 2 left!

0

4

Gravely 00669300

ELEMENT, OIL FILTER

$29.99

$

In Stock, Qty 7

0

5

Gravely 02985351

WMT,FORMED HYD.TANK-3 PORT

$174.99

$

Usually ships in 4-12 days

0

6

Gravely 00463000

BREATHER, DIPSTICK

$51.99

$

In Stock, only 1 left!

0

7

Gravely 07000012

FTG, HYD STR M8O-M4F

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 07063600

FITTING, HYD (6 C5OLO)

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 00669400

HOSE, .50 TO .38 TEE ASSEMBLY

$141.99

$

Usually ships in 4-12 days

0

11

Gravely 07063800

FITTING, HYD (4-6 F5OLO)

Note: (4-6 F5OLO)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 00393900

ARM, BRAKE HYDRO-GEAR

$

$

Not available

14

Gravely 00275600

HOSE, HYD .25-3-0K F4F0-F4F9

$78.99

$

In Stock, only 2 left!

0

15

Gravely 09286900

SHEILD, HEAT 5.50X4.50

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 00357300

HOSE,HYD .50-11-3K F8O0-F8O4

$105.99

$

In Stock, only 1 left!

0

18

Gravely 00357400

HOSE,HYD .50-12-3K F8O0-F8O4

$118.99

$

In Stock, only 2 left!

0

19

Gravely 07069600

FTG. HYD. 90 EL M8F-M8O

$35.99

$

Usually ships in 4-12 days

0

20

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 00057100

FLUID, HYDRO 15W50 QT

$14.99

$

In Stock, Qty 17

0
