991023 (PM 44M) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 000499) Engine And Clutch Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

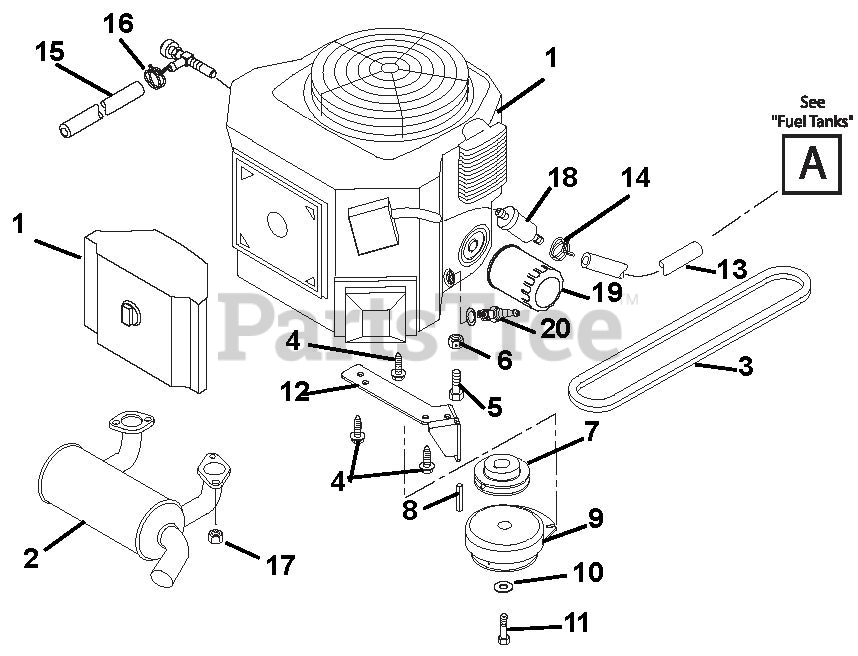

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200139

Engine, 17HP Kawasaki FH500V

Note: (022)

$

$

Not available

1

Gravely 08200140

Engine, 19HP Kawasaki FH451V

Note: (023)

$

$

Not available

2

Gravely 09298000

Muffler, Kawasaki

$260.99

$

Usually ships in 4-12 days

0

3

Gravely 07200010

V-Belt, 53.7 Inches

$37.99

$

In Stock, Qty 9

0

4

Gravely 07000104

Screw, Tapping Hex Washer Head .38-16 x 1.50

$3.99

$

In Stock, only 1 left!

0

5

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

6

Gravely 06545400

Nut, Locking Top Flange .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07327700

Pulley-V 4.00 x 1.12 with Key

$76.99

$

In Stock, only 2 left!

0

8

Gravely 06602700

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, only 1 left!

0

9

Gravely 00867200

Clutch, Electric

$435.99

$

Usually ships in 4-12 days

0

10

Gravely 06443500

Washer, Flat Steel .463 x 1.375 x .250

$7.49

$

In Stock, only 2 left!

0

11

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 EP80
(Superseded to 05902004)

$6.49

$

In Stock, only 2 left!

0

12

Gravely 00395651

Clutch, Stop

$98.99

$

Usually ships in 4-12 days

0

13

Gravely 00365900

Hose, Gas Line 5.75"- .25" I.D.

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, only 2 left!

0

15

Gravely 00172900

Hose, .50 x 6.00

$9.99

$

Usually ships in 4-12 days

0

16

Gravely 06923500

Clamp, .88 Diameter Hose

$2.49

$

In Stock, only 3 left!

0

17

Gravely 06500018

Nut, Top Lock M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 21410800

Fuel Filter, Kawasaki
(Superseded to 21541500)

$12.99

$

In Stock, Qty 20+

0

19

Gravely 21535800

Oil Filter, Kawasaki
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

20

Gravely 21536100

Spark Plug, Kawasaki

$3.99

$

In Stock, Qty 20+

0
