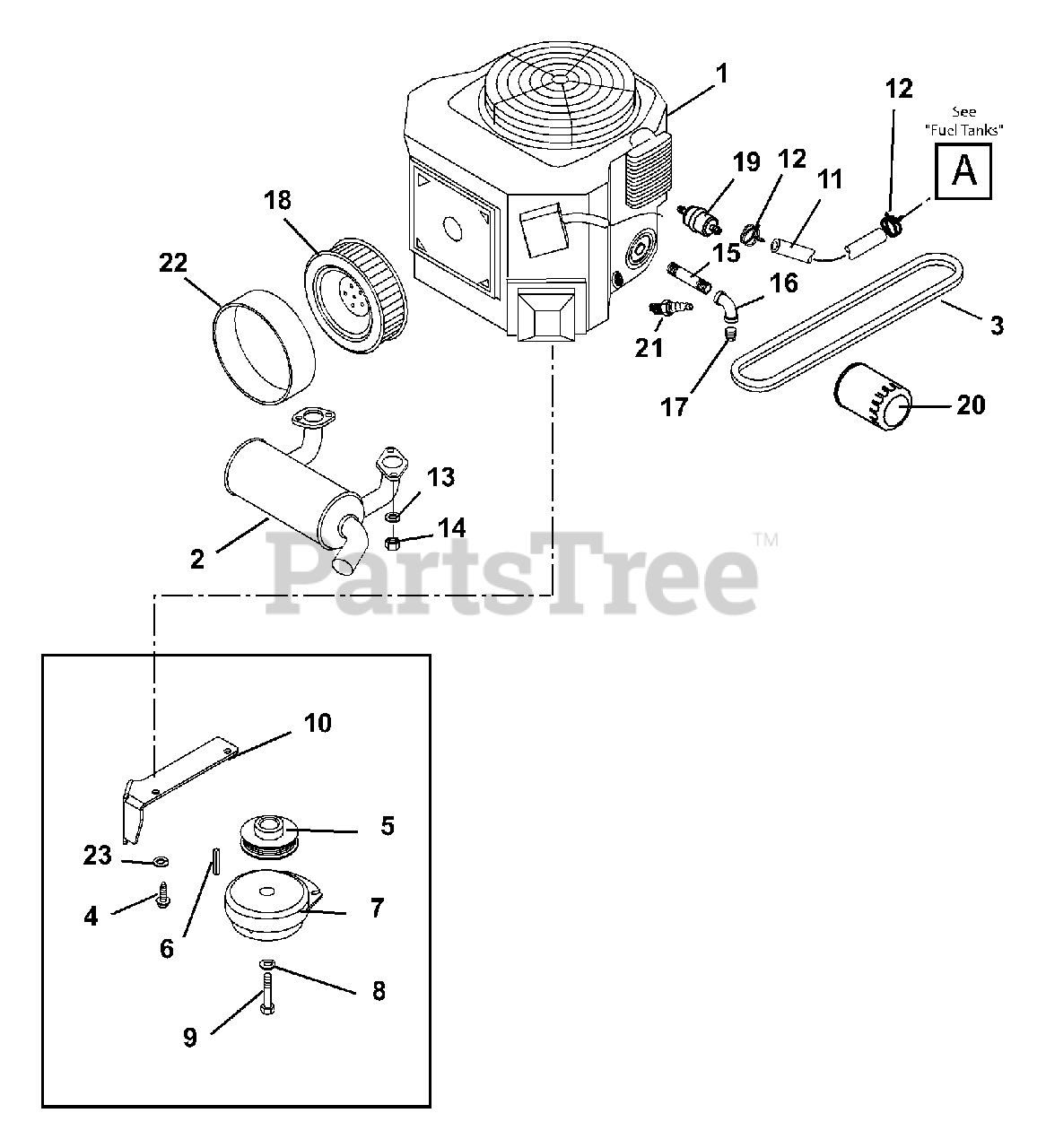

991024 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200133

ENGINE, KOHLER 23HP COMMAND

$

$

Not available

2

Gravely 09294800

MUFFLER, KOHLER
(Superseded to 00470400)

$218.99

$

In Stock, only 2 left!

0

3

Gravely 07218000

V-BELT, HA-RAW EDGE
(Superseded to 07200428)

$53.99

$

In Stock, Qty 20+

0

4

Gravely 07000023

BLT, 38-16X1 6-LOBE PH TRX YZ

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 07327700

PLY-V 4.00 X 1.12 KEYWAY 1.54

$76.99

$

In Stock, Qty 10

0

6

Gravely 039160

KEY-SQ .25X.625X.25 SAE 8630
(Superseded to 06602700)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 00462500

CLUTCH, WARNER 6.323 O/PIN

$619.99

$

Usually ships in 4-12 days

0

8

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05953100

BLT,HEX .44-20X2.25 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 00481851

STOP, CLUTCH (IZ)
(Superseded to 01056451)

$70.99

$

Usually ships in 4-12 days

0

11

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 02749600

NIPPLE

$9.99

$

Usually ships in 4-12 days

0

16

Gravely 07023500

ELBOW .375-18 NPTF

$

$

Not available

17

Gravely 00113800

PIPE PLUG

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 21536400

AIR FILTER

$20.99

$

In Stock, Qty 20+

0

19

Gravely 21539500

FILTER, FUEL

$18.99

$

In Stock, Qty 20+

0

20

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$21.99

$

Usually ships in 4-12 days

0

21

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

$7.49

$

In Stock, Qty 20+

0

22

Gravely 21536300

ELEMENT, PRE-CLEANER

$7.49

$

In Stock, Qty 20+

0

23

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0
