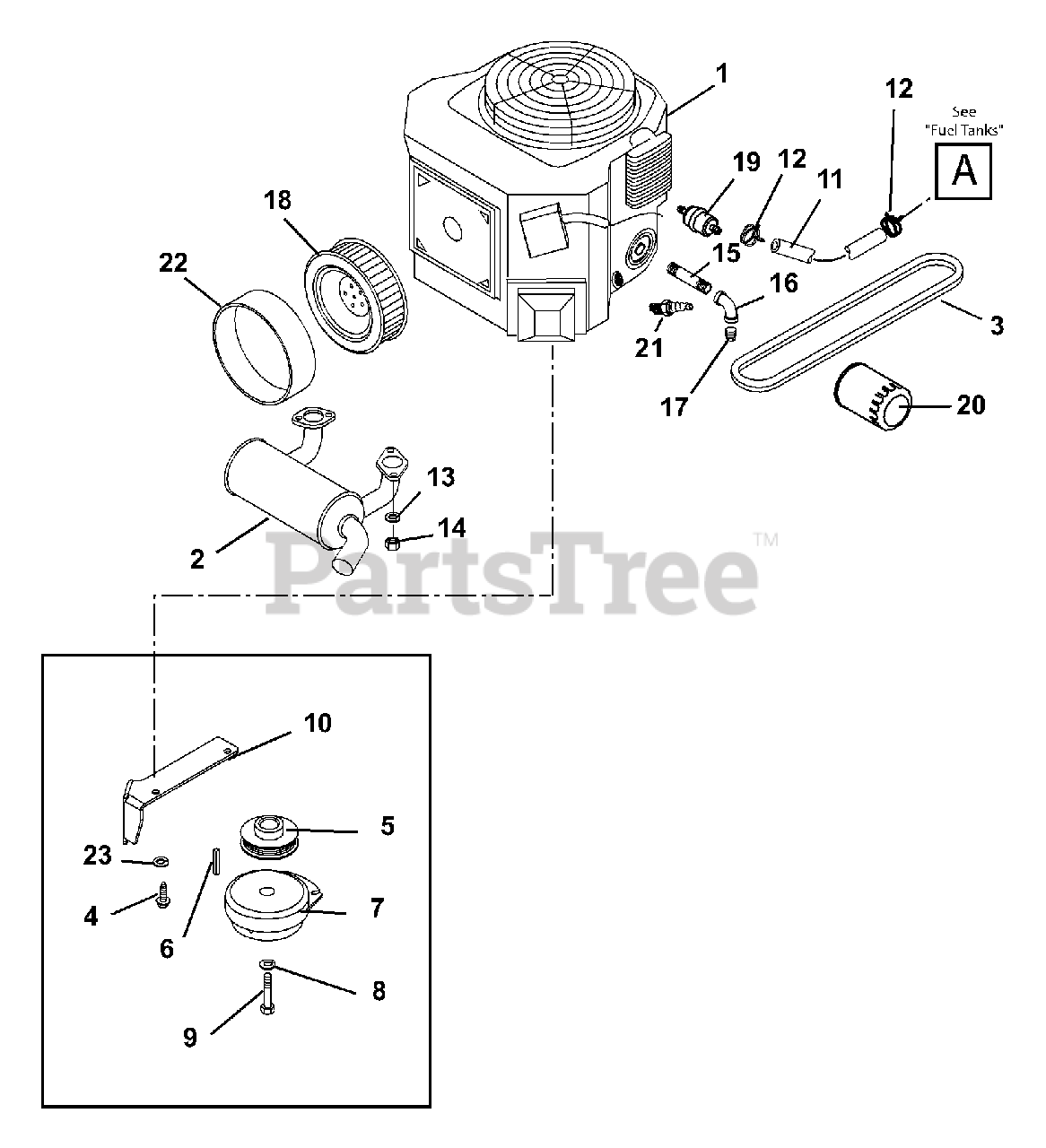

991024 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200133

Engine, Kohler, 23hp

$

$

Not available

2

Gravely 09294800

Muffler, Kohler
(Superseded to 00470400)

$198.99

$

In Stock, only 3 left!

0

3

Gravely 07218000

V-Belt HA 52 x .535 G48667
(Superseded to 07200428)

$51.99

$

In Stock, Qty 6

0

4

Gravely 07000023

Bolt, 38-16X1 6-LOBE PH TRX YZ

$3.99

$

In Stock, Qty 7

0

5

Gravely 07327700

Pulley-V 4.00 x 1.125 with Key 1.42 Height

$68.99

$

In Stock, only 1 left!

0

6

Gravely 039160

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035
(Superseded to 06602700)

$3.99

$

In Stock, Qty 16

0

7

Gravely 00462500

Clutch, Electric

$581.99

$

Usually ships in 4-12 days

0

8

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

9

Gravely 05953100

Bolt, Hex .44-20 x 2.25 Grade 5

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 00481851

Clutch Stop
(Superseded to 01056451)

$68.99

$

In Stock, only 2 left!

0

11

Gravely 021134

Gas Line, Bulk .25 ID
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

Note: (Included with item 1)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06538600

Nut, Hex M8-1.25

Note: (Included with item 1)

$1.99

$

Usually ships in 4-12 days

0

15

Gravely 02749600

Nipple

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 07023500

Elbow .375-18

$

$

Not available

17

Gravely 00113800

Pipe Plug

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 21536400

Filter

$23.99

$

In Stock, Qty 9

0

19

Gravely 21539500

Fuel Filter, Kohler

$12.99

$

In Stock, Qty 20+

0

20

Gravely 21397200

Oil Filter, Kohler
(Superseded to 20715100)

$17.99

$

In Stock, only 1 left!

0

21

Gravely 21525900

Spark Plug, Kohler
(Superseded to 21541700)

$3.49

$

In Stock, Qty 20+

0

22

Gravely 21536300

Filter

$6.99

$

In Stock, Qty 8

0

23

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
