991024 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kohler

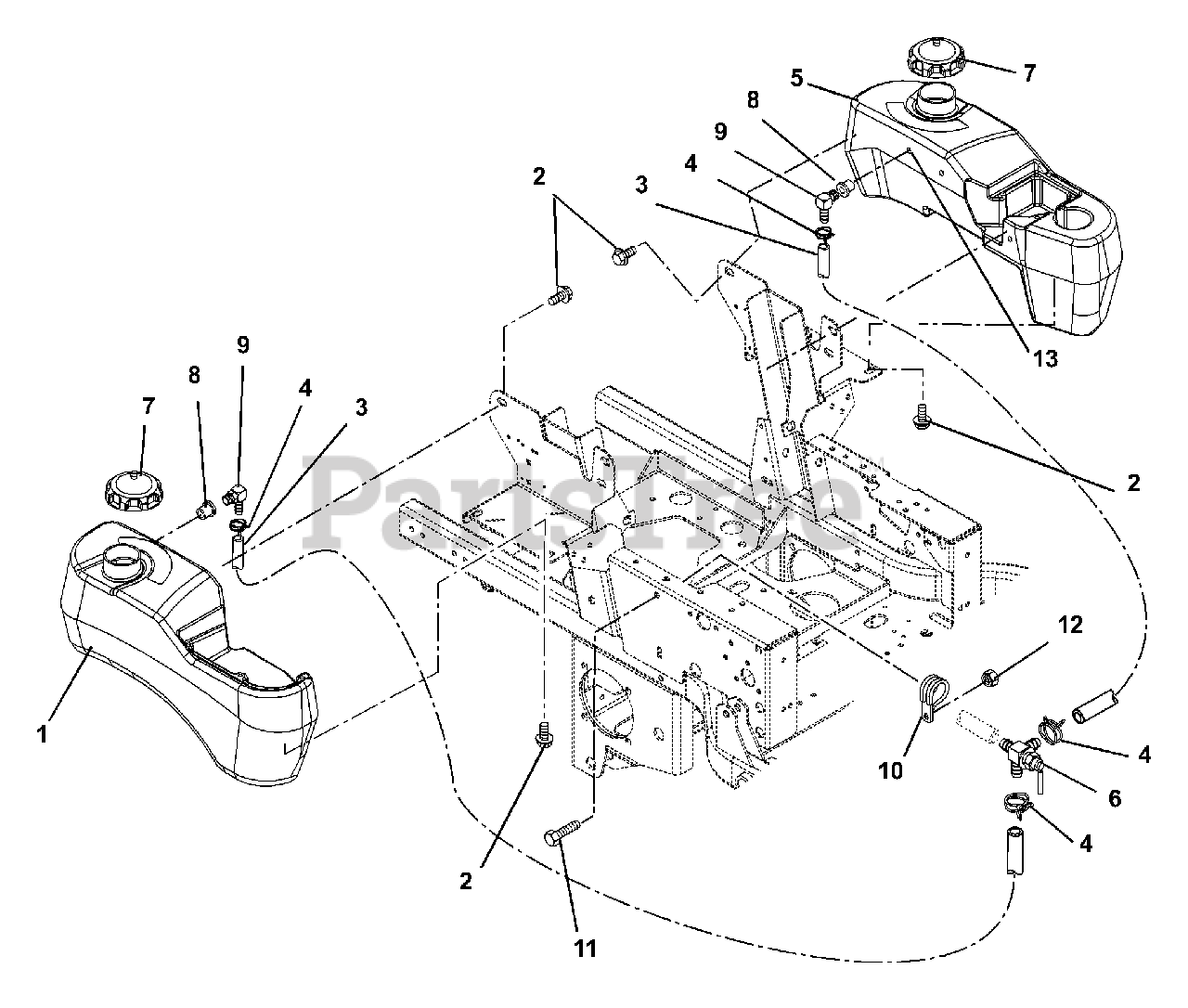

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 00445900

TANK, GAS RH (100 SERIES)

$413.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$4.99

$

In Stock, Qty 20+

0

3

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$4.99

$

In Stock, Qty 20+

0

5

Gravely 00191100

TANK, LH FUEL 100 S. W/O HOSE

Note: (EYE-Q) 100 Series

$305.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

VALVE, FUEL

$51.99

$

In Stock, Qty 9

0

7

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$30.99

$

In Stock, Qty 13

0

8

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Will not replace black)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 21539200

FITTING, TANK ELBOW .25 HOSE

$15.99

$

In Stock, only 1 left!

0

10

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 59207200

KIT, 20" FUEL LINE (2 HOSES)
(Superseded to 04320900)

Note: (inside of tank)

$43.99

$

In Stock, Qty 15

0
