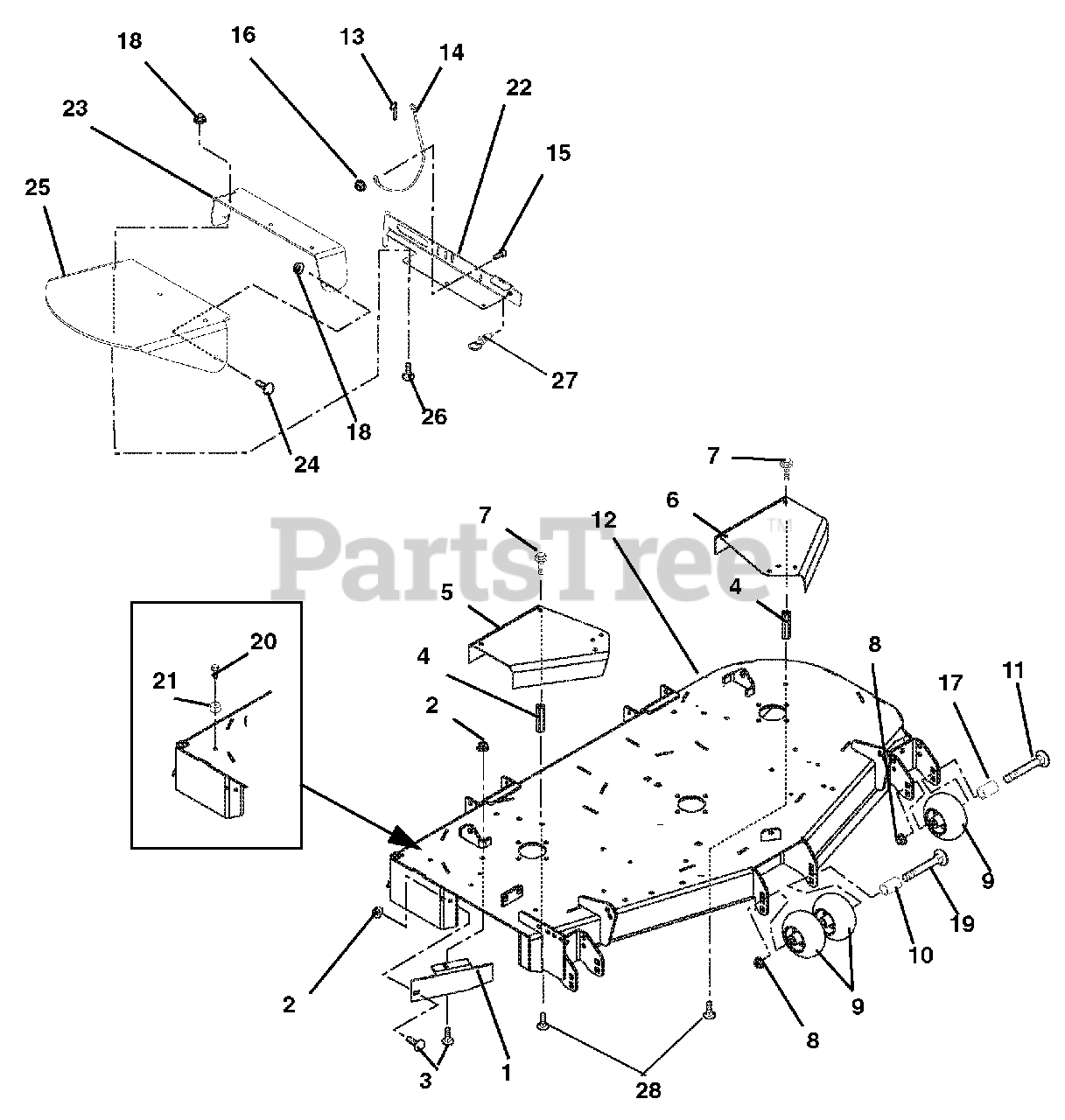

991026 (PM 144M XDZ) - Gravely Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title

1

Gravely 00451653

44"-48" SIDE DISCH BAFFLE -RED

Note: (991026, 027, 029, 032)

$42.99

$

Usually ships in 4-12 days

0

Gravely 00440853

52" DISCHARGE BAFFLE - RED

Note: (991028, 030, 031)

$38.99

$

Usually ships in 4-12 days

0

Gravely 00374153

60" DISCHARGE BAFFLE - RED

Note: (991042)

$29.99

$

In Stock, Qty 6

0

2

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

5

Gravely 00463153

44"RH SPINDLE SHEAVE GUARD-RED

Note: (991026, 032)

$71.99

$

Usually ships in 4-12 days

0

Gravely 00439453

48"-52" RH SPNDL SHV GUARD-RED

Note: (991027, 028, 029, 030, 031)

$49.99

$

Usually ships in 4-12 days

0

Gravely 00370653

60"RH SPINDLE SHEAVE GUARD-RED

Note: (991042)

$70.99

$

In Stock, only 4 left!

0

6

Gravely 00438953

44"-52" LH SPNDL SHV GUARD-RED

$105.99

$

Usually ships in 4-12 days

0

Gravely 00371453

60"LH SPINDLE SHEAVE GUARD-RED

Note: (991042)

$58.99

$

In Stock, Qty 6

0

7

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 00473600

WHEEL, ANTI SCALP
(Superseded to 03905900)

$13.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

12

Gravely 00373153

44" SIDE DISCH DECK WMT - RED
(Superseded to 59102600)

Note: (991026, 032)

$969.99

$

Usually ships in 4-12 days

0

Gravely 00374853

48" SIDE DISCHARGE DECK - RED
(Superseded to 59108500)

Note: (991027, 029)

$1121.99

$

Usually ships in 4-12 days

0

Gravely 00370953

52"SIDE DISCH DCK WMT-RED(100)

Note: (991028, 030, 031)

$1108.99

$

Usually ships in 4-12 days

0

Gravely 00354453

60"SIDE DISCH DCK WMT-RED(100)

Note: (991042)

$

$

Not available

13

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0

14

Gravely 06900037

CABLE. 5.00 LG

$27.99

$

Usually ships in 4-12 days

0

15

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

16

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

17

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

21

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

22

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

Note: (991028, 030, 031, 042)

$131.99

$

In Stock, only 1 left!

0

Gravely 00472453

44"-48" DISCH CHUTE MTG WMT-RD
(Superseded to 04757453)

Note: (991026, 027, 029, 032)

$115.99

$

In Stock, only 4 left!

0

23

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$127.99

$

In Stock, only 1 left!

0

24

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

26

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

28

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0
