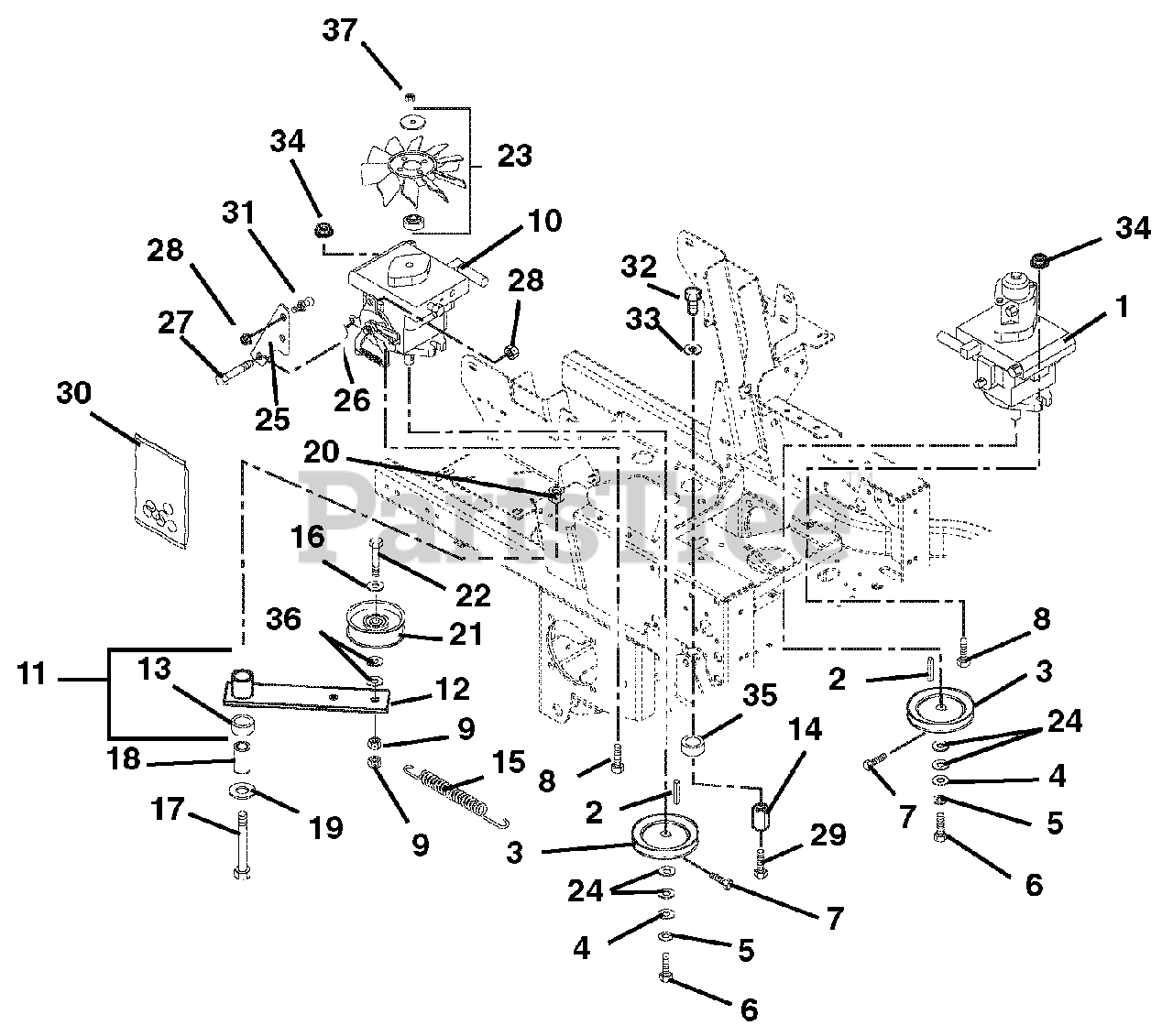

991026 (PM 144M XDZ) - Gravely Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Hydrostatic Pumps And Idlers Parts Diagram

Pro-Master 44" Zero-Turn Mower, 21hp Kawasaki

Hydrostatic Pumps And Idlers Parts Diagram

  • Title

1

Gravely 09297600

PUMP, HYD BDP-10A (LH)

Note: (991029, 030, 032, 042) (page 14)

$982.99

$

Usually ships in 4-12 days

0

Gravely 00438600

PUMP, HYD PJ-SERIES 12CC (FAN)

Note: (991026, 027, 028, 031) (page 15)

$989.99

$

Usually ships in 4-12 days

0

2

Gravely 06607500

KEY-STR 5MMX25MMX5MM

$3.99

$

In Stock, Qty 12

0

3

Gravely 07300105

SHEAVE, PUMP .592 X 4.831

Note: (991029, 030, 032, 042)

$

$

Not available

Gravely 07300016

SHEAVE, PUMP .592 X 5.831

Note: (991026, 027, 028, 031)

$60.99

$

In Stock, only 2 left!

0

4

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05900017

BLT-HEX M6X1.0X12 YZ EP30

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.99

$

In Stock, Qty 15

0

8

Gravely 06224500

@BLT-RDHDSQNK .44-14X1.50 G5YZ

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09285200

PUMP, BDP-10A-441 (THRU SHAFT)

Note: (991029, 030, 032, 042) (page 16)

$1068.99

$

Usually ships in 4-12 days

0

Gravely 00438500

PUMP, HYD PJ-SERIES 12CC (FAN)

Note: (991026, 027, 028, 031) (page 17)

$989.99

$

Usually ships in 4-12 days

0

11

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 12 & 13)

$102.99

$

Usually ships in 4-12 days

0

12

Gravely 09217000

WMT, IDLER ARM GROUND DRIVE

$114.99

$

Usually ships in 4-12 days

0

13

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

15

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

16

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

18

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

19

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

22

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 03368800

FAN, COOLING (W/ HUB & WASHER)

Note: (Includes Hub and Washer) (991029, 030, 032, 042)

$52.99

$

In Stock, Qty 5

0

Gravely 03368800

FAN, COOLING (W/ HUB & WASHER)

Note: (Includes Hub and Washer) (991026, 027, 028, 031)

$52.99

$

In Stock, Qty 5

0

24

Gravely 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 09282900

BRACKET, RTN/DAMPER

$7.99

$

Usually ships in 4-12 days

0

26

Gravely 02513500

SPACER .344X1.000X.375

$

$

Not available

27

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

28

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05900041

BLT,HEX .38-16X1.50 GR5 EP30

$

$

Not available

30

Gravely 59203600

KIT, PUMP SEAL

Note: (One kit required for each pump)

$79.99

$

Usually ships in 4-12 days

0

31

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

32

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06500009

@NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

36

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 06537000

NUT-CTRLK .31-24 YWZC

Note: (991029, 030, 032, 042)

$1.99

$

In Stock, Qty 5

0

Gravely 06537000

NUT-CTRLK .31-24 YWZC

Note: (991026, 027, 028, 031)

$1.99

$

In Stock, Qty 5

0
