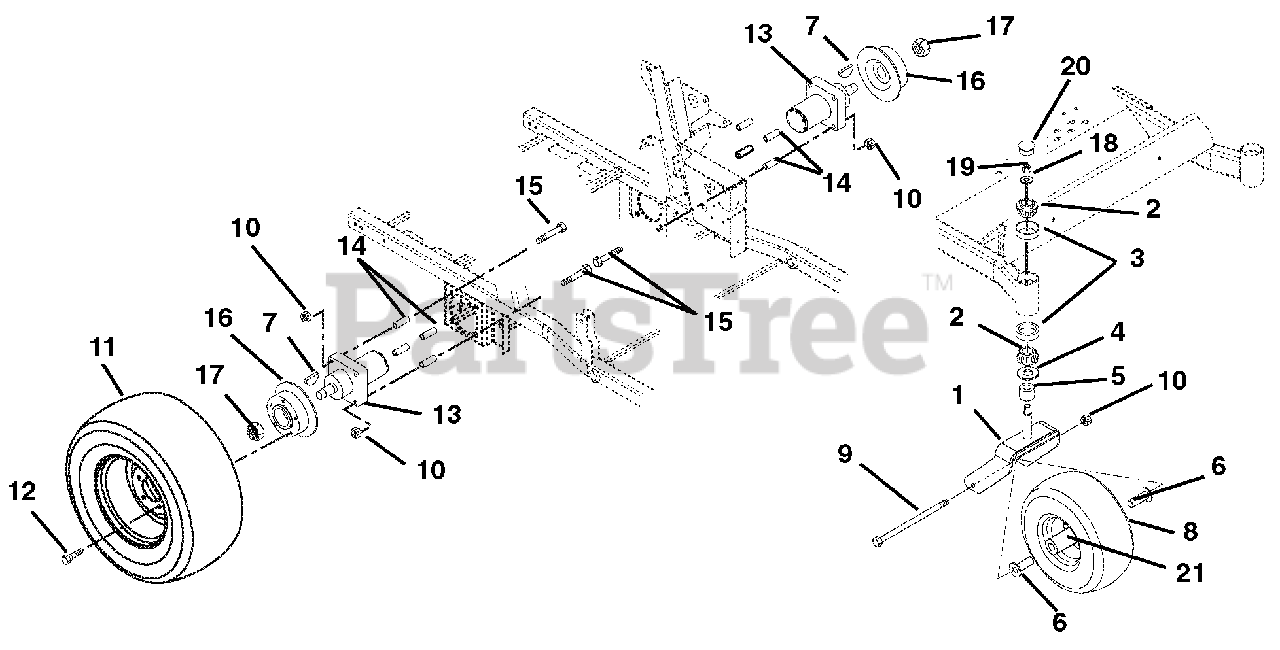

991027 (PM 148M XDZ) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title

1

Gravely 09282451

Fork
(Superseded to 59208600)

$166.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

Bearing, Cone with Grease
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.98 x .420

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$8.49

$

In Stock, Qty 15

0

6

Gravely 00675300

Spacer, Wheel

$9.49

$

In Stock, Qty 20+

0

7

Gravely 06607800

Key, Woodruff .31 x 1.00 (Included with 13)

Note: (Included with 13)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 07100212

Wheel/Tire Assembly, 15 x 6.00-6
(Superseded to 59219000)

$197.99

$

In Stock, only 2 left!

0

Gravely 07100213

Tire, 15 x 6.00-6
(Superseded to 07100905)

$87.99

$

In Stock, only 2 left!

0

9

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$11.99

$

In Stock, Qty 13

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07100209

Wheel, Tire 23 x 10.00 - 12
(Superseded to 07101116)

$319.99

$

In Stock, only 1 left!

0

Gravely 07100210

Tire, 23 x 10.00-12
(Superseded to 07101043)

$205.99

$

Usually ships in 4-12 days

0

12

Gravely 07067700

Bolt, Lug Grade 8 .50-20 UNF x 1.38 Long 60 Degree
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 00605300

Hydraulic Wheel Motor (includes 17 & 7) (991029, 030, 032)

Note: (includes 17 & 7) (991029, 030, 032)

$

$

Not available

Gravely 00668900

Hydraulic Wheel Motor (includes 17 & 7) (991026, 027, 028, 031) (Pg 18)

Note: (includes 17 & 7) (991026, 027, 028, 031) (Pg 18)

$1943.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

Bushing, Sleeve .513 x .748 x 2.13

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 05975400

Bolt, Hex .50-13 x 5.00 Grade 8

$6.49

$

In Stock, Qty 10

0

16

Gravely 09247100

Hub and Disc

$303.99

$

Usually ships in 4-12 days

0

17

Gravely 06541900

Nut, Lock Jam Patch (Included with 13)

Note: (Included with 13)

$33.99

$

In Stock, only 1 left!

0

18

Gravely 06439000

Washer, Flat, Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.99

$

In Stock, Qty 16

0

19

Gravely 06536900

Nut, Jam Center Lock .75-16

$6.49

$

In Stock, Qty 9

0

20

Gravely 00456800

Cap, Dust

$18.99

$

In Stock, Qty 8

0

21

Gravely 05435700

Bearing, 25mm I.D. x 52mm O.D. x 15mm

$25.99

$

In Stock, Qty 20+

0
