991028 (PM 152M XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) Hydro_Gear_Pump_00438600 Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kawasaki

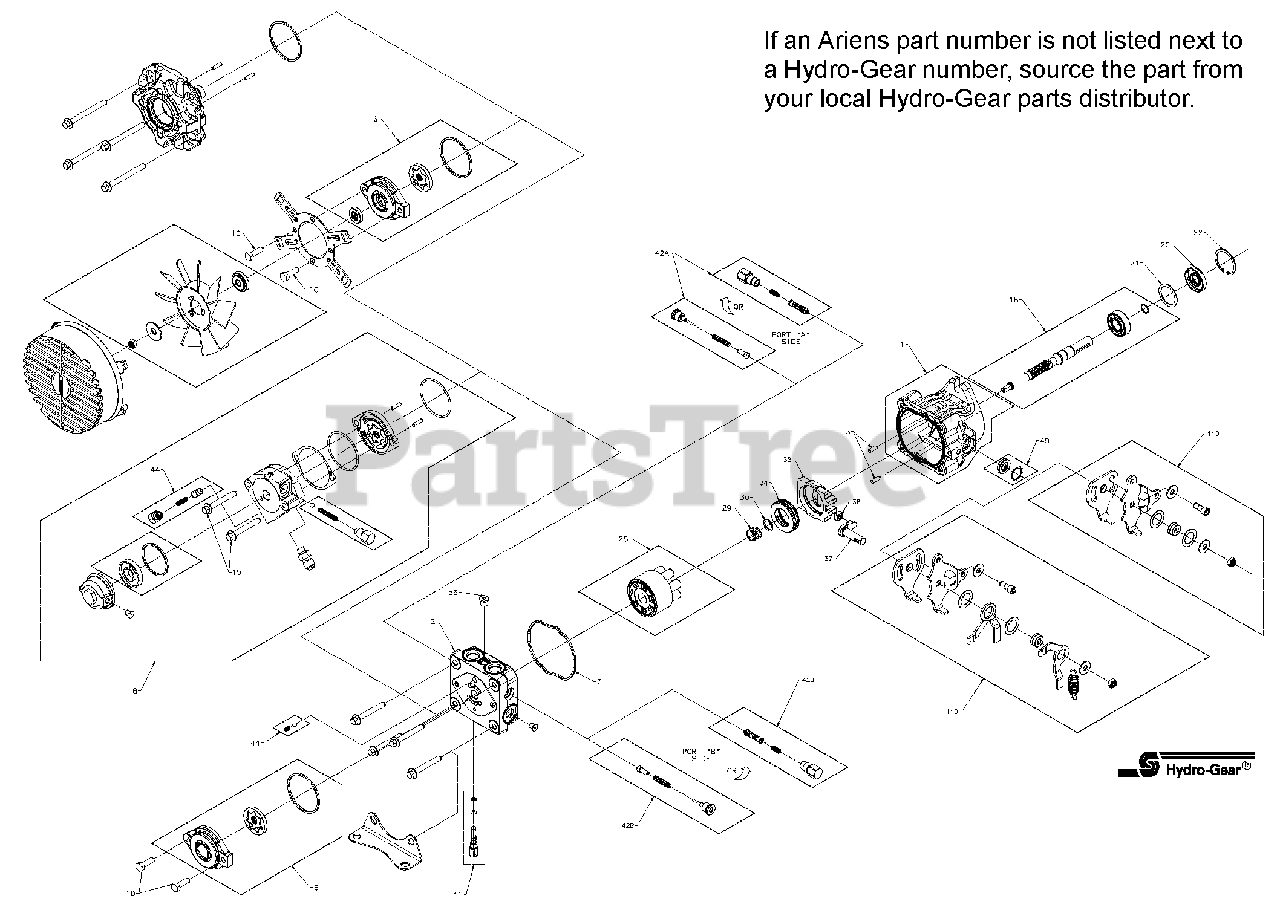

Hydro_Gear_Pump_00438600 Parts Diagram

  • Title

1

Gravely 21543929

KIT, HSG

Note: HydroGear p/n:70797

$

$

Not available

2

Gravely 21543873

ENDCAP

Note: HydroGear p/n:52038

$

$

Not available

3

Gravely 21543750

PIN, .219X1

Note: HydroGear p/n:50641

$

$

Not available

5

Gravely 21543824

O-RING, HSG

Note: HydroGear p/n:51232

$

$

Not available

6

Kit, Charge Pump

Note: HydroGear p/n:71246

$

$

Not available

10

Gravely 21543994

HHCS 5/16-18X1

Note: HydroGear p/n:9007200-3116

$

$

Not available

15

Gravely 21543954

KIT, BYPASS VALVE

Note: HydroGear p/n:71248

$

$

Not available

18

Gravely 21543903

KIT, PUMP SHAFT 15MM KEYW

Note: HydroGear p/n:70522

$161.99

$

Usually ships in 4-12 days

0

20

Gravely 21543816

SEAL, LIP 17X40X7

Note: HydroGear p/n:51161

$8.49

$

Usually ships in 4-12 days

0

21

Gravely 21543773

WASHER 1.23X1.56X.04

Note: HydroGear p/n:50951

$3.49

$

In Stock, only 1 left!

0

22

Gravely 21543741

RING, RET 1.56 INT

Note: HydroGear p/n:50329

$4.49

$

Usually ships in 4-12 days

0

25

Cylinder Block Kit

Note: HydroGear p/n:71170

$

$

Not available

29

Gravely 08621500

SPRING. BLOCK

Note: HydroGear p/n:2003014

$3.49

$

In Stock, Qty 5

0

30

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

Note: HydroGear p/n:2003017

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 08609000

SWASHPLATE. VARIABLE

Note: HydroGear p/n:2003087

$

$

Not available

34

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: HydroGear p/n:50551

$18.99

$

Usually ships in 4-12 days

0

37

Gravely 08610800

ARM. TRUNNION TAPERED SQUARE

Note: HydroGear p/n:50807

$59.99

$

Usually ships in 4-12 days

0

38

Gravely 08610700

GUIDE. SLOT

Note: HydroGear p/n:2000015

$

$

Not available

42

Gravely 21543923

KIT, SHOCK VALVE 200 BAR

Note: HydroGear p/n:70743

$

$

Not available

44

Gravely 21543956

KIT, CHARGE RELIEF

Note: HydroGear p/n:71361

$

$

Not available

49

Gravely 58803300

KIT, PUMP SEAL

Note: HydroGear p/n:2513043

$9.99

$

Usually ships in 4-12 days

0

56

Gravely 21543993

PLUG 7/16-20 (METAL)

Note: HydroGear p/n:9005110-4400

$

$

Not available

110

Gravely 21543933

RETURN KIT

Note: HydroGear p/n:70846

$67.99

$

Usually ships in 4-12 days

0

NS

Gravely 59203600

KIT, PUMP SEAL

Note: HydroGear p/n:70525

$82.99

$

Usually ships in 4-12 days

0
