991028 (PM 152M XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) Hydro_Gear_Wheel_00668900 Parts Diagram

Pro-Master 52" Zero-Turn Mower, 23hp Kawasaki

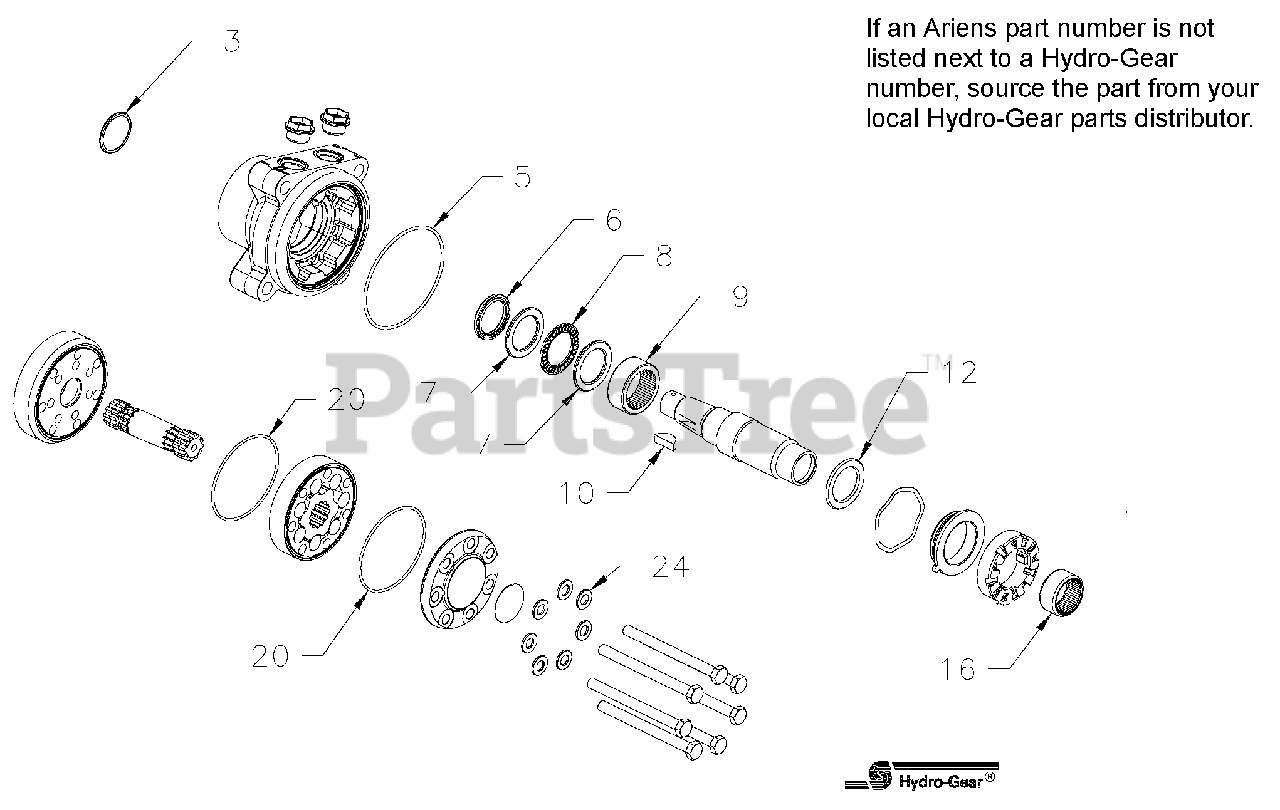

Hydro_Gear_Wheel_00668900 Parts Diagram

  • Title

10

Key, Woodruff 5/16 x 1

Note: HydroGear p/n:51796

$

$

Not available

NS

Seal Kit (Serial No. 5040M10001 and below) (includes 3, 5, 6, 12, 20 and 24)

Note: HydroGear p/n:70602-1

$

$

Not available

NS

Seal Kit (Serial No. 5040M10001 and up) (includes 3, 5, 6, 12, 20 and 24)

Note: HydroGear p/n:70602-2

$

$

Not available

NS

Kit, Axial Needle Bearing HGM E-Series (includes 7, 8, 9 and 16)

Note: HydroGear p/n:71494

$

$

Not available
