991030 (PM 152M) - Gravely Pro-Master 52" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 & Above) Seat Parts Diagram

Pro-Master 52" Zero-Turn Mower, 21hp Kawasaki

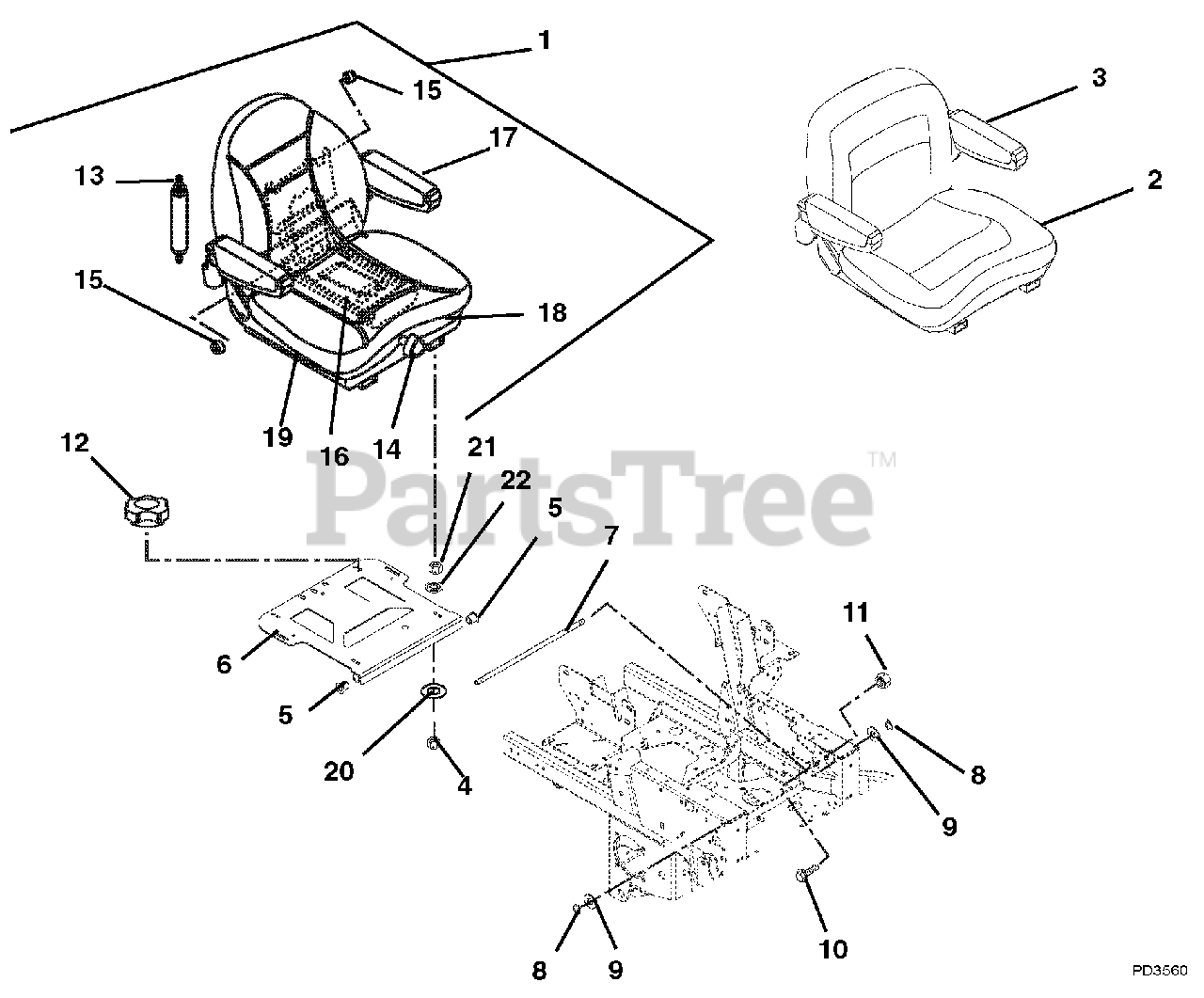

Seat Parts Diagram

  • Title

1

Gravely 00674100

SEAT, MILSCO SUSPENSION (GRAY)
(Superseded to 79207100)

Note: (991026, 027, 028, 031)

$

$

Not available

2

Gravely 00458600

SEAT
(Superseded to 03829400)

Note: (991029, 030, 032, 042)

$448.99

$

Usually ships in 4-12 days

0

3

Gravely 71600500

KIT, SEAT ARM RESTS

Note: (991029, 030, 032, 042)

$227.99

$

Usually ships in 4-12 days

0

4

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (991029, 030, 032, 042)

$1.49

$

In Stock, Qty 20+

0

Gravely 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

Note: (991026, 027, 028, 031)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 20+

0

6

Gravely 00460651

WMT, SEAT PLATE
(Superseded to 03256751)

$

$

Not available

7

Gravely 09282700

ROD, SEAT FRAME PIVOT

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 16

0

11

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 59201300

KIT-DAMPER W/HDWR MILSCO SEAT

Note: (991026, 027, 028, 031)

$212.99

$

Usually ships in 4-12 days

0

14

Gravely 59201600

KIT-KNOB MILSCO SEAT

Note: (1 per bag) (991026, 027, 028, 031)

$

$

Not available

15

Gravely 59201700

KIT-ROLLER MILSCO SEAT

Note: (4 per bag) (991026, 027, 028, 031)

$

$

Not available

16

Gravely 59201800

KIT-SPRING/CABLE MILSCO SEAT

Note: (1 per bag) (991026, 027, 028, 031)

$

$

Not available

17

Gravely 59201900

KIT-ARMPAD MILSCO SEAT

Note: (1 per bag) (991026, 027, 028, 031)

$182.99

$

Usually ships in 4-12 days

0

18

Gravely 59202000

KIT-ADJUSTER MILSCO SEAT

Note: (1 per carton) (991026, 027, 028, 031)

$268.99

$

Usually ships in 4-12 days

0

19

Gravely 59209000

KIT,MILSCO SEAT BASE/BACK-GRAY

Note: (1 per carton) (991026, 027, 028, 031)

$

$

Not available

20

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (991026, 027, 028, 031)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05508900

BSHG-SLV .377X.624X.235

Note: (991026, 027, 028, 031)

$9.99

$

In Stock, only 2 left!

0

22

Gravely 06514900

NUT-PUSH .312

Note: (991026, 027, 028, 031)

$0.99

$

In Stock, Qty 9

0
