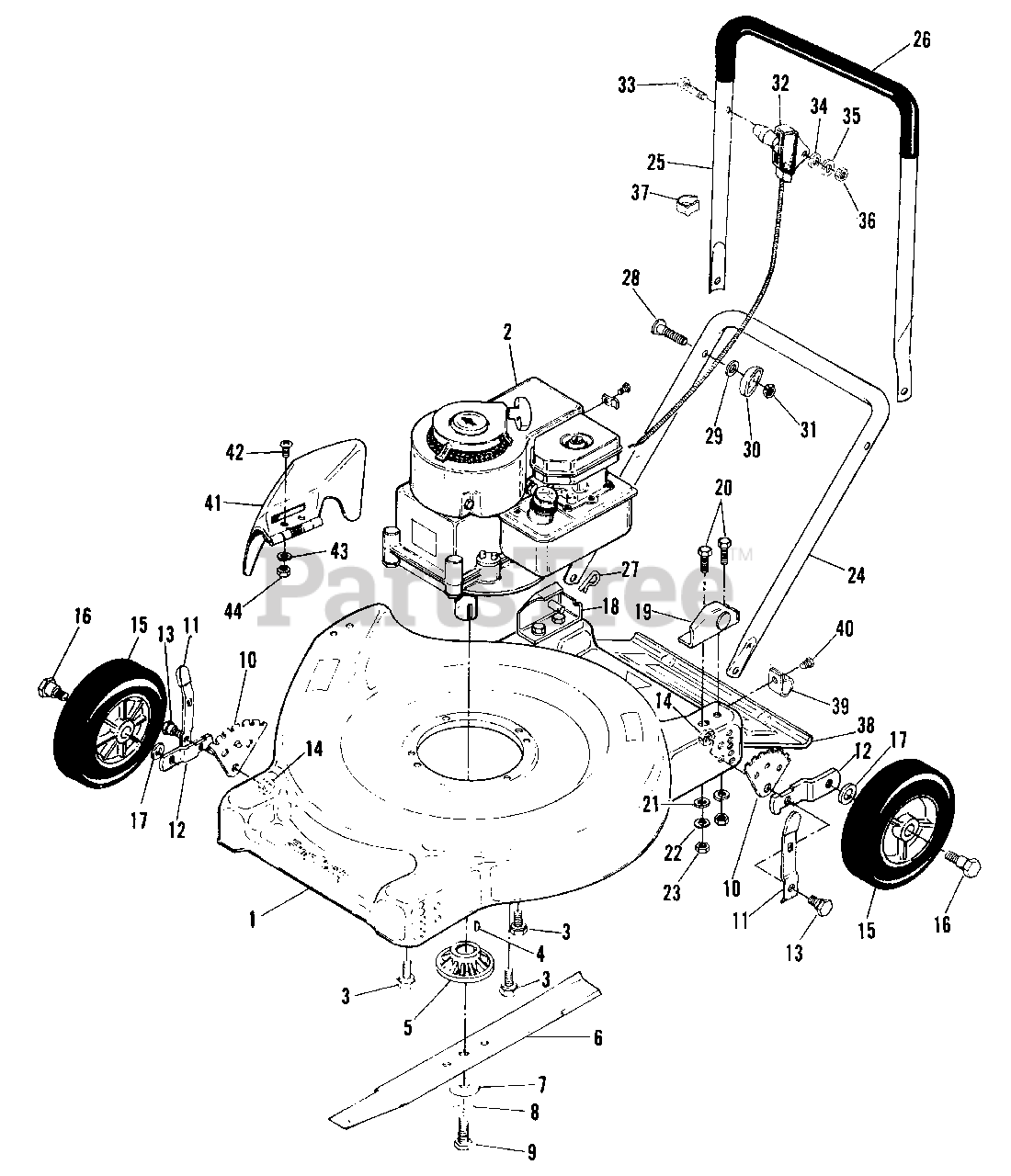

991033 - Simplicity Zipper 20" Walk-Behind Mower 20" & 22" Zipper Parts Diagram

Zipper 20" Walk-Behind Mower

20" & 22" Zipper Parts Diagram

  • Title

1

Simplicity 1609033

HOUSING ASSY

$

$

Not available

1

Simplicity 1609212

HOUSING ASSY

Note: Not Illustrated.

$

$

Not available

2

Simplicity 1609035

ENGINE, 3.5 HP

$

$

Not available

3

Simplicity 928696

SCREW, Hex w/Tooth Lockwasher

$

$

Not available

4

Simplicity 2810224SM

KEY

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1609026

ADAPTOR, Blade

$

$

Not available

6

Simplicity 1609019

BLADE

$

$

Not available

6

Simplicity 1609020

BLADE

Note: Not Illustrated.

$

$

Not available

7

Simplicity 2824356

WASHER, Plain

$

$

Not available

8

Simplicity 1916965SM

LOCKWASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

9

Simplicity 2822128

CAPSCREW

$

$

Not available

10

Simplicity 1609036

QUADRANT, Height Adj.

$

$

Not available

11

Simplicity 1609037

HANDLE ASSY, Height Adj.

$

$

Not available

12

Simplicity 1609038

ARM, Height Adj.

$

$

Not available

13

Simplicity 1609034

BOLT, Shoulder

$

$

Not available

14

Simplicity 2823428

LOCKNUT

$

$

Not available

15

Simplicity 1609027

WHEEL & TIRE ASSY

$

$

Not available

16

Simplicity 2170135SM

BOLT, Shoulder

$9.49

$

Usually ships in 2-12 days

0

17

Simplicity 2156065

WASHER, Plain

$

$

Not available

18

Simplicity 1609084

BRACKET ASSY, R.H.

$

$

Not available

19

Simplicity 1609083

BRACKET ASSY, L.H.

$

$

Not available

20

Simplicity 2821959

CAPSCREW, Hex Hd.

$

$

Not available

21

Simplicity 2817377

WASHER, Plain

$

$

Not available

22

Simplicity 2816964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 2816622SM

NUT, Hex, Full
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

24

Simplicity 1609028

HANDLE, Lower

$

$

Not available

25

Simplicity 1609029

HANDLE, Upper

$

$

Not available

26

Simplicity 108793

TUBING, Handle

$

$

Not available

27

Simplicity 2818451

PIN, Cotter

$

$

Not available

28

Simplicity 108778

BOLT, Curved Hd.

$

$

Not available

29

Simplicity 2817377

WASHER, Plain

$

$

Not available

30

Simplicity 2108848

NUT, Wing

$

$

Not available

31

Simplicity 2823362

NUT, Hex, Lock

$

$

Not available

32

Simplicity 1609025

CONTROL, Throttle

$

$

Not available

33

Simplicity 2819316

CAPSCREW

$

$

Not available

34

Simplicity 2818264

WASHER, Plain

$

$

Not available

35

Simplicity 2816964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

36

Simplicity 2816622SM

NUT, Hex
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

37

Simplicity 1609045

CLIP

$

$

Not available

38

Simplicity 1609085

SHIELD, Rear Safety

$

$

Not available

38

Simplicity 1609086

SHIELD, Rear Safety

Note: Used On Mfg. No. 991034, 22" Zipper

$

$

Not available

39

Simplicity 1609039

CLAMP, Tube

$

$

Not available

40

Simplicity 928695

SCREW, Hex, Washer Hd.

$

$

Not available

41

Simplicity 1609066

DEFLECTOR ASSY, Discharge

$

$

Not available

42

Simplicity 2826025

SCREW, Rd. Hd. Phillips

$

$

Not available

43

Simplicity 2816964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

44

Simplicity 2816622SM

NUT, Hex
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0
