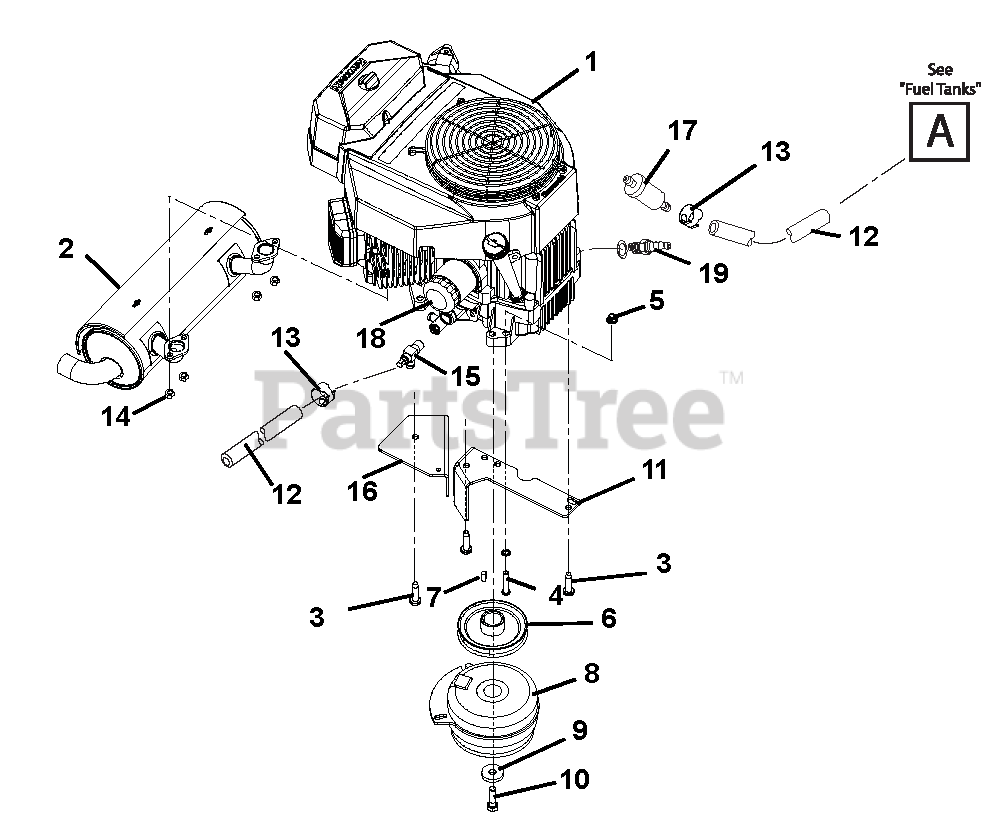

991036 (PM 48Z) - Gravely Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000200 & Above) Engine And Clutch Parts Diagram

Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200140

ENGINE, KAWASAKI 19HP

$

$

Not available

2

Gravely 09298000

MUFFLER, KAW. (COMPACT-Z)

$260.99

$

Usually ships in 4-12 days

0

3

Gravely 07000104

BLT, TAP .38-16X1.5 PH TRX YZ

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 05901308

BLT-BTNHD .31-18 X 1.75 YWZC

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07300106

SHEAVE, 4.831 X 1.127 ENGINE
(Superseded to 07331667)

$103.99

$

Usually ships in 4-12 days

0

7

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 20+

0

8

Gravely 02999900

CLUTCH, ELECTRIC I-5219-93

$593.99

$

Usually ships in 4-12 days

0

9

Gravely 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

In Stock, only 2 left!

0

10

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

11

Gravely 00395651

WMT, CLUTCH STOP

$98.99

$

Usually ships in 4-12 days

0

12

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 00429000

DRAIN, 1/2" OIL

$40.99

$

In Stock, only 3 left!

0

16

Gravely 01059951

GUARD - CLUTCH WIRE - CZ

$26.99

$

Usually ships in 4-12 days

0

17

Gravely 21438400

WASHER 8, POLISHED

$

$

Not available

18

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

19

Gravely 21533600

PLUG, SPARK

$8.49

$

In Stock, Qty 20+

0

20

Gravely 21538200

AIR FLTR,PAPER

$21.99

$

In Stock, Qty 20+

0

21

Gravely 21538300

FILTER, FOAM AIR PRE-

$11.99

$

Usually ships in 4-12 days

0
