991036 (PM 48Z) - Gravely Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000200 & Above) Frame Parts Diagram

Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki

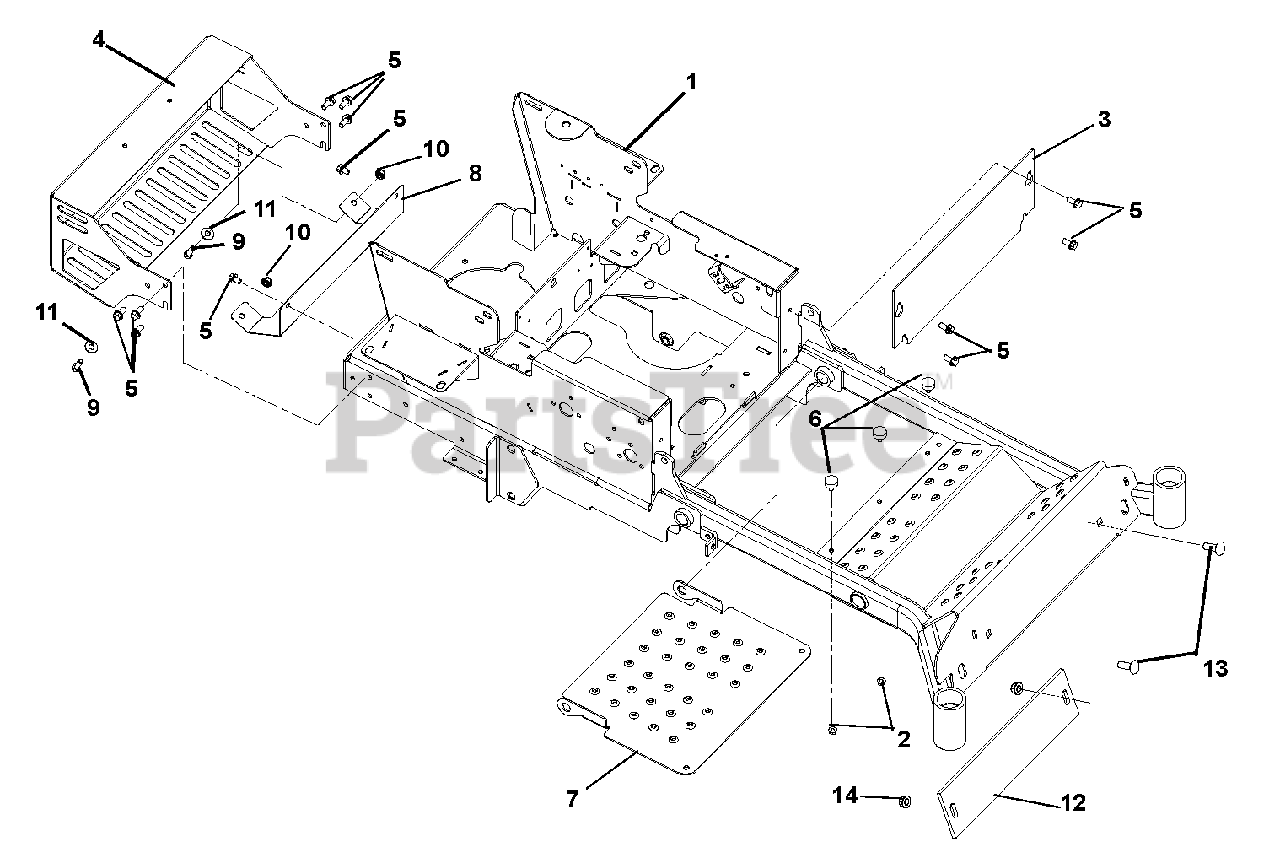

Frame Parts Diagram

  • Title

1

Gravely 02989551

ZT Head 44-48 Main Frame Weldment (SN# 000200 - 000799)

Note: (SN# 000200 - 000799)

$

$

Not available

Gravely 03381651

Weldment, CZ 44-48 Main Frame (SN# 000800 and up)

Note: (SN# 000800 and up)

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, only 2 left!

0

3

Gravely 02989053

Kick Plate

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 02988751

Weldment Gravely, CZ Bumper

$184.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 2 left!

0

7

Gravely 00298953

Panel, Inspection

$

$

Not available

8

Gravely 00462351

Heat Shield, Compact Z

$51.99

$

In Stock, only 1 left!

0

9

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 14

0

10

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01922853

Counterwieght CZ Front- Red

$38.99

$

Usually ships in 4-12 days

0

13

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

14

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0
