991036 (PM 48Z) - Gravely Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000200 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki

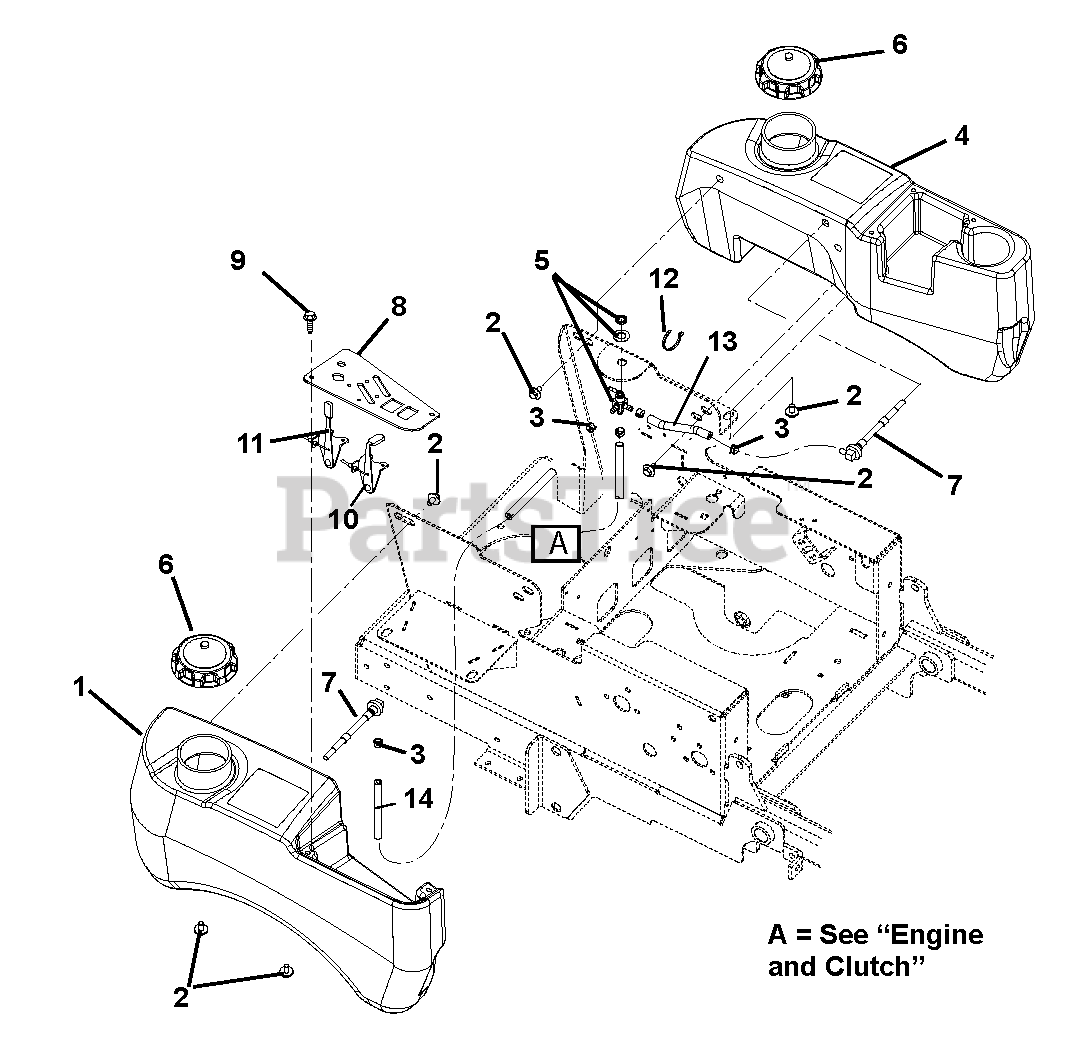

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09298200

Tank, Gas- Right Hand (SN 000200 - 000799)

Note: (SN 000200 - 000799)

$

$

Not available

Gravely 00445900

Tank, Gas- Right Hand (SN 000800 and up)

Note: (SN 000800 and up)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 7

0

4

Gravely 00262700

Tank, Left Hand Fuel (Eye-Q) (SN 000200 - 000799)

Note: (Eye-Q) (SN 000200 - 000799)

$

$

Not available

Gravely 00191100

Tank, Left Hand Fuel 100 S. without Hose (SN 000800 and up)

Note: (SN 000800 and up)

$276.99

$

Usually ships in 4-12 days

0

5

Gravely 09258200

Valve, Fuel

$45.99

$

In Stock, Qty 7

0

6

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

$28.99

$

In Stock, only 1 left!

0

7

Gravely 59207700

Kit, 16.5" Fuel Line-Compact (SN 000200 - 000799)
(Superseded to 04320900)

Note: (SN 000200 - 000799)

$39.99

$

In Stock, Qty 9

0

Gravely 59207200

20" Fuel Line Kit (SN 000800 and up)
(Superseded to 04320900)

Note: (SN 000800 and up)

$39.99

$

In Stock, Qty 9

0

8

Gravely 00257351

Panel, Control

$27.99

$

Usually ships in 4-12 days

0

Gravely 00453900

Panel, Control (SN 000800 and up)

Note: (SN 000800 and up)

$

$

Not available

9

Gravely 06100137

Screw, Machine 10-24 x .50

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06900319

Cable, Throttle (SN 000200 - 000799)

Note: (SN 000200 - 000799)

$45.99

$

Usually ships in 4-12 days

0

Gravely 06900336

Cable, Control (SN 000800 and up)

Note: (SN 000800 and up)

$46.99

$

Usually ships in 4-12 days

0

11

Gravely 06949500

Cable, Choke

$39.99

$

Usually ships in 4-12 days

0

Gravely 06900319

Cable, Throttle OR Choke (SN 000800 and up)

Note: (SN 000800 and up)

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 07517300

Cable Tie

$

$

Not available

13

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas (SN 000200 - 000799)

Note: (SN 000200 - 000799)

$0.99

$

In Stock, Qty 20+

0

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas (SN 000800 and up)

Note: (SN 000800 and up)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$0.99

$

In Stock, Qty 20+

0
