991040 (2660 HD) - Ariens Zoom 60" Zero-Turn Mower, 26hp Briggs & Stratton (SN: 000200 & Above) Engine And Clutch - Briggs Parts Diagram

Zoom 60" Zero-Turn Mower, 26hp Briggs & Stratton

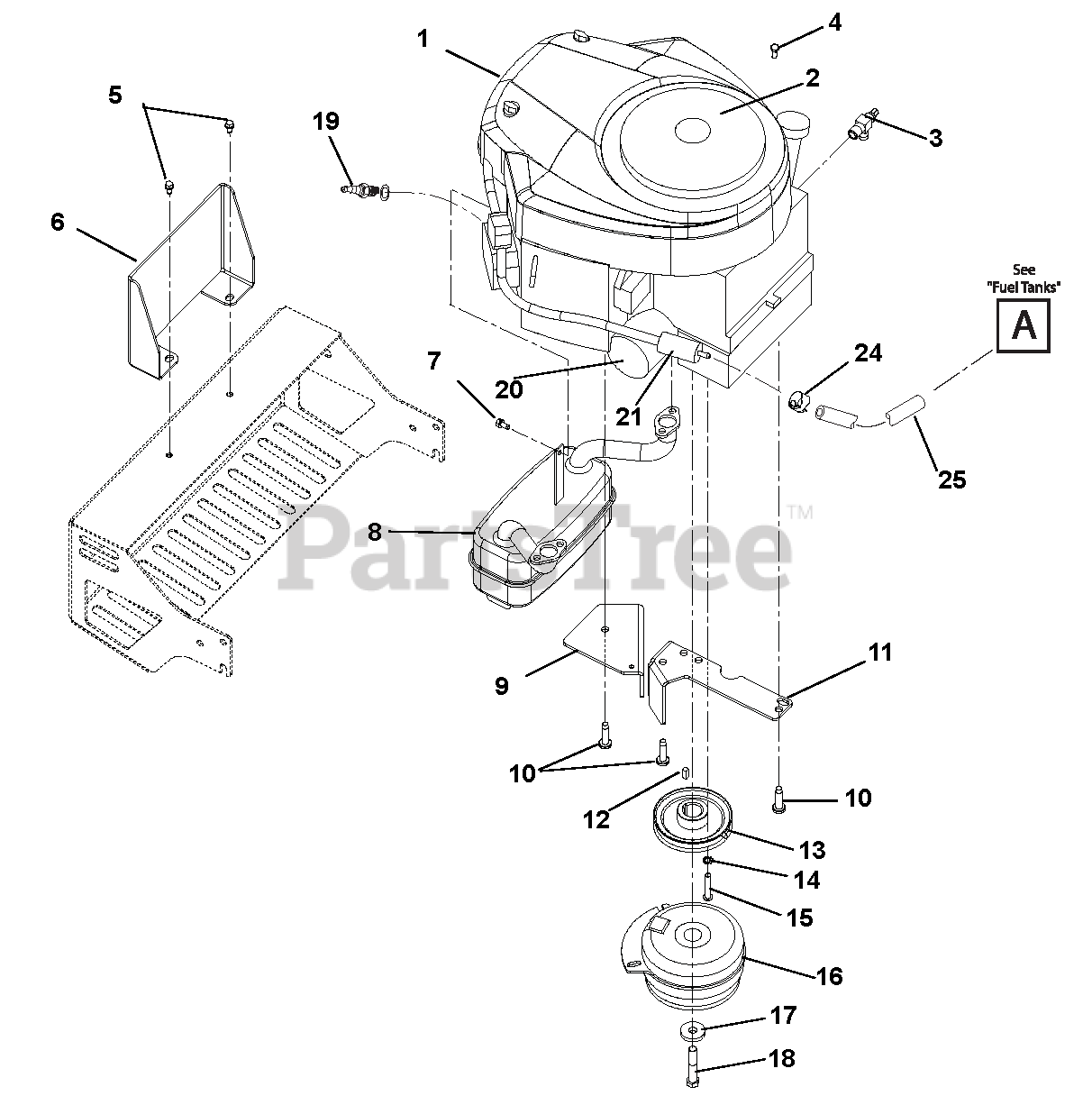

Engine And Clutch - Briggs Parts Diagram

  • Title

1

Ariens 08200325

ENGINE, 26HP BRIGGS ELS

Note: (040)

$

$

Not available

Ariens 08200324

ENGINE, BRIGGS 24HP ELS

Note: (039)

$

$

Not available

2

Ariens 03275500

GUARD, BRIGGS ENGINE

$31.99

$

Usually ships in 4-12 days

0

3

Ariens 00429000

DRAIN, 1/2" OIL

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 03262151

BRIGGS CARBURETOR GUARD - BLK

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 01557000

MUFFLER ASSEMBLY

$171.99

$

Usually ships in 4-12 days

0

9

Ariens 01059951

GUARD - CLUTCH WIRE - CZ

$26.99

$

In Stock, only 1 left!

0

10

Ariens 07000104

BLT, TAP .38-16X1.5 PH TRX YZ

$3.99

$

In Stock, only 1 left!

0

11

Ariens 00395651

WMT, CLUTCH STOP

$98.99

$

Usually ships in 4-12 days

0

12

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 7

0

13

Ariens 07300436

SHEAVE, 4.831 X 1.002 ENGINE
(Superseded to 07331767)

$118.99

$

In Stock, only 2 left!

0

14

Ariens 06308700

@WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 05901308

BLT-BTNHD .31-18 X 1.75 YWZC

$4.99

$

Usually ships in 4-12 days

0

16

Ariens 03368000

CLUTCH, ELECTRIC

$541.99

$

Usually ships in 4-12 days

0

17

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

Usually ships in 4-12 days

0

18

Ariens 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$14.99

$

In Stock, only 1 left!

0

19

Ariens 21534100

PLUG, SPARK

Note: (CHAMPION #RC12YC)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 21544500

FILTER, OIL

$13.99

$

In Stock, Qty 20+

0

21

Ariens 21544600

FILTER, FUEL
(Superseded to 00682500)

$15.99

$

Usually ships in 4-12 days

0

22

Ariens 21544700

FILTER, AIR

$35.99

$

Usually ships in 4-12 days

0

23

Ariens 21544800

FILTER, AIR PRE-

$26.99

$

Usually ships in 4-12 days

0

24

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 19

0

25

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0
