991040 (2660 HD) - Ariens Zoom 60" Zero-Turn Mower, 26hp Briggs & Stratton (SN: 000200 & Above) Motors And Wheels Parts Diagram

Zoom 60" Zero-Turn Mower, 26hp Briggs & Stratton

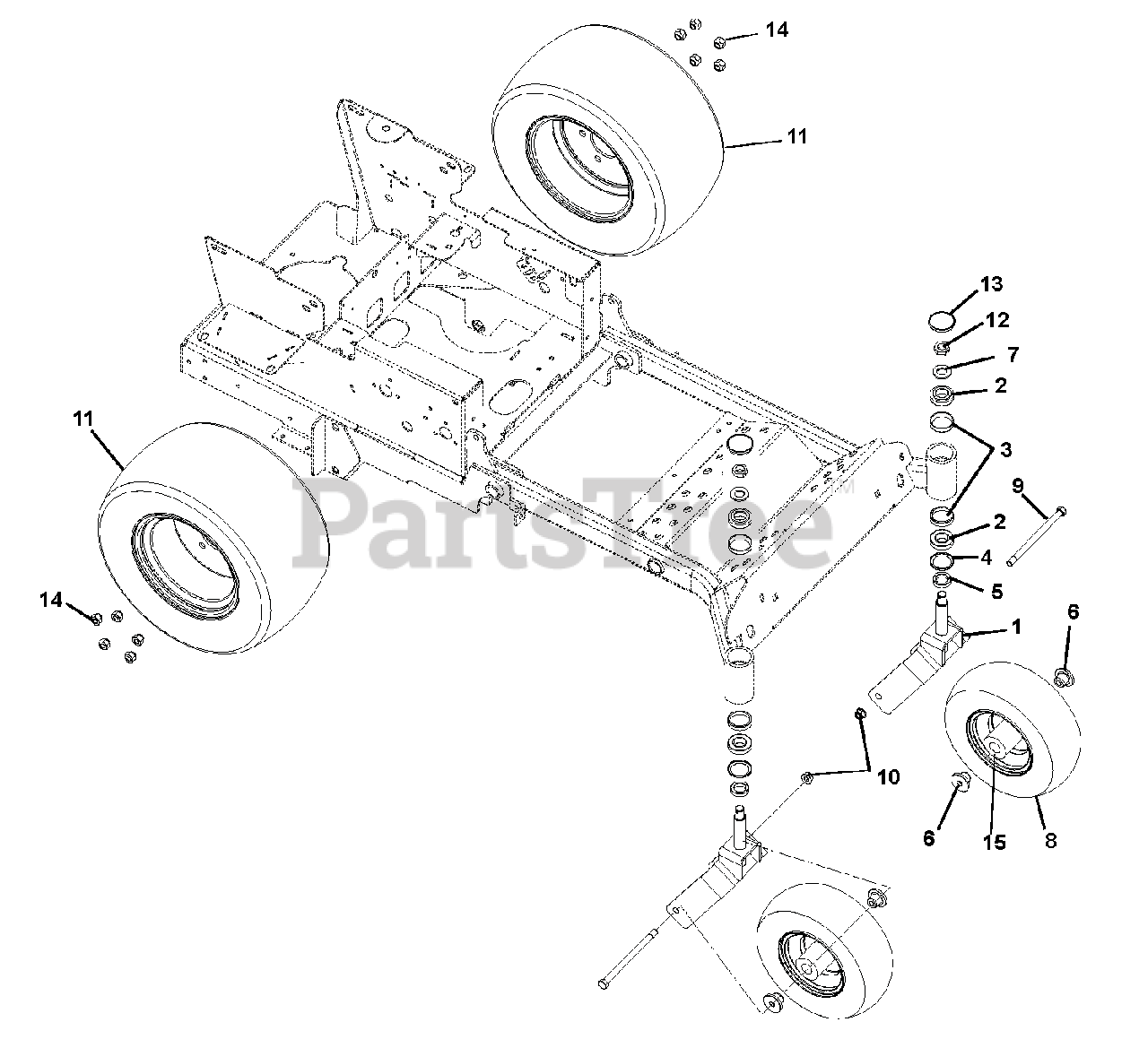

Motors And Wheels Parts Diagram

  • Title

1

Ariens 00490251

WMT - FORK
(Superseded to 59208400)

$203.99

$

In Stock, only 1 left!

0

2

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, only 4 left!

0

3

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 11

0

4

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 15

0

5

Ariens 00531500

SPACER 1.005X1.5075X.375

$7.49

$

In Stock, Qty 8

0

6

Ariens 00675300

SPACER, FRONT WHEEL

$6.99

$

In Stock, only 2 left!

0

7

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

8

Ariens 07100218

TIRE/WHEEL ASSY, 13X5.00-6
(Superseded to 07101111)

$113.99

$

Usually ships in 4-12 days

0

Ariens 07121900

T/WHL ASSY 4.80-8
(Superseded to 07100017)

$136.99

$

Usually ships in 4-12 days

0

9

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

10

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 07100214

TIRE/WHEEL ASSY, 20X10.00-10

$193.99

$

Usually ships in 4-12 days

0

Ariens 07100215

TIRE, 20X10.00-10

$125.99

$

Usually ships in 4-12 days

0

12

Ariens 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, Qty 8

0

13

Ariens 00456800

CAP, DUST

$12.99

$

In Stock, Qty 9

0

14

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 20+

0
