991043 (PM 34M) - Gravely Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 002999) Hydro-Gear Wheel Motor Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

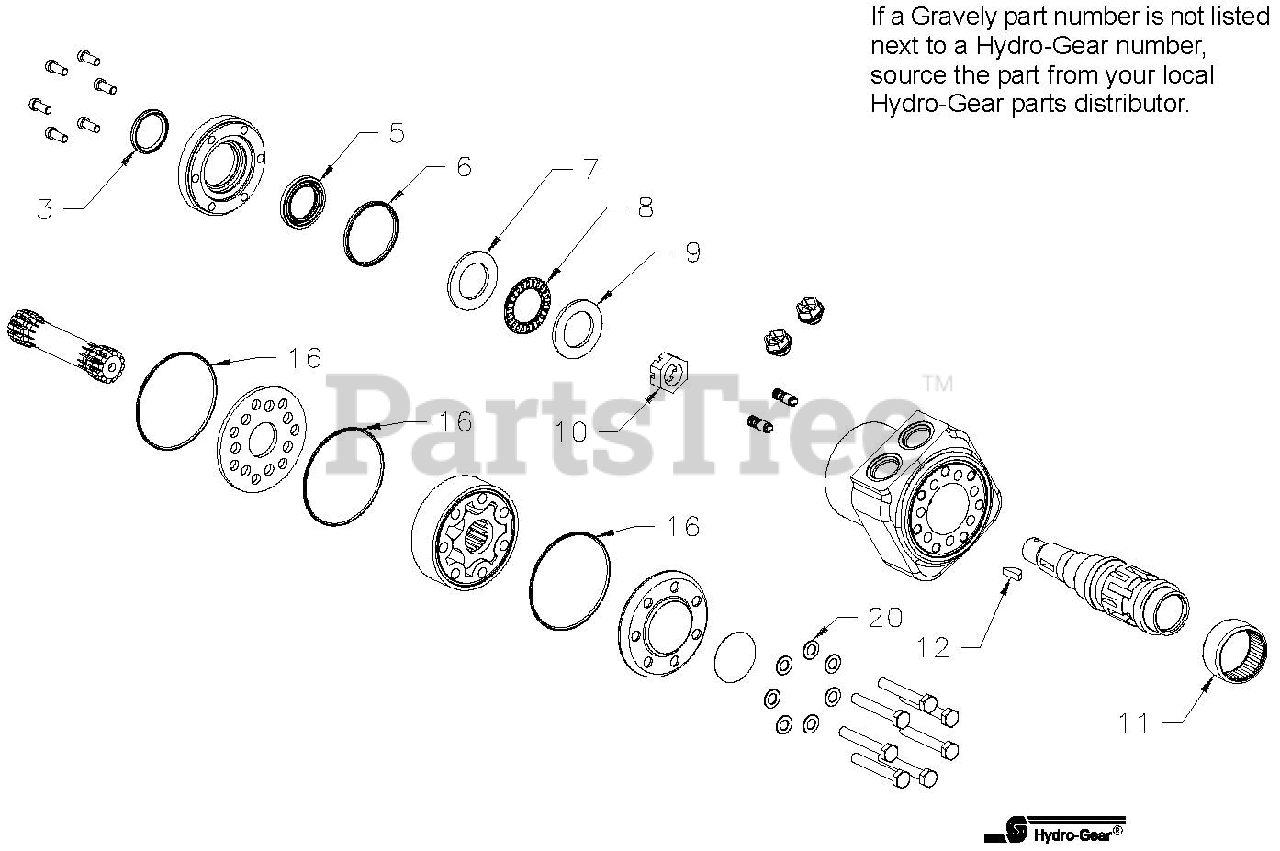

Hydro-Gear Wheel Motor Parts Diagram

  • Title

10

Nut, Castle .75-20 Slotted Hex

Note: 51869

$

$

Not available

12

Key, Woodruff .1875 x .75

Note: 51871

$

$

Not available

NS

Seal Kit

Note: Hydro-Gear p/n 70626-1 (includes 3, 5, 6, 16 and 20) (Serial No. 5146M10001 and below)

$

$

Not available

NS

Seal Kit

Note: Hydro-Gear p/n 70626-2 (includes 3, 5, 6, 16 and 20) (Serial No. 5146M10001 and up)

$

$

Not available

NS

Kit, Axial Needle Bearing HGM P-Series

Note: Hydro-Gear p/n 71501 (includes 7, 8, 9 and 11)

$

$

Not available
