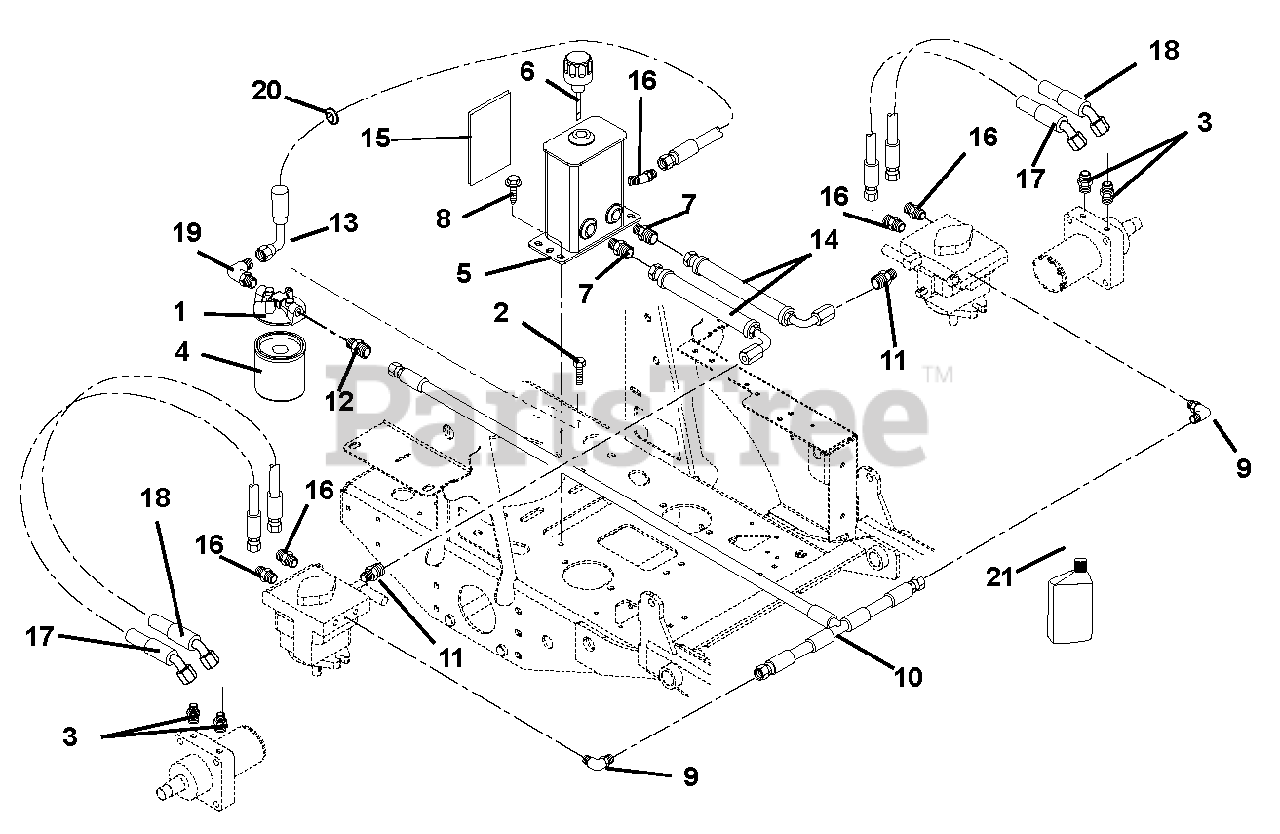

991043 (PM 34M) - Gravely Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 003000 & Above) Hydraulic Tank, Filter, Motors And Pump to Tank Circuit Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

Hydraulic Tank, Filter, Motors And Pump to Tank Circuit Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901918)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 07062100

Adapter, Hydraulic

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 00669300

Oil Filter

$29.99

$

In Stock, only 2 left!

0

5

Gravely 02985351

Weldment, Formed Hydraulic Tank - 3 Port

$174.99

$

Usually ships in 4-12 days

0

6

Gravely 00463000

Breather Dipstick

$51.99

$

In Stock, only 1 left!

0

7

Gravely 07000012

Fitting, Hydraulic Straight M8O-M4F

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.99

$

In Stock, Qty 15

0

9

Gravely 07063600

Adapter, Hydraulic 8MB-12FPX90

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 00669400

Hose, Hydraulic .50 to .38 Tee Assembly

$141.99

$

Usually ships in 4-12 days

0

11

Gravely 07063800

Fitting, Hydraulic (4-6 F5OLO)

Note: (4-6 F5OLO)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 07059900

Adapter, Face Seal 8 x 8 .50 O-Ring

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 00393900

Hose, Hydraulic .50-11-OK F8F0-F9F9

$

$

Not available

14

Gravely 00275600

Hose, Hydraulic

$78.99

$

In Stock, only 3 left!

0

15

Gravely 09286900

Shield, Heat 5.50 x 4.50

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 07059900

Adapter, Face Seal 8x8 1/2 O-Ring 8 F5OLO, Steel

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 00357300

Hose, Hydraulic .50-11-3K

$105.99

$

In Stock, only 3 left!

0

18

Gravely 00357400

Hose, Hydraulic .50-12-3K

$118.99

$

In Stock, only 4 left!

0

19

Gravely 07069600

Fitting, Hydraulic EL M8F-M80

$35.99

$

Usually ships in 4-12 days

0

20

Gravely 07536800

Grommet, 1.25ID x 1.50OD

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 00057100

Fluid, Hydraulic 15W50 Quart

$14.99

$

In Stock, Qty 20+

0
