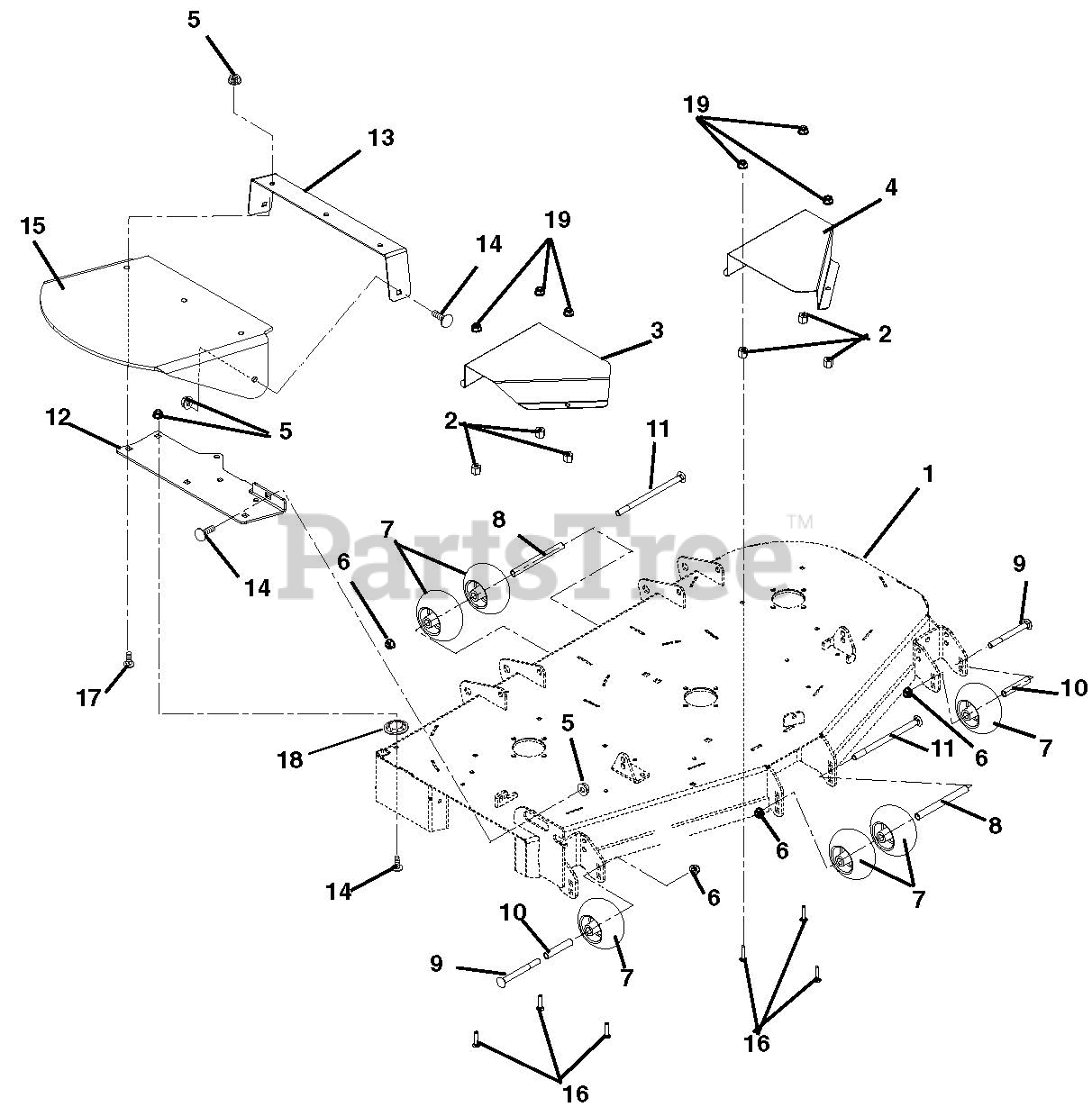

991052 (ZT 2344 HD) - Gravely 44" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

44" Zero-Turn Mower, 23hp Kohler

Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

  • Title

1

Gravely 02989253

Weldment, 60" Side Discharge Deck
(Superseded to 59102300)

Note: (991041, 055, 057)

$

$

Not available

1

Gravely 02984853

Weldment, 52" Side Discharge Deck
(Superseded to 59102400)

Note: (991054, 066)

$

$

Not available

1

Gravely 02987053

44" Side Discharge Deck Weldment
(Superseded to 59102600)

Note: (991052)

$969.99

$

Usually ships in 4-12 days

0

1

Gravely 02986453

48" Side Discharge Deck Weldment
(Superseded to 59102500)

Note: (991053)

$1161.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.99

$

In Stock, Qty 16

0

3

Gravely 03777953

Guard, 60" Right Hand Spindle Sheave

Note: (991041, 055, 057)

$74.99

$

Usually ships in 4-12 days

0

3

Gravely 03781253

Guard, 48"-52" Right Hand Spindle Sheave Guard

Note: (991052, 053, 054, 066)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 03777853

Guard, 60" Left Hand Spindle Sheave

Note: (991041, 055, 057)

$83.99

$

Usually ships in 4-12 days

0

4

Gravely 03781153

Guard, 44"-52" Left Hand Spindle Sheave

Note: (991052, 053, 054, 066)

$71.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 00473600

Anti-Scalp Wheel
(Superseded to 03905900)

$13.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

Spacer

$22.99

$

In Stock, Qty 20+

0

9

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$

$

Not available

10

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 03757253

Plate, Discharge Chute Support

$87.99

$

In Stock, only 1 left!

0

13

Gravely 03757153

Rubber Discharge Chute Support

$94.99

$

In Stock, only 1 left!

0

14

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

15

Gravely 00377800

Chute, Rubber Discharge

$93.99

$

In Stock, only 2 left!

0

16

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, only 2 left!

0

17

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 00548400

Retainer, .38 Push-On

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0
