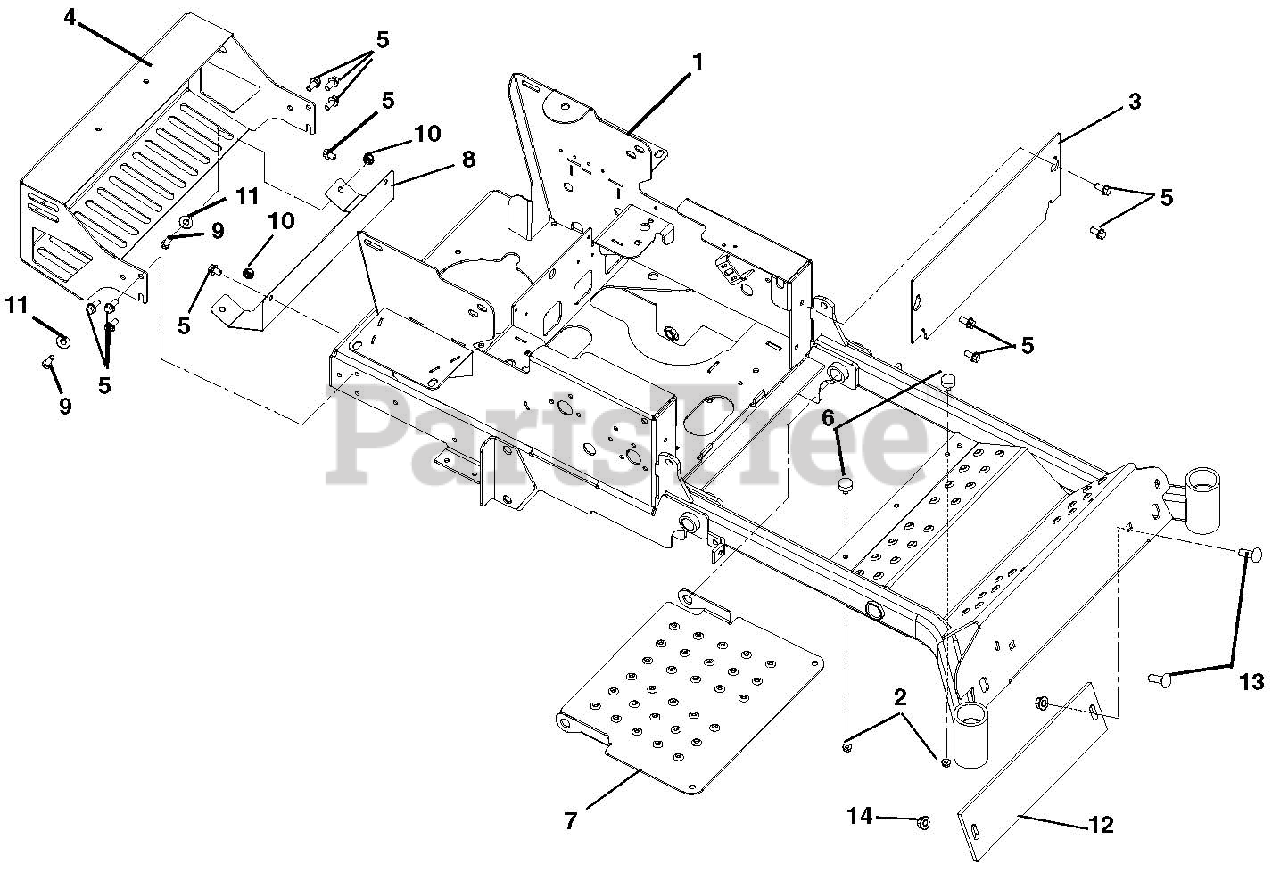

991053 (ZT 2348 HD) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Frame Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

Frame Parts Diagram

  • Title

1

Gravely 03735251

52-60" Main Frame

Note: (991041, 054, 055, 057, 066)

$

$

Not available

1

Gravely 03777751

44-48" Main Frame Weldment

Note: (991052, 053)

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 02989053

Kick Plate

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 02988751

Weldment Gravely, CZ Bumper

$184.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

7

Gravely 00298953

Panel, Inspection

$

$

Not available

8

Gravely 00462351

Heat Shield

$51.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01922853

Counterwieght CZ Front- Red

Note: (991052, 053)

$38.99

$

Usually ships in 4-12 days

0

13

Gravely 06224800

Bolt, Round Head Square Neck .50-13 x 1.75 Grade 5
(Superseded to 06200330)

Note: (991052, 053)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

Note: (991052, 053)

$1.99

$

In Stock, Qty 20+

0
