991056 (2560) - Ariens Max-Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Electrical System Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 25hp Kohler

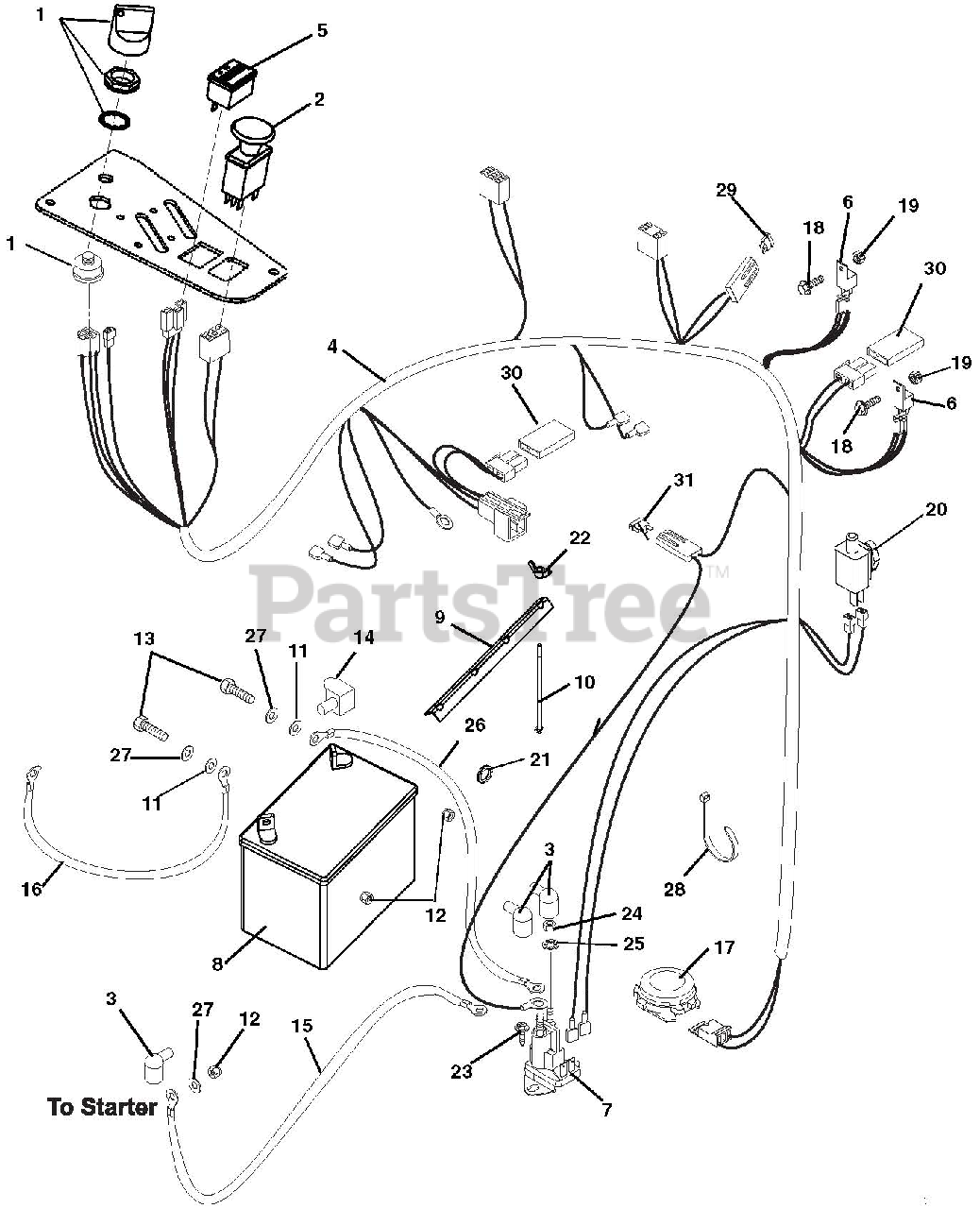

Electrical System Parts Diagram

  • Title

1

Ariens 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$44.99

$

In Stock, Qty 20+

0

1

Ariens 09287000

KEY, W/ SHIELD

Note: Not Shown ( Component Service Part )

$17.99

$

In Stock, Qty 20+

0

2

Ariens 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

3

Ariens 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 9

0

4

Ariens 03288500

HARNESS - CZ REMOTE SOL.
(Superseded to 04762400)

$184.99

$

In Stock, only 4 left!

0

5

Ariens 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

6

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

7

Ariens 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

8

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

9

Ariens 03494051

HOLD DOWN

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$5.49

$

In Stock, Qty 16

0

11

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

12

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

13

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

14

Ariens 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

15

Ariens 03286000

CABLE-POSITIVE BATTERY 9.00"

$9.99

$

In Stock, only 3 left!

0

16

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$20.99

$

In Stock, only 3 left!

0

17

Ariens 03654200

SWITCH- SEAT

$15.99

$

In Stock, only 3 left!

0

18

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03252300

SWITCH, SINGLE POLE N.O.

Note: (N.O.)

$14.99

$

In Stock, Qty 7

0

21

Ariens 07500036

GROMMET, 2.12" ID BUNA-N

$

$

Not available

22

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

23

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, Qty 10

0

25

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03492500

CABLE, STARTER .31X23.00X.31

$25.99

$

In Stock, only 1 left!

0

27

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

28

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

29

Ariens 00580600

FUSE 20AMP

$6.99

$

In Stock, Qty 12

0

30

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

31

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 14

0
