991056 (2560) - Ariens Max-Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 25hp Kohler

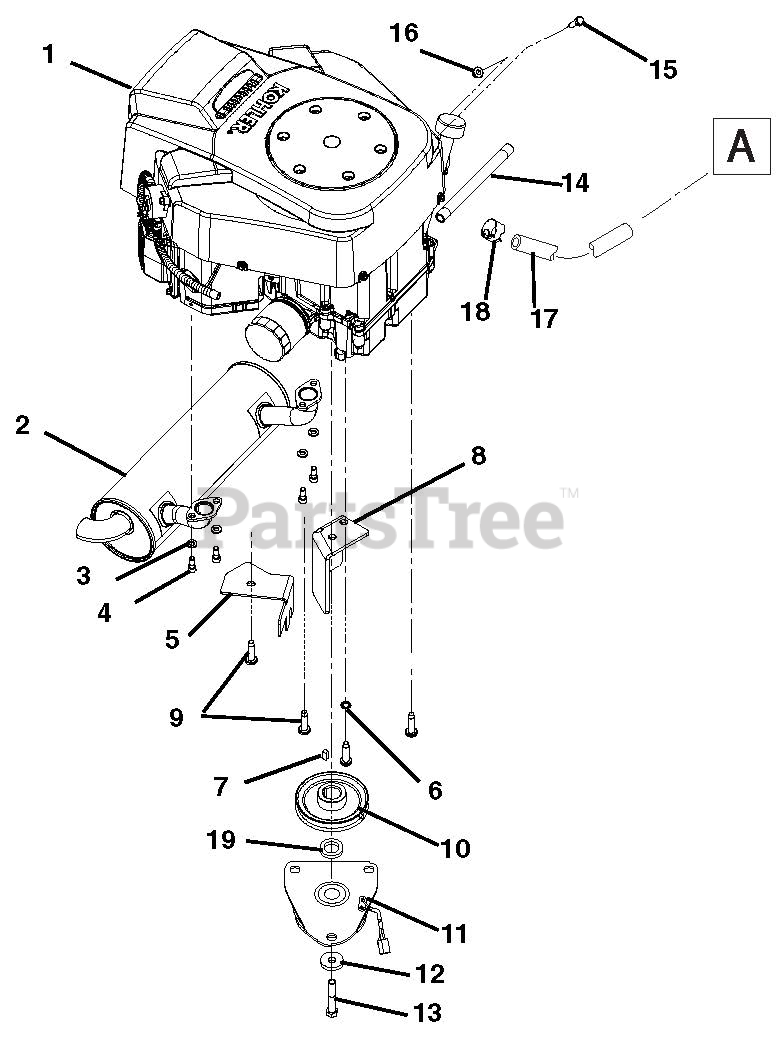

Engine And Clutch Parts Diagram

  • Title

1

Ariens 08200426

ENGINE, COURAGE 25HP

$

$

Not available

2

Ariens 00470400

MUFFLER, KOHLER TWIN

$218.99

$

In Stock, only 3 left!

0

3

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.99

$

In Stock, Qty 20+

0

5

Ariens 03772951

GUARD, HD CLUTCH WIRE

$33.99

$

In Stock, only 1 left!

0

6

Ariens 06308700

@WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 8

0

8

Ariens 03766851

ANCHOR - OGURA CLUTCH - HD

$38.99

$

In Stock, only 2 left!

0

9

Ariens 07000104

BLT, TAP .38-16X1.5 PH TRX YZ

$3.99

$

In Stock, only 1 left!

0

10

Ariens 07300436

SHEAVE, 4.831 X 1.002 ENGINE
(Superseded to 07331767)

$118.99

$

In Stock, only 2 left!

0

11

Ariens 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$383.99

$

In Stock, only 2 left!

0

12

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

13

Ariens 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$14.99

$

In Stock, only 1 left!

0

14

Ariens 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$51.99

$

Usually ships in 4-12 days

0

15

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

16

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05500202

SPACER 1.002ID X 1.75 OD X.266

$5.49

$

Usually ships in 4-12 days

0
