991058 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Belts, Spindles, Idlers And Blades - 44" And 48" Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

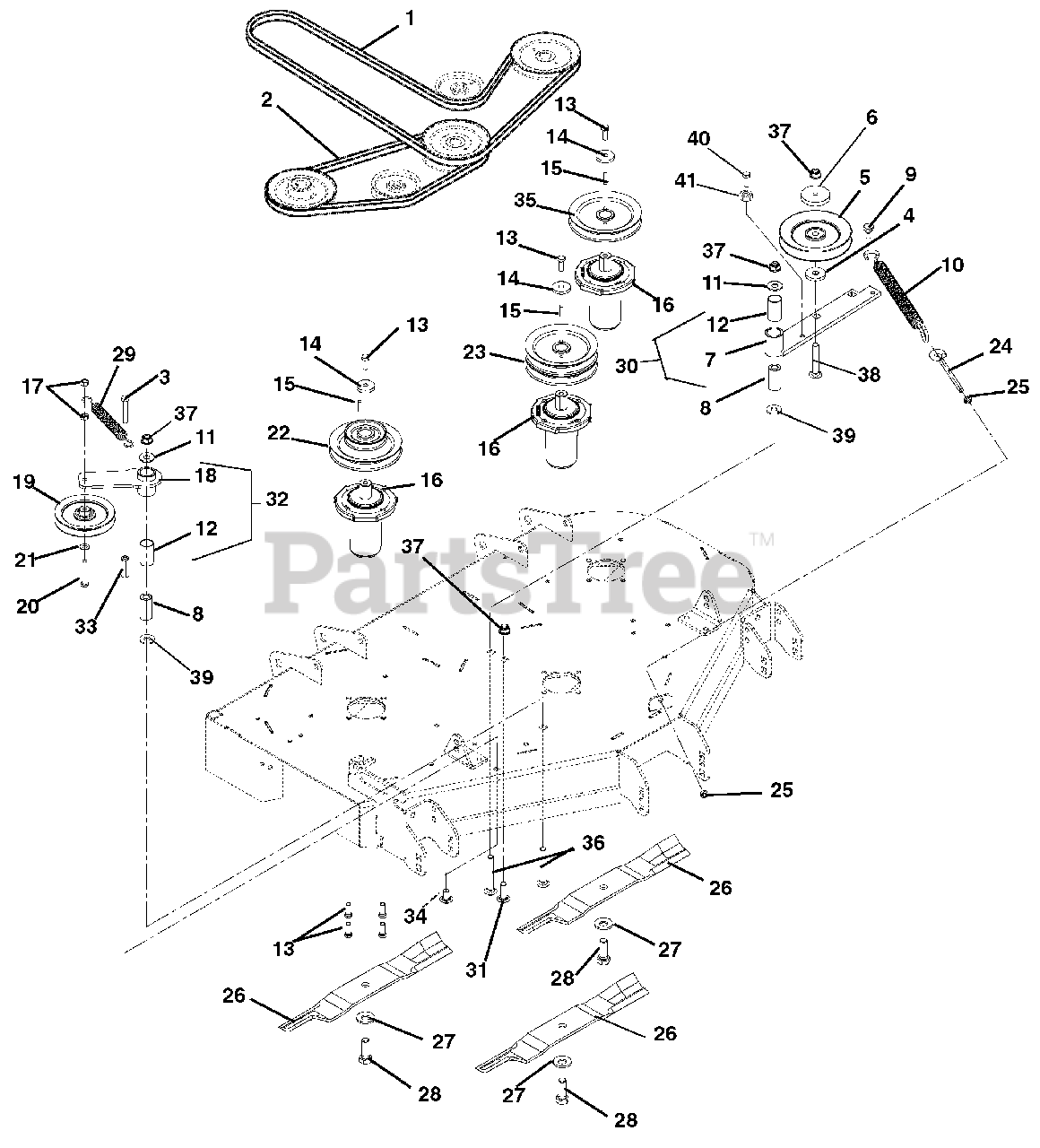

Belts, Spindles, Idlers And Blades - 44" And 48" Parts Diagram

  • Title

1

Gravely 07200026

HEX BELT, BB-WRAPPED

Note: (991058)

$134.99

$

In Stock, Qty 18

0

1

Gravely 07200025

HEX BELT, BB-WRAPPED

Note: (991059)

$119.99

$

In Stock, Qty 11

0

2

Gravely 07200035

V-BELT, B-COGGED

$55.99

$

In Stock, Qty 12

0

3

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

4

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 20+

0

5

Gravely 07300429

PLY-V 6.0 X .500 ID SNGL BRG.
(Superseded to 07300527)

$54.99

$

In Stock, Qty 20+

0

6

Gravely 00450100

CAP, IDLER BEARING SEALING

$15.99

$

In Stock, Qty 10

0

7

Gravely 03774251

WMT, IDLER ARM

$70.99

$

In Stock, Qty 7

0

8

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

9

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 17

0

10

Gravely 08300030

SPRING, EXTENSION
(Superseded to 08300505)

Note: (Deck Idler)

$27.99

$

In Stock, Qty 20+

0

11

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

13

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

16

Gravely 69219700

ASSEMBLY, SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

17

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03774100

WMT, IDLER ARM
(Superseded to 03774151)

$52.99

$

In Stock, Qty 12

0

19

Gravely 07300015

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

20

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07300029

SHV,DBL 1,0"ID X 5.50"&3.50"OD
(Superseded to 07329467)

$102.99

$

In Stock, Qty 6

0

23

Gravely 07300031

SHV,DOUBLE 1.0"ID X 5.50" OD
(Superseded to 07329267)

$82.99

$

In Stock, Qty 13

0

24

Gravely 07000030

BOLT, .38-16X4.50 .62 DIA EYE
(Superseded to 07001604)

$7.49

$

In Stock, Qty 20+

0

25

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

27

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

28

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

29

Gravely 08300433

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

30

Gravely 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (Includes item 7 and item 12)

$81.99

$

In Stock, only 4 left!

0

31

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, Qty 6

0

32

Gravely 03796400

ASM, IDLER ARM (DECK)

Note: (Includes item 12 and item 18)

$64.99

$

In Stock, Qty 12

0

33

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

34

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 07300030

SHV,SINGLE 1.0"ID X 5.50" OD
(Superseded to 07329367)

$72.99

$

In Stock, Qty 17

0

36

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

37

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5YZ

$6.49

$

In Stock, Qty 18

0

39

Gravely 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

40

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

41

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0
