991058 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers - 44" And 48" Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

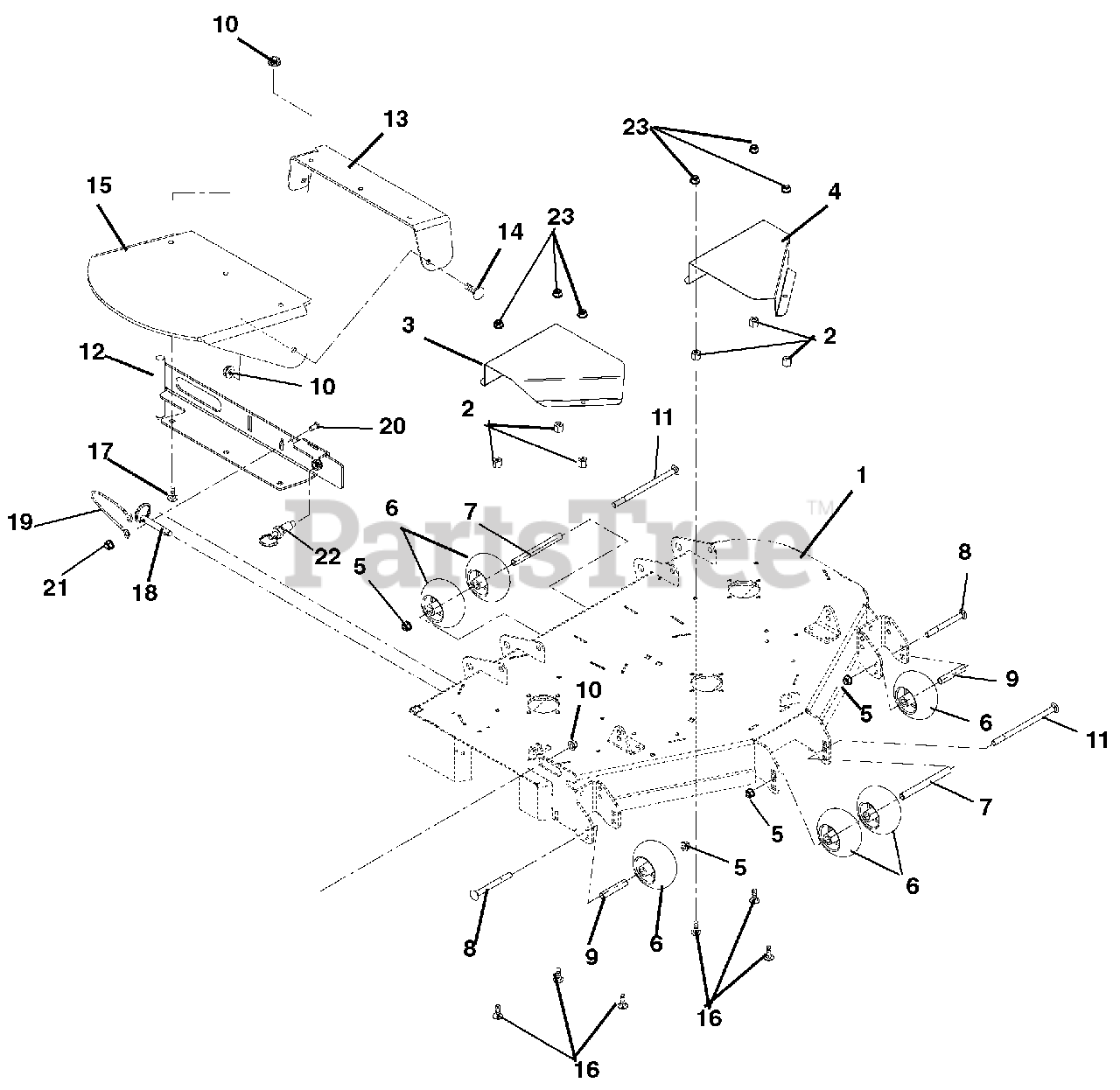

Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers - 44" And 48" Parts Diagram

  • Title

1

Gravely 02987053

44" SIDE DISCH DECK WMT - RED
(Superseded to 59102600)

$969.99

$

Usually ships in 4-12 days

0

1

Gravely 02986453

48" SIDE DISCH DECK WMT - RED
(Superseded to 59102500)

$1161.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03781253

GUARD, 48-52 SPINDLE SHEAVE

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 03781153

GUARD, 44-52 LH SPINDLE SHEAVE

$71.99

$

Usually ships in 4-12 days

0

5

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 00473600

WHEEL, ANTI SCALP
(Superseded to 03905900)

$13.99

$

In Stock, Qty 20+

0

7

Gravely 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0

8

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

9

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 00472453

44"-48" DISCH CHUTE MTG WMT-RD
(Superseded to 04757453)

$115.99

$

In Stock, only 4 left!

0

13

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$127.99

$

In Stock, only 1 left!

0

14

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

16

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0

19

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

$6.49

$

In Stock, only 2 left!

0

20

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

21

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 17

0

22

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

23

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0
