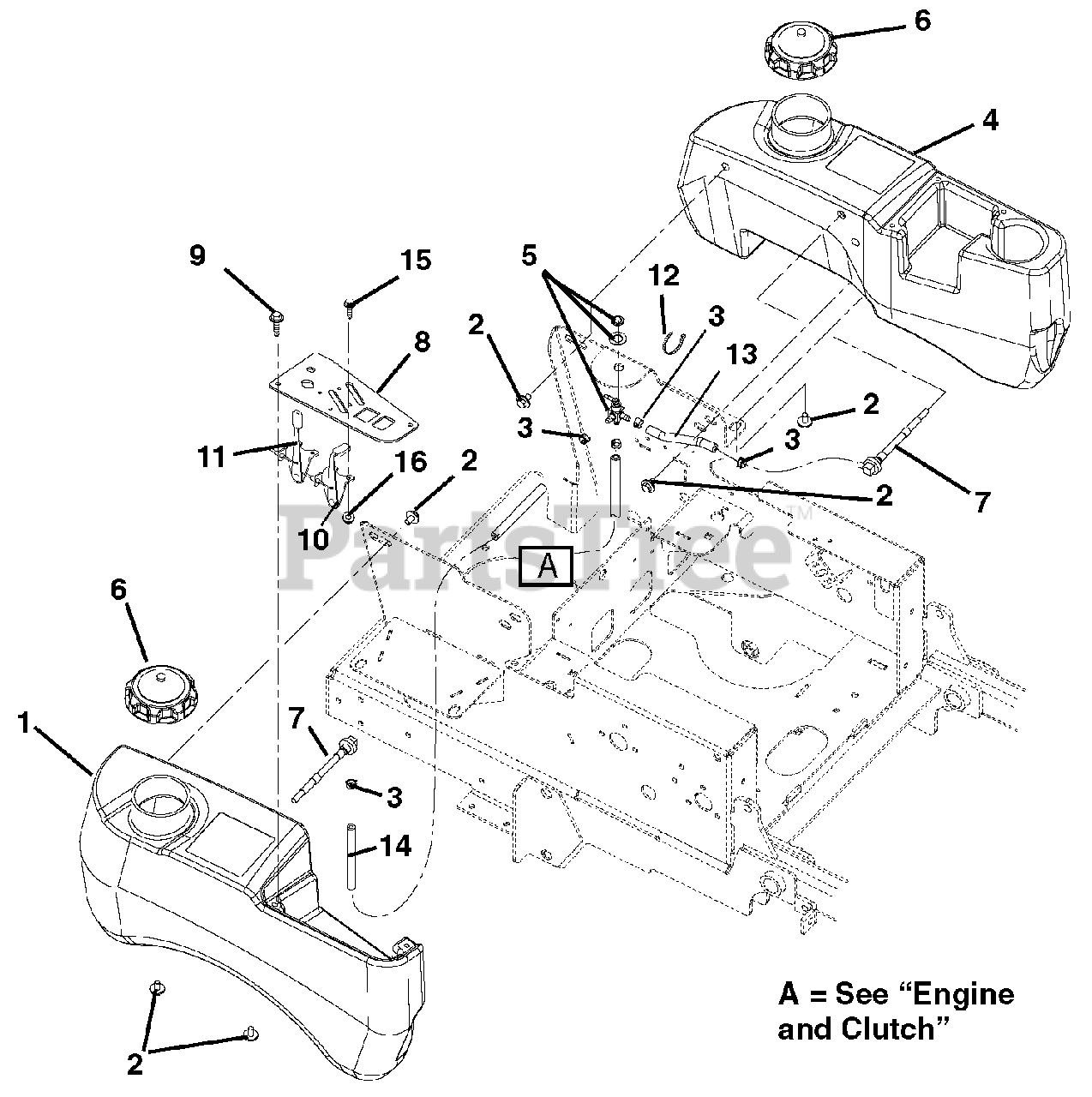

991058 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 00445900

TANK, GAS RH (100 SERIES)

$395.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00191100

TANK, LH FUEL 100 S. W/O HOSE

$281.99

$

Usually ships in 4-12 days

0

5

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 18

0

6

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 03900300

ASS'Y,MEDIUM TANK FUEL PICK-UP
(Superseded to 04320900)

$40.99

$

In Stock, Qty 11

0

8

Gravely 00453951

PANEL, CONTROL IZ - BLACK

$27.99

$

Usually ships in 4-12 days

0

9

Gravely 06100137

SCR-MCH 10-24X.50 HWHSTAINLESS

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06900336

CABLE, CONTROL

$79.99

$

Usually ships in 4-12 days

0

11

Gravely 06900319

CABLE, THROTTLE OR CHOKE

$47.99

$

Usually ships in 4-12 days

0

12

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
