991059 (PM 48Z) - Gravely Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Steering Controls Parts Diagram

Pro-Master 48" Zero-Turn Mower, 19hp Kawasaki

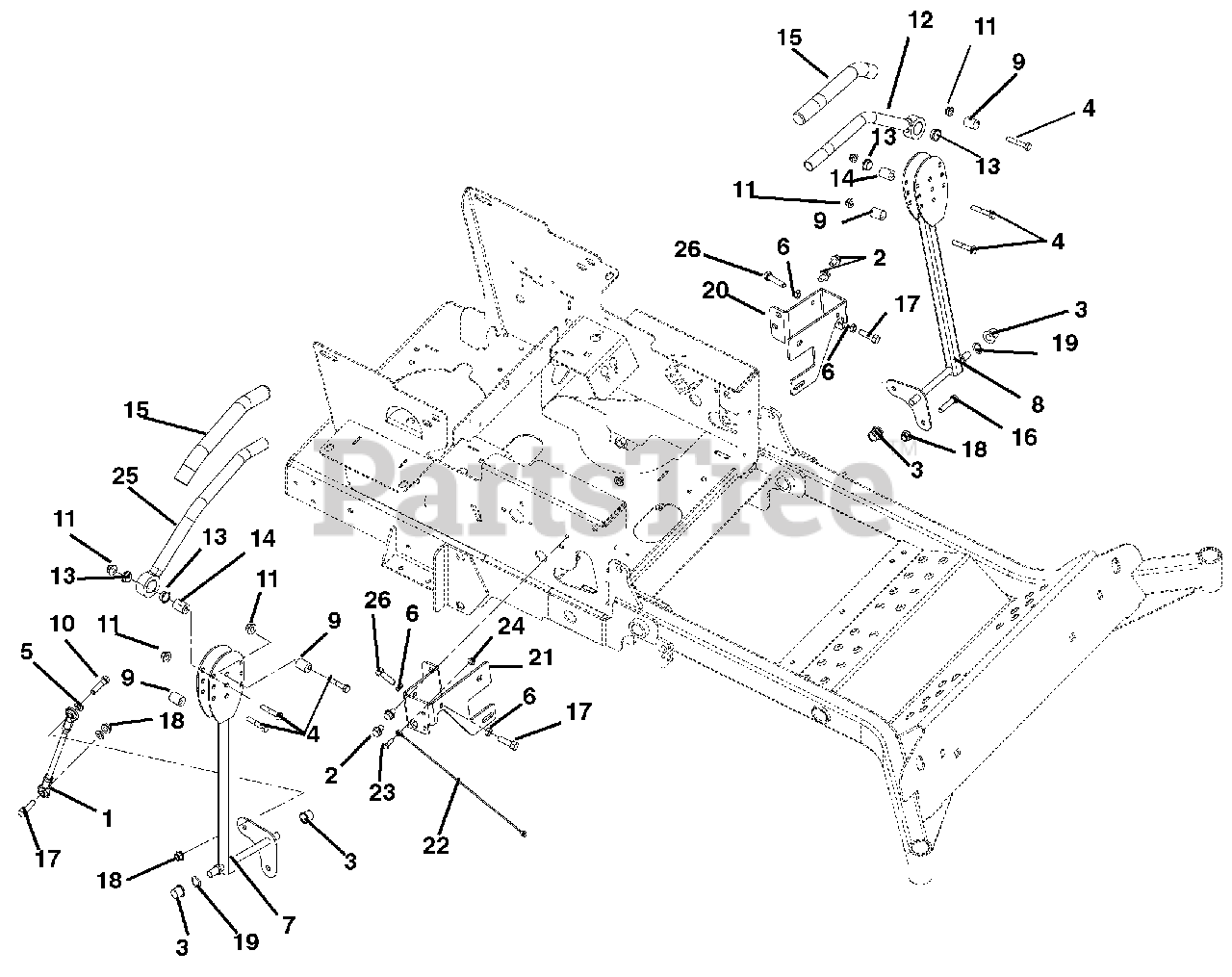

Steering Controls Parts Diagram

  • Title

1

Gravely 03251700

Assembly, Steering Linkage

$70.99

$

Usually ships in 4-12 days

0

2

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 05436800

Bushing .625 x .75 x .50

$9.99

$

In Stock, only 4 left!

0

4

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

5

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

6

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 8

0

7

Gravely 03773551

Weldment, RH Control Arm

$134.99

$

Usually ships in 4-12 days

0

8

Gravely 03773651

Weldment, LH Control Arm

$134.99

$

Usually ships in 4-12 days

0

9

Gravely 09235700

Eccentric

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

11

Gravely 06545400

Nut, Nyloc Flange .375-16
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

12

Gravely 09235500

Handle Weldment Left-Hand

$83.99

$

In Stock, only 4 left!

0

13

Gravely 05525200

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05501517)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 09235400

Spacer

$20.99

$

In Stock, only 1 left!

0

15

Gravely 00675200

Grip, Handlebar

$9.49

$

In Stock, only 2 left!

0

16

Gravely 05942200

Bolt, Hex .375-16 x 2.00 Full Thread

$2.99

$

In Stock, only 1 left!

0

17

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

18

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03704900

Wave Washer

$2.49

$

In Stock, only 4 left!

0

20

Gravely 03754751

Stop, Steering-Left Hand

$87.99

$

Usually ships in 4-12 days

0

21

Gravely 03752751

Stop, Steering-Right Hand

$82.99

$

Usually ships in 4-12 days

0

22

Gravely 06900317

Cable, 12.0 LANYARD, Nylon

$3.49

$

In Stock, only 2 left!

0

23

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

24

Gravely 06500012

Nut, Nyloc Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

25

Gravely 09235600

Handle Weldment Right-Hand

$90.99

$

In Stock, only 1 left!

0

26

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0
