991060 (PM 148i) - Gravely Pro-Master 48" Zero-Turn Mower, Kawasaki (SN: 000101 - 001999) Engine Parts Diagram

Pro-Master 48" Zero-Turn Mower, Kawasaki

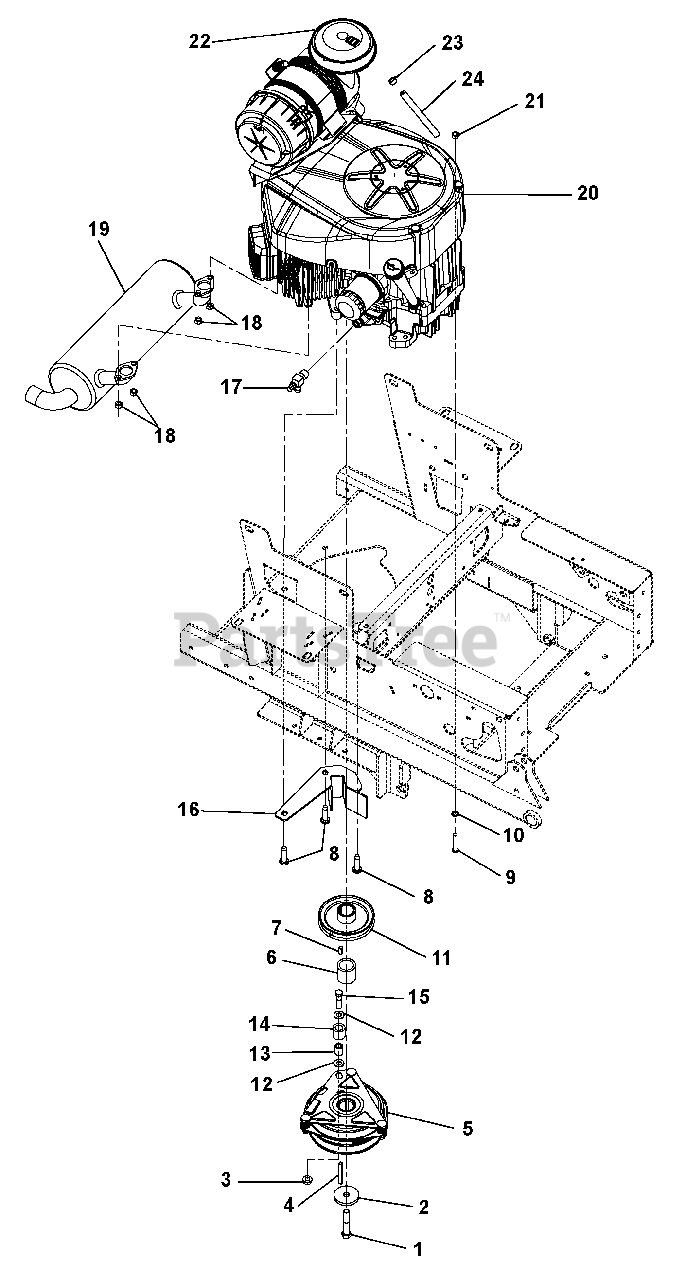

Engine Parts Diagram

  • Title

1

Gravely 05900036

Bolt, Hex .44-20 x 2.50 Grade 5

$13.99

$

In Stock, only 1 left!

0

2

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

3

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 18

0

4

Gravely 06610300

Key, .25 x .25 x 2.25

$2.99

$

In Stock, Qty 12

0

5

Gravely 03785000

Clutch, Ogura GT2.5-FE02

$455.99

$

In Stock, only 1 left!

0

6

Gravely 03829700

Spacer, 1.125 x 1.50 x 1.40

$20.99

$

In Stock, only 1 left!

0

7

Gravely 06602700

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, Qty 15

0

8

Gravely 07000104

Screw, Tapping Hex Washer Head .38-16 x 1.50

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 06307200

Washer, Locking-EXT.326 x .599 x .03
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 07300106

Sheave, 4.831 x 1.127
(Superseded to 07331667)

$

$

Not available

12

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 08905500

Bushing, S.407 x .625 x .813 Steel

$13.99

$

In Stock, only 1 left!

0

14

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG Engine

$5.99

$

In Stock, Qty 8

0

15

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

16

Gravely 03828051

100I Clutch Stop Weldment

$64.99

$

Usually ships in 4-12 days

0

17

Gravely 00429000

Drain, .50 Oil

$39.99

$

In Stock, only 1 left!

0

18

Gravely 06500018

Nut, Locking-Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

19

Gravely 09281600

Muffler, Kawasaki

$271.99

$

Usually ships in 4-12 days

0

20

Gravely 08200430

Engine, 23HP Kawasaki (060, 061)

Note: (060, 061)

$

$

Not available

Gravely 08200437

Engine, 25HP Kawasaki (067)

Note: (067)

$

$

Not available

21

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09408700

Cap, 2" Air Cleaner Intake

$56.99

$

Usually ships in 4-12 days

0

Gravely 03820900

CAP, 2.5" Air Cleaner Intake

$68.99

$

In Stock, only 2 left!

0

23

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 8

0

24

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$0.99

$

In Stock, Qty 20+

0

Gravely 03286700

Lead, Starter Solenoid

$9.49

$

In Stock, only 1 left!

0

Gravely 21537000

Air Filter Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

Gravely 21536900

Air Filter Element, Inner Safety

$28.99

$

In Stock, only 3 left!

0

Gravely 21535800

Filter, Oil- Kawasaki # 49065-2078
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

Gravely 21536100

Plug, Spark- Kawasaki P/N 92070-7004

$3.49

$

In Stock, Qty 20+

0

Gravely 21538400

Filter, Fuel- Kawasaki #49019-70
(Superseded to 21573800)

$12.99

$

In Stock, Qty 6

0
