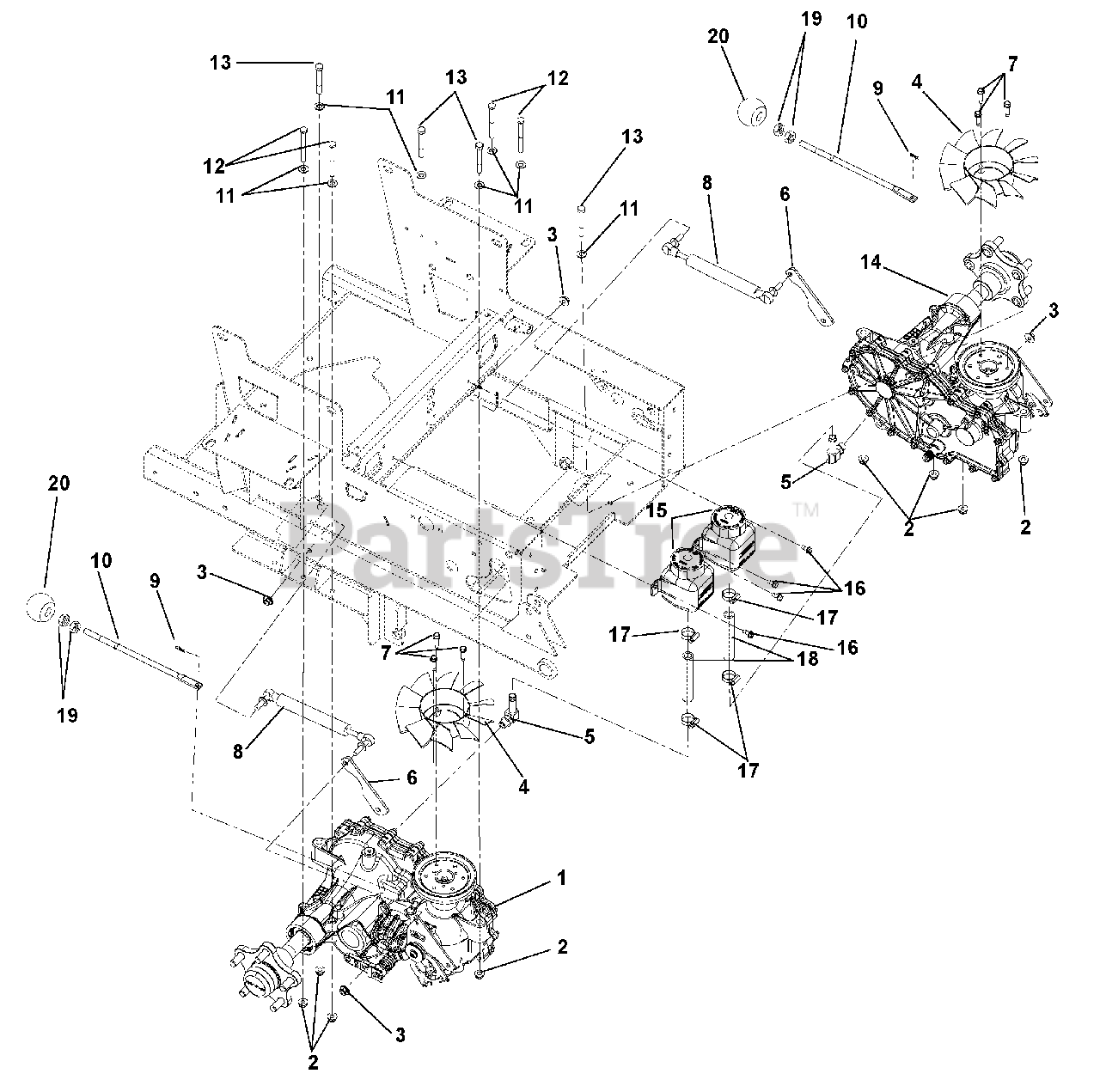

991060 (PM 148i) - Gravely Pro-Master 48" Zero-Turn Mower, Kawasaki (SN: 000101 - 001999) Transmission (Serial 002000 - ) Parts Diagram

Pro-Master 48" Zero-Turn Mower, Kawasaki

Transmission (Serial 002000 - ) Parts Diagram

  • Title

1

Gravely 03776400

Transaxle, Right Hand (Serial No. 002000 & up)
(Superseded to 09184700)

Note: (Serial No. 002000 & up)

$1939.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06500623

Nut, M8-1.25 Whiz Lock
(Superseded to 803-220C)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 03283500

Fan, 2800 Series Cooling

$40.99

$

In Stock, Qty 20+

0

5

Gravely 07001528

Fitting, Hydraulic (90 DEG)

Note: (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 03855000

Plate, Control Reforcement

$12.99

$

Usually ships in 4-12 days

0

7

Gravely 07412400

Screw, Tapping .25-20 x 1.00 Hex Washer Head Thread Rolling
(Superseded to 07400133)

$3.49

$

In Stock, Qty 14

0

8

Gravely 00188700

Damper

$100.99

$

In Stock, Qty 9

0

9

Gravely 06701900

Pin, Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

10

Gravely 03911900

Lever, 100I Dump Valve

$104.99

$

Usually ships in 4-12 days

0

11

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05962500

Bolt, Hex .31-18 x 3.00 Grade 5
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 03776500

Transaxle, Left Hand (Serial No. 002000 & up)
(Superseded to 09184600)

Note: (Serial No. 002000 & up)

$1706.99

$

Usually ships in 4-12 days

0

15

Gravely 03860200

Tank, Expansion ZT2800 (Serial No. 001000 & up)
(Superseded to 02970200)

Note: (Serial No. 001000 & up)

$38.99

$

In Stock, Qty 10

0

16

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06923500

Clamp, .88 Diameter Hose

$2.49

$

In Stock, Qty 6

0

18

Gravely 03832300

Hose, 100I Hydro Overflow

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07539800

Knob, Black Ball .312-18 x 1.00

$6.49

$

Usually ships in 4-12 days

0

Gravely 21545100

Oil Filter, 2800 Transmission

$42.99

$

Usually ships in 4-12 days

0

21

Gravely 03367200

Spcr, .406 ID x .630 OD x 7.724

Note: NOT SHOWN

$15.99

$

In Stock, only 4 left!

0

22

Gravely 05901315

Blt Hex, .38-16 x 11.00 GR5 YWZC
(Superseded to 05901921)

Note: NOT SHOWN

$8.49

$

In Stock, Qty 18

0

23

Gravely 06545500

@Nut-Lk-Nyl-Flg .38-16 YWZC
(Superseded to 06500726)

Note: NOT SHOWN

$1.99

$

In Stock, Qty 20+

0
