991060 (PM 148i) - Gravely Pro-Master 48" Zero-Turn Mower, Kawasaki (SN: 002000 & Above) Brake Assembly Parts Diagram

Pro-Master 48" Zero-Turn Mower, Kawasaki

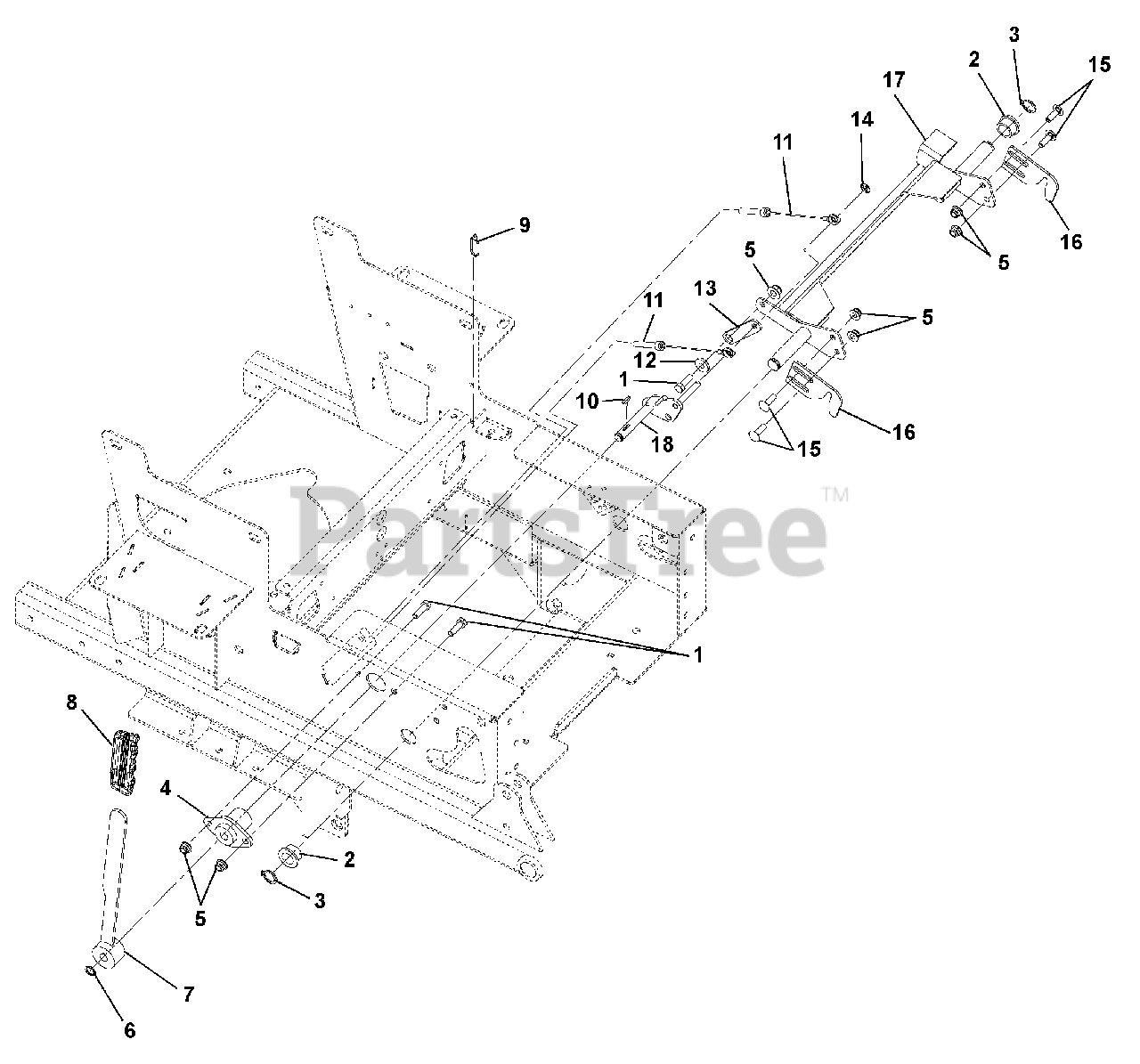

Brake Assembly Parts Diagram

  • Title

1

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

2

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 9

0

3

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

4

Gravely 01522000

BUSHING, FLANGED

$21.99

$

In Stock, only 1 left!

0

5

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

6

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 03795900

WMT - PARKING BRAKE ARM

$146.99

$

In Stock, only 1 left!

0

8

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, Qty 8

0

9

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

10

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

11

Gravely 06900318

CABLE, BRAKE ACTUATING

$40.99

$

In Stock, only 2 left!

0

12

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

13

Gravely 03780900

PLATE, NEUTRAL INTERLOCK

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

15

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

16

Gravely 03861451

NEUTRAL LOCK LATCH - BLACK

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 03878700

WMT, PT100 NEUTRAL LOCK

$142.99

$

Usually ships in 4-12 days

0

18

Gravely 03251100

WMT, PARK BRAKE ARM

$62.99

$

Usually ships in 4-12 days

0
