991062 (PM 148i) - Gravely Pro-Master 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Deck and Mounting Arms Parts Diagram

Pro-Master 48" Zero-Turn Mower, Kawasaki

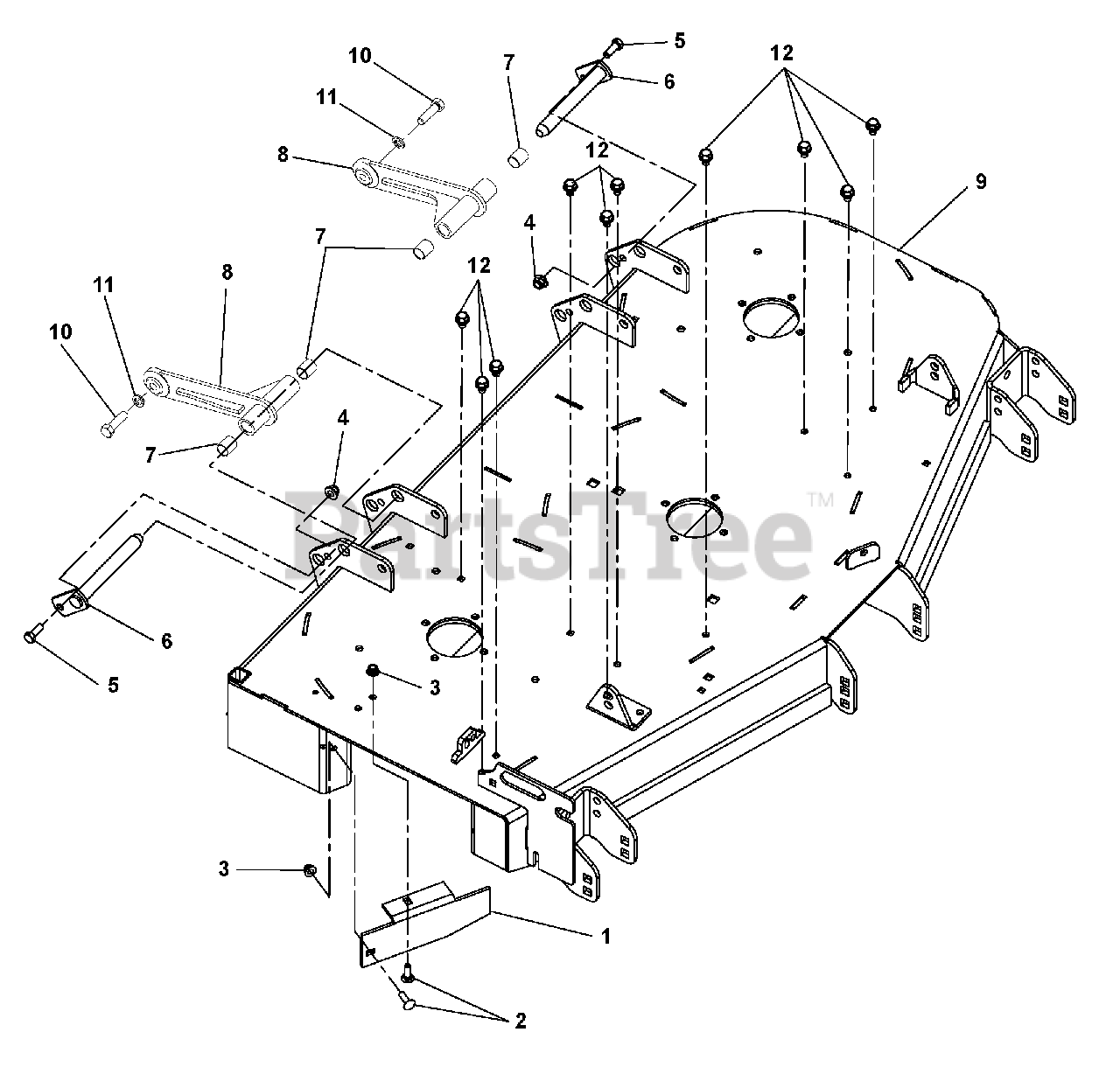

Deck and Mounting Arms Parts Diagram

  • Title

1

Gravely 00451653

44" - 48" Rear Discharge Baffle (062)

Note: (062)

$41.99

$

Usually ships in 4-12 days

0

Gravely 00440853

52" Discharge Baffle (063)

Note: (063)

$37.99

$

Usually ships in 4-12 days

0

Gravely 00374153

60" Discharge Baffle (064)

Note: (064)

$39.99

$

In Stock, only 1 left!

0

2

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

3

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 10

0

4

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05948700

Bolt, Hex .38-16X1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09238900

Weldment, Mower Mounting Pin

$60.99

$

In Stock, only 2 left!

0

7

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, Qty 10

0

8

Gravely 02989151

Deck Pusher Arm Weldment

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 03841153

48" 100I Side Discharge Deck (062)

Note: (062)

$

$

Not available

Gravely 03841253

52" 100I Side Discharge Deck (063)

Note: (063)

$

$

Not available

Gravely 03841353

60" 100I Side Discharge Deck (064)
(Superseded to 03980553)

Note: (064)

$

$

Not available

10

Gravely 05970600

Bolt, Hex .50-13 x 1.75 Grade 5
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

11

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

12

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0
