991062 (PM 148i) - Gravely Pro-Master 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Seat Assembly Parts Diagram

Pro-Master 48" Zero-Turn Mower, Kawasaki

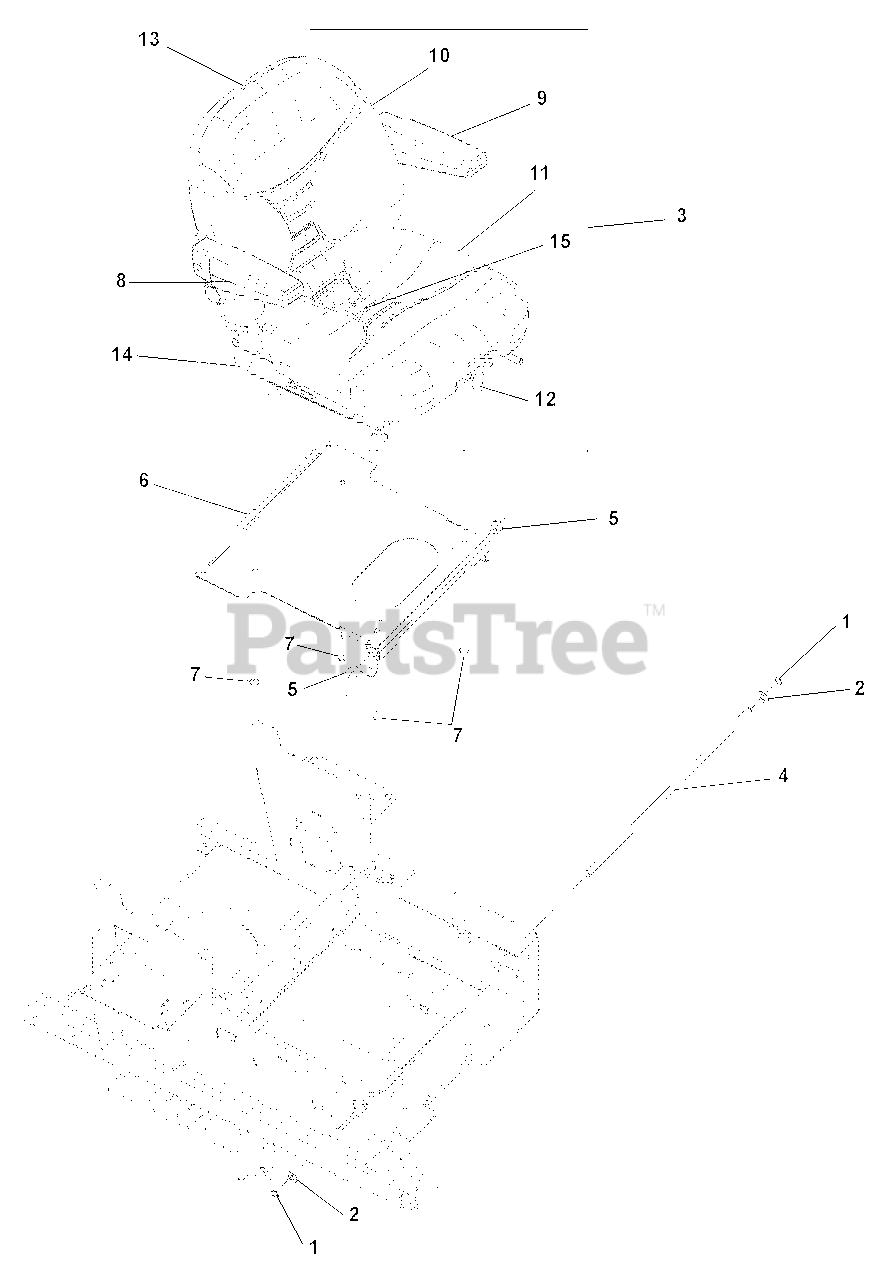

Seat Assembly Parts Diagram

  • Title

1

Gravely 05717100

Ring, Retaining-External .500 x .050

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 06425300

Washer, Flat Steel .531 x 1.00 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 7

0

3

Gravely 03947200

Seat, Suspension- Light Gray

$905.99

$

Usually ships in 4-12 days

0

4

Gravely 03837800

Shaft, 100I Seat Pivot

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 05500901

Bushing, Flange .516 x .750 x .625 x .937

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 03785251

100I Seat Plate Weldment

$85.99

$

Usually ships in 4-12 days

0

7

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 59210400

Kit, Right Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

9

Gravely 59210500

Kit, Left Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

10

Gravely 59208800

Kit, Back Cushion, Light Grey

$423.99

$

Usually ships in 4-12 days

0

11

Gravely 59208900

Kit, Seat Cusion, Light Grey

$258.99

$

In Stock, only 3 left!

0

12

Gravely 59208000

Kit, Seat Knobs

$33.99

$

Usually ships in 4-12 days

0

13

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

14

Gravely 59207900

Kit, Seat Slides

$

$

Not available

15

Gravely 59207800

Kit, Seat Spring and Saddle

$175.99

$

In Stock, only 1 left!

0
