991063 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

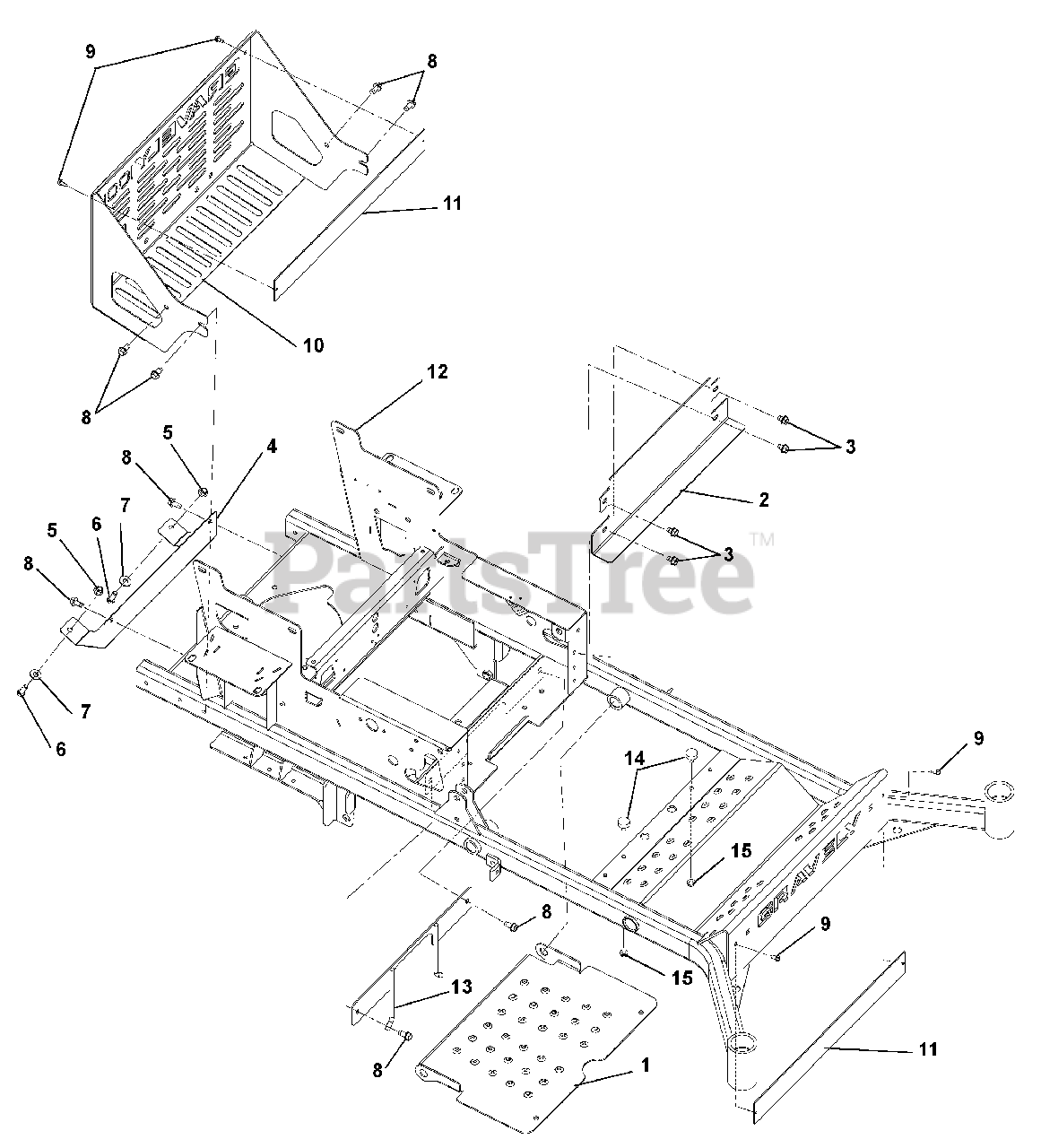

Frame Parts Diagram

  • Title

1

Gravely 03765753

100I FOOT PLATE - RED

$

$

Not available

2

Gravely 03765953

100I KICK PLATE - RED

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 00462351

SHIELD - HEAT - CZ PROD

$52.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03766951

GRAVELY 100I BUMPER - BLACK

$224.99

$

Usually ships in 4-12 days

0

11

Gravely 03828553

BUMPER NAME BACKER PLATE - RED

$

$

Not available

12

Gravely 03742951

100I 60" MAIN FRAME WMT - BLK

Note: (064)

$

$

Not available

Gravely 03834051

100I 48"-52"MAIN FRAME WMT-BLK

Note: (062, 063)

$

$

Not available

13

Gravely 03837651

100I PTO BELT FINGER WMT - BLK

$

$

Not available

14

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 3 left!

0

15

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0
