991063 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Seat Assembly Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

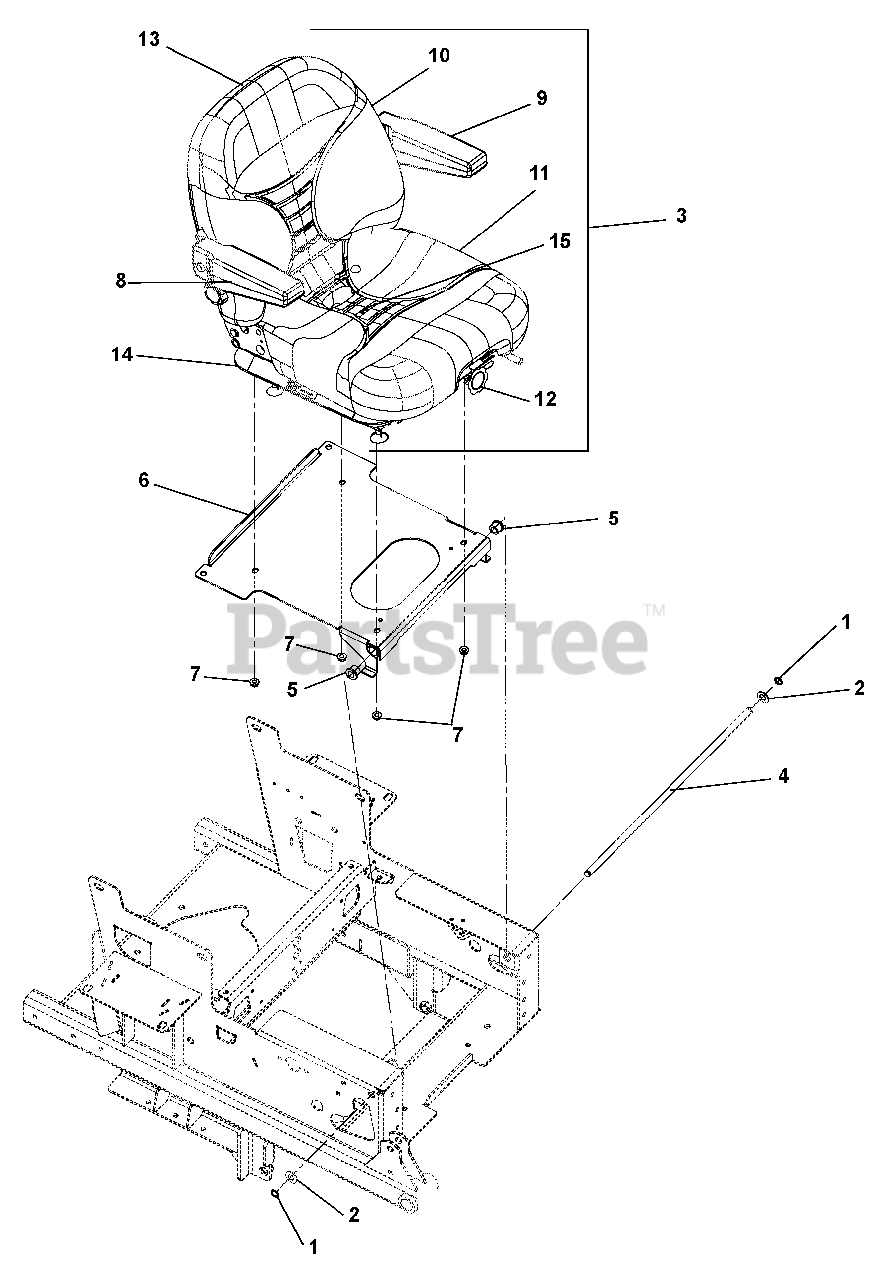

Seat Assembly Parts Diagram

  • Title

1

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 14

0

2

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$1.49

$

In Stock, Qty 15

0

3

Gravely 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

$967.99

$

Usually ships in 4-12 days

0

4

Gravely 03837800

SHAFT, PT100 SEAT PIVOT

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.99

$

In Stock, only 2 left!

0

6

Gravely 03785251

100I SEAT PLATE WMT - BLACK

$90.99

$

Usually ships in 4-12 days

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$148.99

$

Usually ships in 4-12 days

0

9

Gravely 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$148.99

$

Usually ships in 4-12 days

0

10

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$451.99

$

Usually ships in 4-12 days

0

11

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$275.99

$

In Stock, only 2 left!

0

12

Gravely 59208000

KIT-SEAT KNOB

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 59208100

KIT-SEAT BACK PANEL

$187.99

$

Usually ships in 4-12 days

0

14

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

15

Gravely 59207800

KIT-SPRING AND SADDLE

$195.99

$

Usually ships in 4-12 days

0
