991063 (PM 152i) - Gravely Pro-Master 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Transmission Parts Diagram

Pro-Master 52" Zero-Turn Mower, Kawasaki

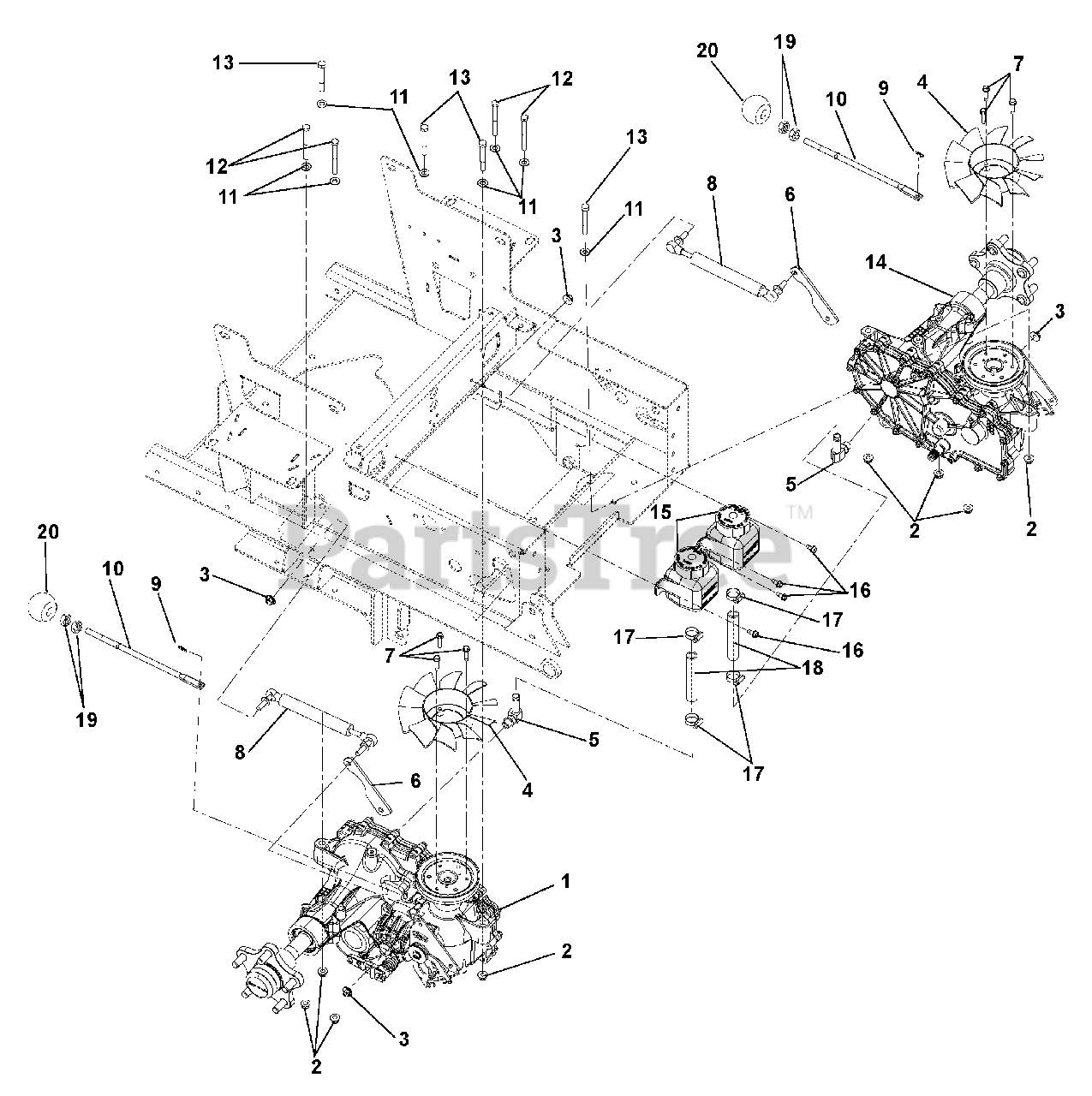

Transmission Parts Diagram

  • Title

1

Gravely 03776400

TRANSAXLE, RH 3400
(Superseded to 09184700)

$2026.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06500623

NUT, M8-1.25 WHIZ LOCK YWZC
(Superseded to T803-220C)

$

$

Not available

4

Gravely 03283500

FAN, 2800 SERIES COOLING

$21.99

$

In Stock, Qty 13

0

5

Gravely 07001528

FITTING, HYD (90 DEG)

Note: (90 DEG)

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 03855000

PLATE, CONTROL REINFORCEMENT

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 07412400

SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 00188700

DAMPER

$104.99

$

In Stock, only 1 left!

0

9

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$1.49

$

In Stock, Qty 7

0

10

Gravely 03911900

LEVER, PT100 DUMP VALVE

$121.99

$

Usually ships in 4-12 days

0

11

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$2.49

$

In Stock, Qty 18

0

14

Gravely 03776500

TRANSAXLE, LH 3400
(Superseded to 09184600)

$1706.99

$

In Stock, only 1 left!

0

15

Gravely 02970200

TANK, EXPANSION ZT2800

$30.99

$

In Stock, Qty 9

0

16

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.99

$

In Stock, Qty 7

0

18

Gravely 03832300

HOSE, 100I HYDRO OVERFLOW

$6.99

$

In Stock, only 1 left!

0

19

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.99

$

In Stock, Qty 11

0

20

Gravely 07539800

KNOB-BALL-BLACK .312-18 X 1.00

$6.99

$

Usually ships in 4-12 days

0

NS

Gravely 21545100

OIL FILTER, TRANSMISSION

$44.99

$

Usually ships in 4-12 days

0
