991067 (PM 160i) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki (SN: 000101 - 001999) Fuel Tanks Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki

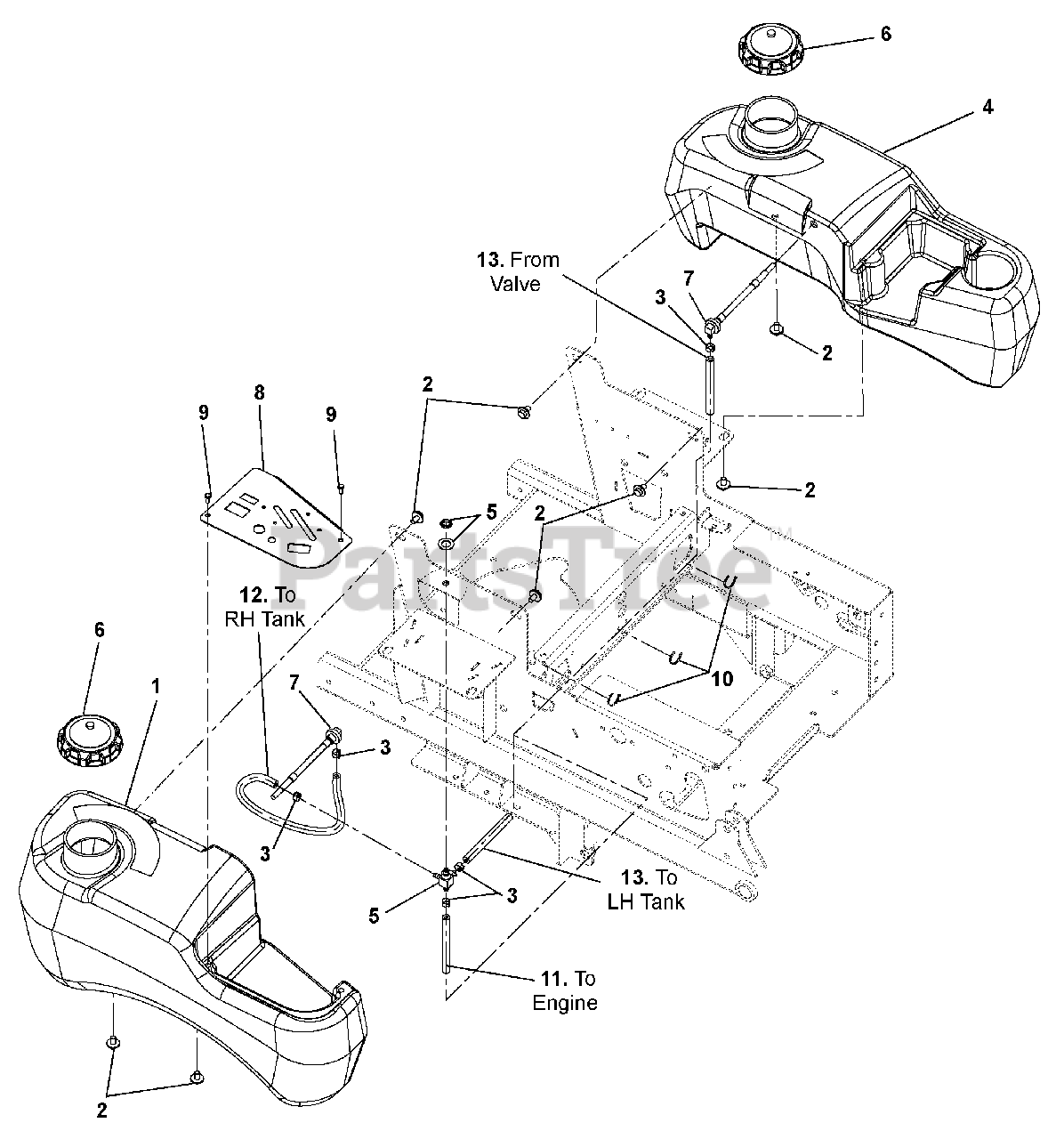

Fuel Tanks Parts Diagram

  • Title

1

Gravely 00445900

Tank, Right Hand Fuel

$413.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$4.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

Clamp, Fuel Line

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00191100

Tank, Left Hand Fuel

$305.99

$

Usually ships in 4-12 days

0

5

Gravely 09258200

Valve, Fuel

$51.99

$

In Stock, Qty 8

0

6

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

$30.99

$

In Stock, Qty 13

0

7

Gravely 03900300

Assembly, Medium Tank Fuel Pick-up
(Superseded to 04320900)

$43.99

$

In Stock, Qty 15

0

8

Gravely 00453951

Panel, Control

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 06100137

Screw, Machine 10-24 x .50

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 07517300

Cable Tie

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.99

$

In Stock, Qty 20+

0

12

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.99

$

In Stock, Qty 20+

0

13

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06900336

Throttle (not shown)

Note: (not shown)

$83.99

$

Usually ships in 4-12 days

0

15

Gravely 06900319

Cable (not shown)

Note: (not shown)

$50.99

$

Usually ships in 4-12 days

0
