991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Engine And Clutch Parts Diagram

48" Zero-Turn Mower, Kawasaki

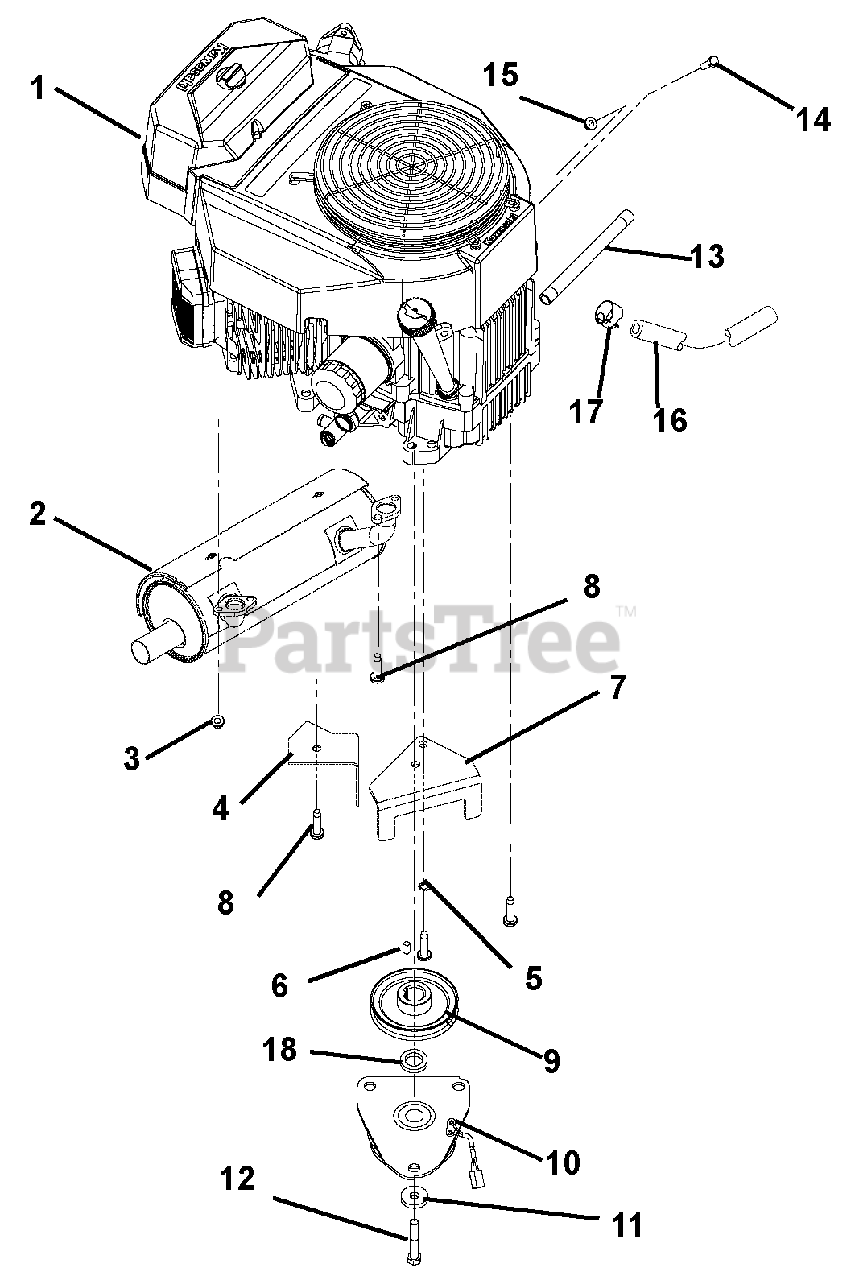

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200523

ENGINE, KAWASAKI FR691 (24HP)

Note: (068, 069)

$

$

Not available

Gravely 08200524

ENGINE, KAWASAKI FR730 (26HP)

Note: (070)

$

$

Not available

2

Gravely 03989000

MUFFLER, KAWASAKI FX 24/26HP

$184.99

$

In Stock, only 1 left!

0

3

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 03772951

GUARD, HD CLUTCH WIRE

$33.99

$

In Stock, only 1 left!

0

5

Gravely 06308700

@WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

In Stock, only 2 left!

0

6

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, only 1 left!

0

7

Gravely 03766851

ANCHOR - OGURA CLUTCH - HD

$38.99

$

In Stock, only 1 left!

0

8

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.99

$

In Stock, only 3 left!

0

9

Gravely 07331767

PULLEY, 4.50 OD X 1.002 ENGINE

$118.99

$

In Stock, only 2 left!

0

10

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$284.99

$

In Stock, only 1 left!

0

11

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 14

0

12

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

$7.49

$

In Stock, Qty 8

0

13

Gravely 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

15

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 05500202

SPACER 1.002ID X 1.75 OD X.266

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0
