991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Frame Parts Diagram

48" Zero-Turn Mower, Kawasaki

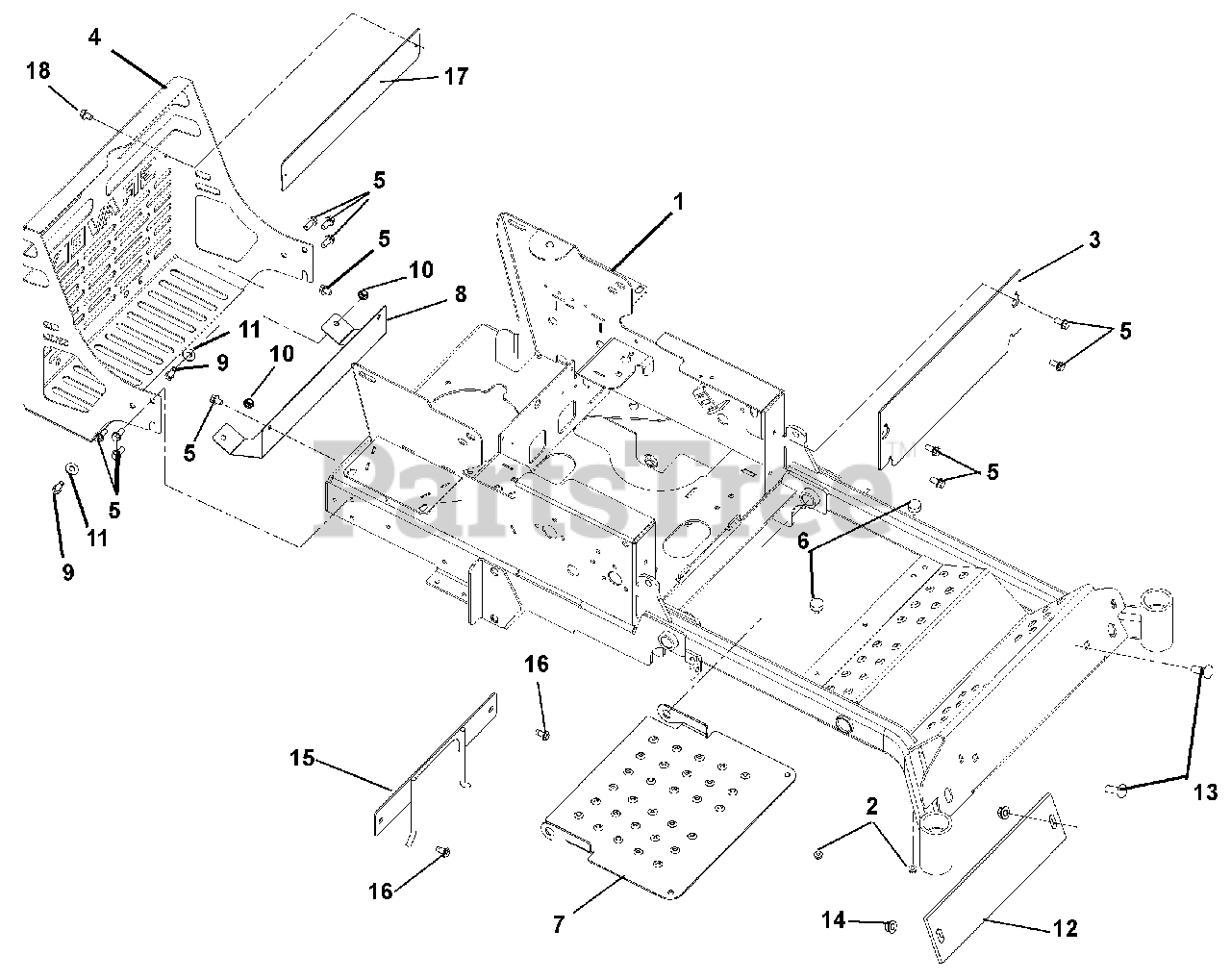

Frame Parts Diagram

  • Title

1

Gravely 03975051

WLDMT, 48" HD FRAME

Note: (068)

$1739.99

$

Usually ships in 4-12 days

0

Gravely 03974951

WLDMT, 52/60" HD FRAME

Note: (069, 070)

$2106.99

$

Usually ships in 4-12 days

0

2

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 02989053

KICK PLATE - RED

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 03994551

BUMPER, GRAVELY HD

$167.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

7

Gravely 00298953

PANEL, INSPECTION

$

$

Not available

8

Gravely 00462351

SHIELD - HEAT - CZ PROD

$49.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 01922853

COUNTERWEIGHT CZ FRONT - RED

Note: (068)

$37.99

$

Usually ships in 4-12 days

0

13

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

Note: (068)

$3.99

$

In Stock, Qty 5

0

14

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

Note: (068)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$28.99

$

Usually ships in 4-12 days

0

16

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03948251

BUMPER BACKER PLATE - BLACK

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
