991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Transmission Parts Diagram

48" Zero-Turn Mower, Kawasaki

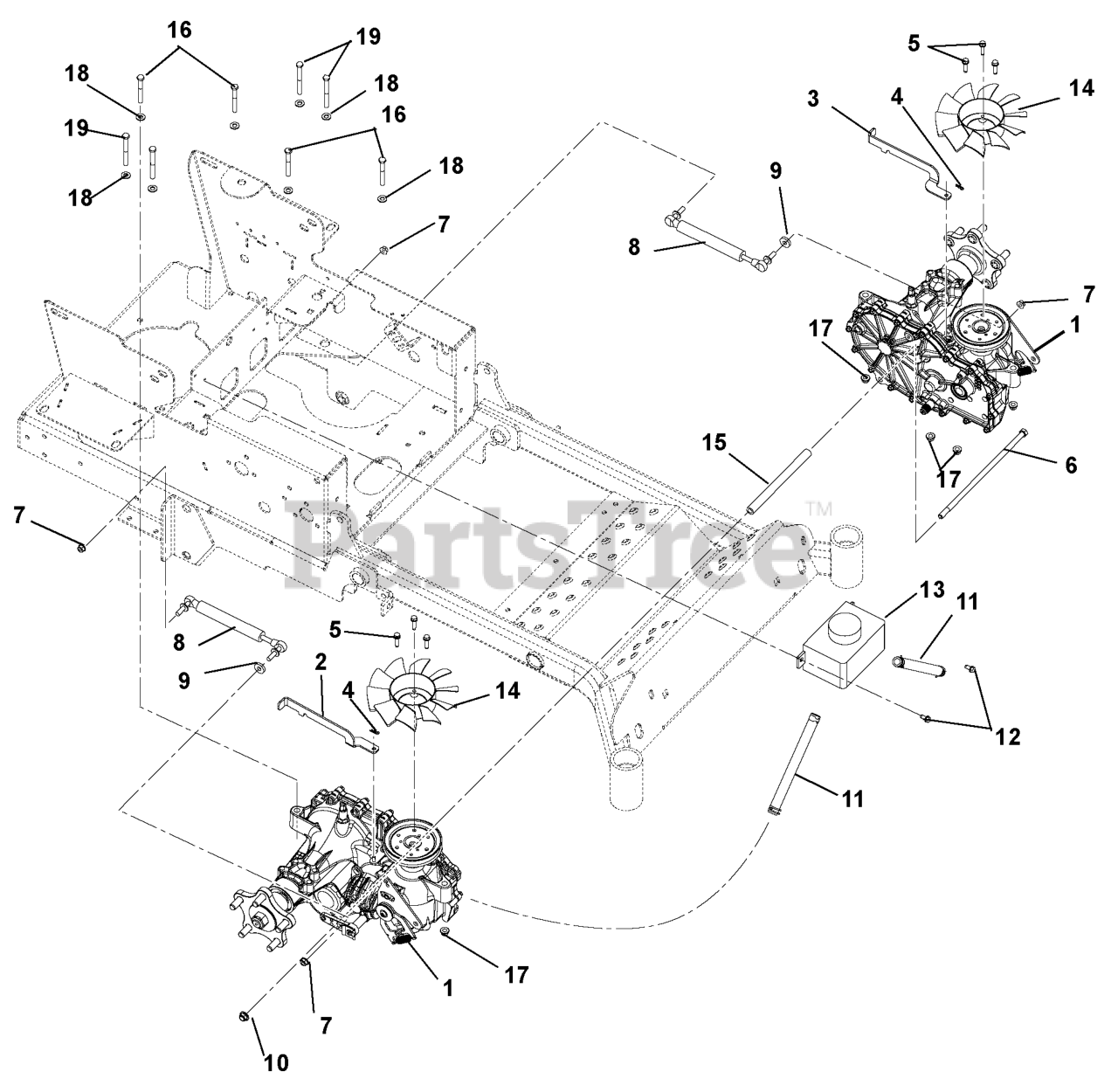

Transmission Parts Diagram

  • Title

1

Gravely 03283700

TRANSAXLE, 3100 SERIES - LH
(Superseded to 04827700)

Note: (page 14)

$1571.99

$

Usually ships in 4-12 days

0

Gravely 03283600

TRANSAXLE, 3100 SERIES - RH
(Superseded to 04827800)

Note: (page 16)

$1577.99

$

Usually ships in 4-12 days

0

2

Gravely 03282851

RH DUMP VALVE LEVER - BLACK

$31.99

$

In Stock, only 1 left!

0

3

Gravely 03282951

LH DUMP VALVE LEVER - BLACK

$31.99

$

Usually ships in 4-12 days

0

4

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

5

Gravely 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 05901315

BLT HEX, .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

$7.99

$

In Stock, Qty 8

0

7

Gravely 06500639

NUT, FLG PATCH M8-1.25 BLKZC

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 00188700

DAMPER

$82.99

$

In Stock, only 2 left!

0

9

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03251900

ASM, HYDRO OVERFLOW TANK HOSE

$17.99

$

In Stock, Qty 6

0

12

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 02958700

TANK, EXPANSION

$31.99

$

In Stock, only 3 left!

0

14

Gravely 03283500

FAN, 2800 SERIES COOLING

$23.99

$

In Stock, Qty 10

0

15

Gravely 03367200

SPCR,.406 ID X .630 OD X 7.724

$14.99

$

In Stock, Qty 7

0

16

Gravely 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 5

0
