991068 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Wheels Parts Diagram

48" Zero-Turn Mower, Kawasaki

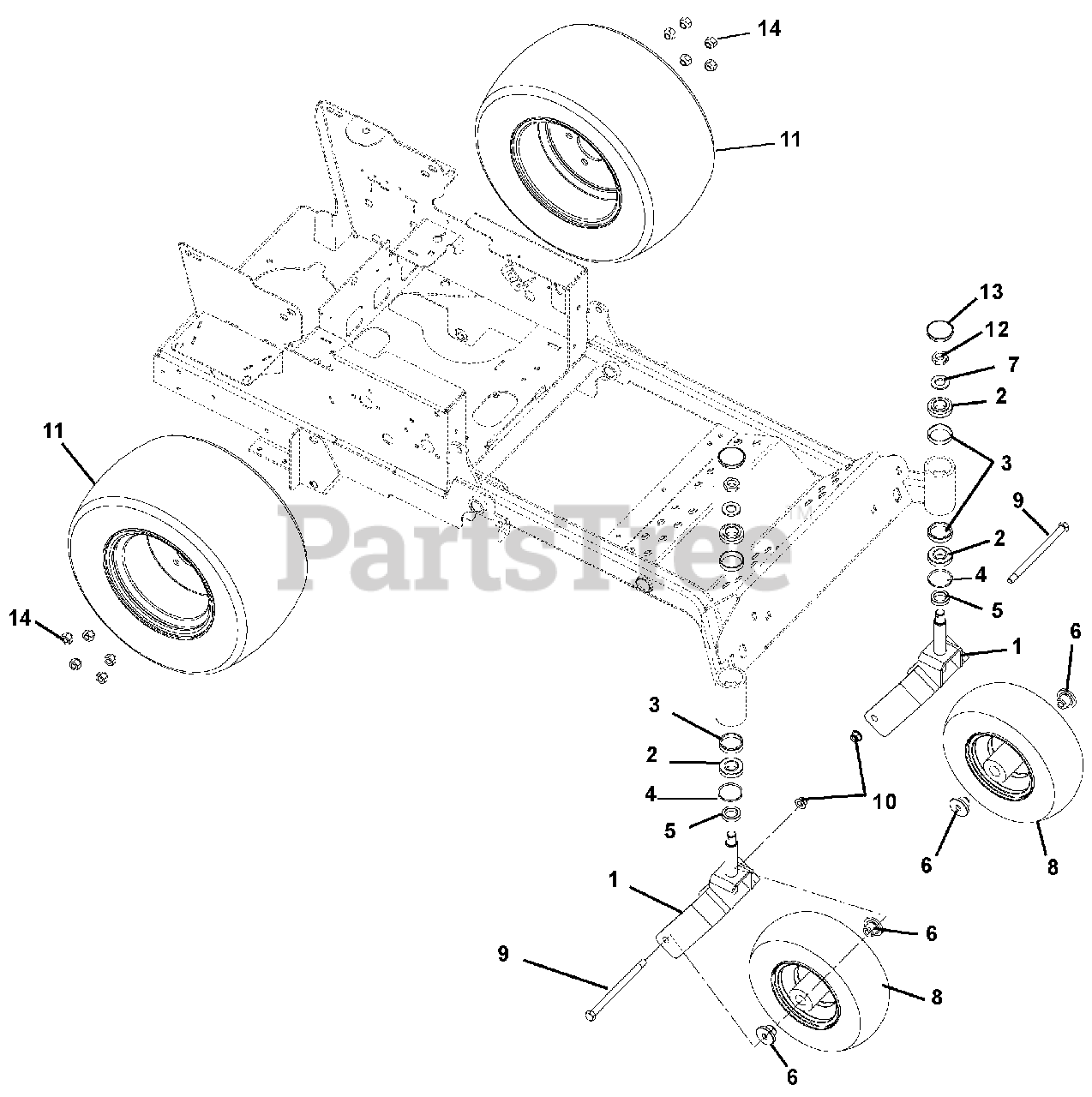

Wheels Parts Diagram

  • Title

1

Gravely 00490253

WLDMT, FORK

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$18.99

$

In Stock, Qty 7

0

3

Gravely 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 13

0

4

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 18

0

5

Gravely 00531500

SPACER 1.005X1.5075X.375

$7.49

$

In Stock, Qty 9

0

6

Gravely 00675300

SPACER, FRONT WHEEL

$6.99

$

In Stock, only 2 left!

0

7

Gravely 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

8

Gravely 07100218

TIRE/WHEEL ASSY, 13X5.00-6
(Superseded to 07101111)

$113.99

$

Usually ships in 4-12 days

0

Gravely 07100219

TIRE, 13X5.00-6
(Superseded to 07101609)

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

10

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07100837

TIRE/WHEEL ASSY, 20X10-8
(Superseded to 59103000)

$465.99

$

Usually ships in 4-12 days

0

11

Gravely 07101340

TIRE, 20X10.00-8

Note: Component Service Part ( Verify Tire Size on Tire, Tire Tread Is Different Then Original)

$148.99

$

Usually ships in 4-12 days

0

11

Gravely 07100214

TIRE/WHEEL ASSY, 20X10.00-10

Note: Verify Tire Size on Tire

$193.99

$

Usually ships in 4-12 days

0

11

Gravely 07100215

TIRE, 20X10.00-10

Note: Component Service Part (Verify Tire Size on Tire)

$125.99

$

Usually ships in 4-12 days

0

12

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, Qty 8

0

13

Gravely 00456800

CAP, DUST

$12.99

$

In Stock, Qty 9

0

14

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 20+

0
