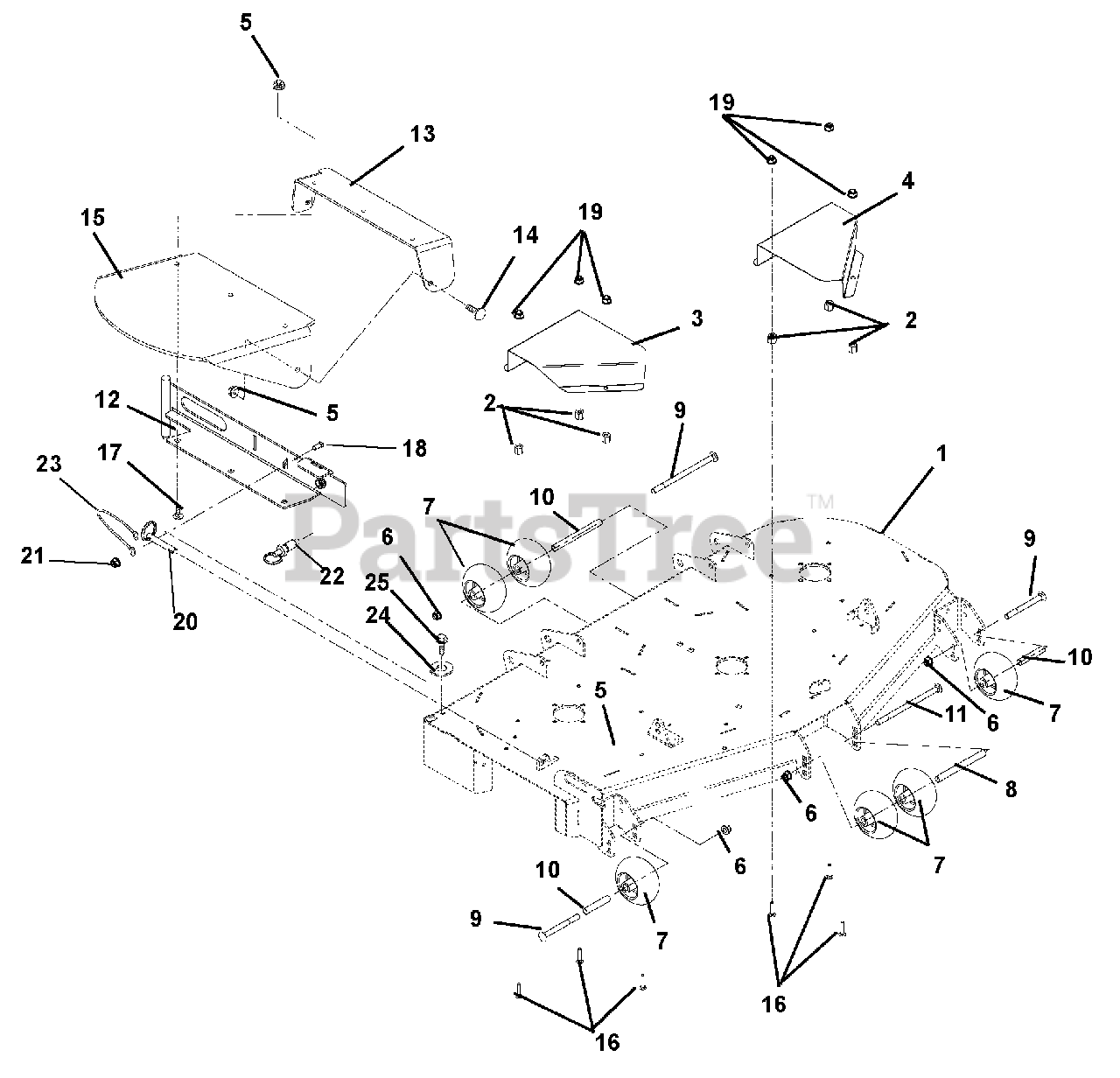

991069 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

52" Zero-Turn Mower, Kawasaki

Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

  • Title

1

Gravely 04077653

Weldment, 60" Side Discharge Deck (070)
(Superseded to 59102300)

Note: (070)

$1318.99

$

Usually ships in 4-12 days

0

1

Gravely 04077553

Weldment, 52" Side Discharge Deck (069)
(Superseded to 59102400)

Note: (069)

$1318.99

$

Usually ships in 4-12 days

0

1

Gravely 04077453

48" Side Discharge Deck Weldment (068)
(Superseded to 59102500)

Note: (068)

$1161.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03982253

Guard, 60" Right Hand Spindle Sheave (070)

Note: (070)

$58.99

$

In Stock, only 3 left!

0

3

Gravely 04051253

Guard, 48"-52" Right Hand Spindle Sheave Guard (068, 069)

Note: (068, 069)

$70.99

$

Usually ships in 4-12 days

0

4

Gravely 03977253

Guard, 60" Left Hand Spindle Sheave (070)

Note: (070)

$85.99

$

Usually ships in 4-12 days

0

4

Gravely 03977153

Guard, 44"-52" Left Hand Spindle Sheave (068, 069)

Note: (068, 069)

$93.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

Anti-Scalp Wheel (068)

Note: (068)

$13.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

Anti-Scalp Wheel (069, 070)

Note: (069, 070)

$13.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

Spacer (068)

Note: (068)

$22.99

$

In Stock, Qty 20+

0

8

Gravely 00473700

Spacer (069, 070)

Note: (069, 070)

$19.99

$

In Stock, Qty 20+

0

9

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 (068)
(Superseded to 06200505)

Note: (068)

$

$

Not available

9

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 (069, 070)
(Superseded to 06200505)

Note: (069, 070)

$

$

Not available

10

Gravely 00473700

Spacer, .510 x .625 x 3.35 (068)

Note: (068)

$19.99

$

In Stock, Qty 20+

0

10

Gravely 00473700

Spacer, .510 x .625 x 3.35 (069, 070)

Note: (069, 070)

$19.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50 (068)
(Superseded to 06200321)

Note: (068)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50 (069, 070)
(Superseded to 06200321)

Note: (069, 070)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 00472553

Weldment, 52"-60" Discharge Chute Mounting (070)
(Superseded to 04727953)

Note: (070)

$131.99

$

In Stock, only 1 left!

0

12

Gravely 00472453

Weldment, 48" Discharge Chute Mounting (068)
(Superseded to 04757453)

Note: (068)

$115.99

$

Usually ships in 4-12 days

0

13

Gravely 00472353

Rubber Discharge Chute Support

$127.99

$

Usually ships in 4-12 days

0

14

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

15

Gravely 00377800

Chute, Rubber Discharge

$93.99

$

In Stock, only 2 left!

0

16

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

17

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

19

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 01593500

Pin, Spring Ball .375OD x 1.50

$6.49

$

In Stock, Qty 12

0

21

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

22

Gravely 0700037

Pull Pin

$

$

Not available

23

Gravely 06900321

Cable, 6.00 Lanyard - Nylon

$6.49

$

In Stock, only 2 left!

0

24

Gravely 07500009

Bumper, Recessed 1.50 x .63 W/.31 Thru Hole

$6.49

$

In Stock, only 2 left!

0

25

Gravely 07414400

Screw, Tapping .31-18 x .75 Hex Washer Head
(Superseded to 07400127)

$1.99

$

In Stock, only 4 left!

0
