991069 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

52" Zero-Turn Mower, Kawasaki

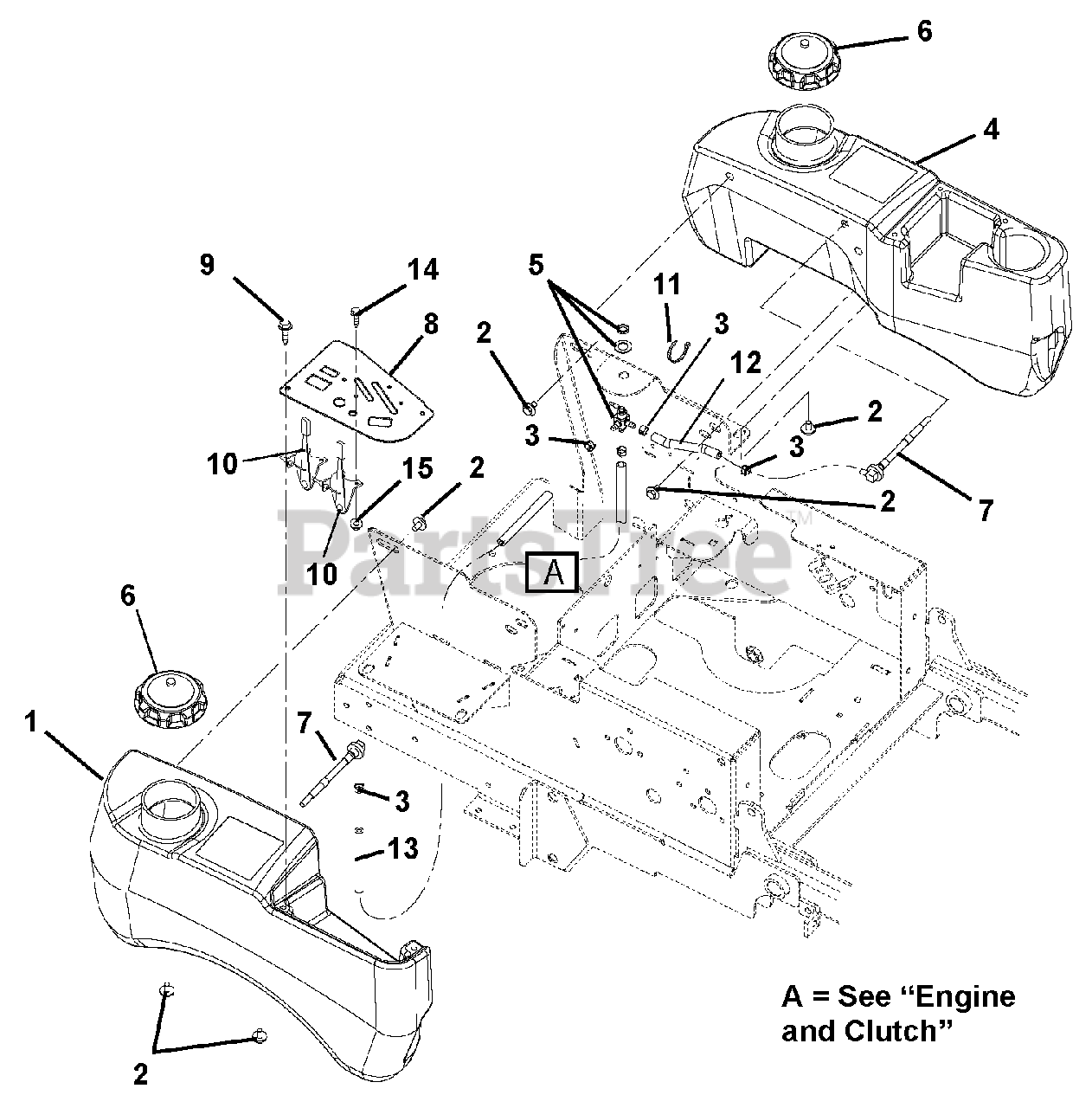

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 03973100

Tank, Gas- Right Hand

$

$

Not available

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

3

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 12

0

4

Gravely 03973200

Tank, Left Hand Fuel

$299.99

$

Usually ships in 4-12 days

0

5

Gravely 09258200

Valve, Fuel

$48.99

$

In Stock, Qty 6

0

6

Gravely 03859100

Cap, Fuel

$29.99

$

In Stock, only 3 left!

0

7

Gravely 03900400

Assembly, Small Tank Fuel Pick-up
(Superseded to 04320900)

$40.99

$

In Stock, Qty 18

0

8

Gravely 04041751

Panel, Control

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 06100211

Screw, Machine 10-24 x .50

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06900422

Cable, Control

$43.99

$

In Stock, Qty 7

0

11

Gravely 07517300

Cable Tie

$

$

Not available

12

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
