991071 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

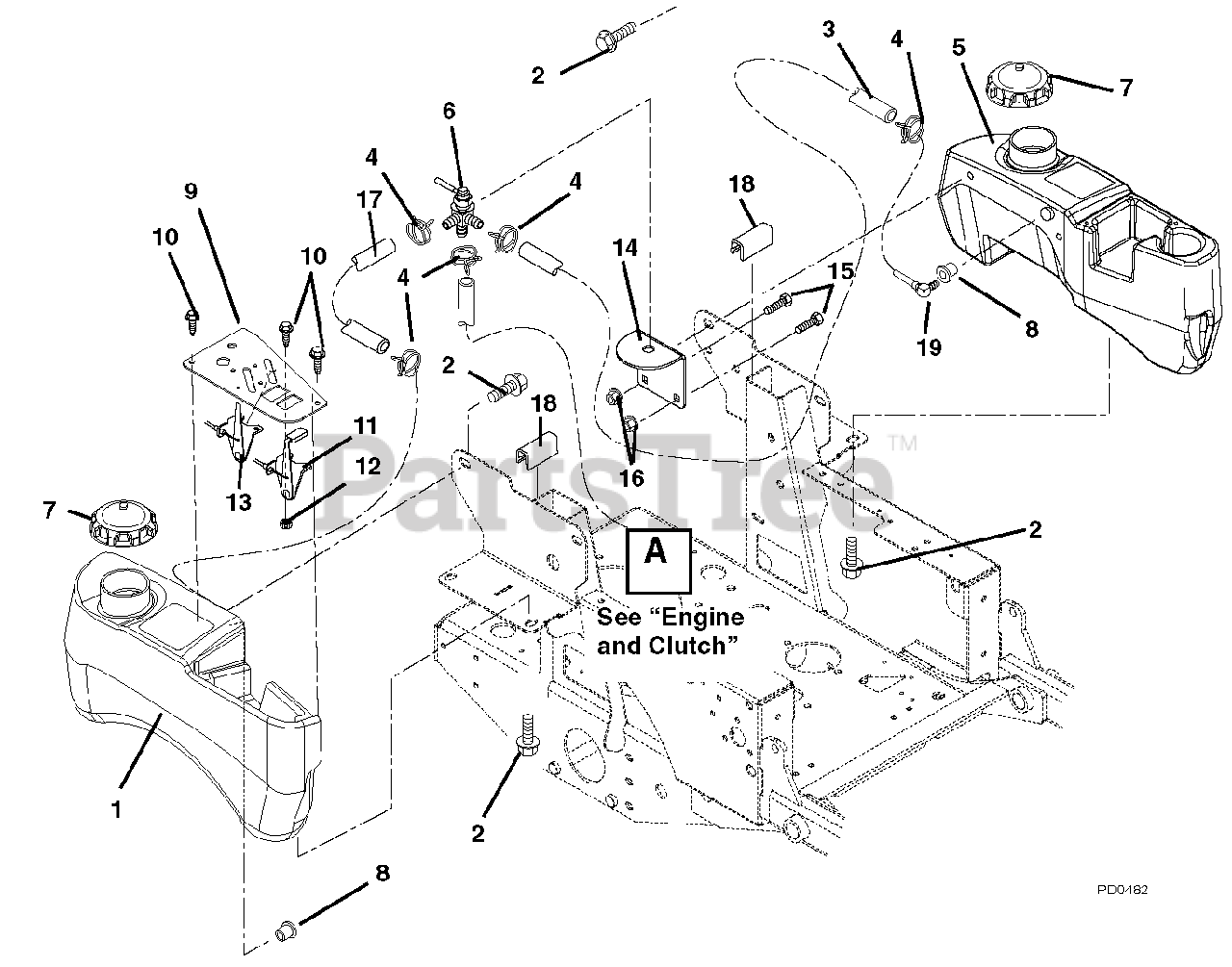

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 03973100

Tank, Gas- Right Hand

$298.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 03278100

Hose, Gas Line .25" I.D.

$0.99

$

In Stock, Qty 20+

0

4

Gravely 03278800

Hose, Clamp

$1.49

$

In Stock, Qty 6

0

5

Gravely 03973200

Tank, Left Hand Fuel

$293.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

Valve, Fuel

$45.99

$

In Stock, Qty 9

0

7

Gravely 03859100

Cap, Fuel

$28.99

$

In Stock, only 2 left!

0

8

Gravely 00387300

Grommet (Orange color will not replace black color)

Note: (Orange color will not replace black color)

$7.99

$

In Stock, Qty 10

0

9

Gravely 04041751

Panel, Control

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06900002

Cable, Throttle Choke

$51.99

$

Usually ships in 4-12 days

0

12

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

13

Gravely 06949500

Cable, Choke

$39.99

$

Usually ships in 4-12 days

0

14

Gravely 00361951

Bracket, Fuel Valve Mounting

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

16

Gravely 06545400

Nut, Nyloc Flange 5/16-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

17

Gravely 03278100

Hose, Gas Line .25" I.D.

$0.99

$

In Stock, Qty 20+

0

18

Gravely 00918200

Cowl Strip 1.75" Long

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 03900400

Assembly, Large Tank Fuel Pick-up
(Superseded to 04320900)

$39.99

$

In Stock, Qty 12

0
